2N7002K

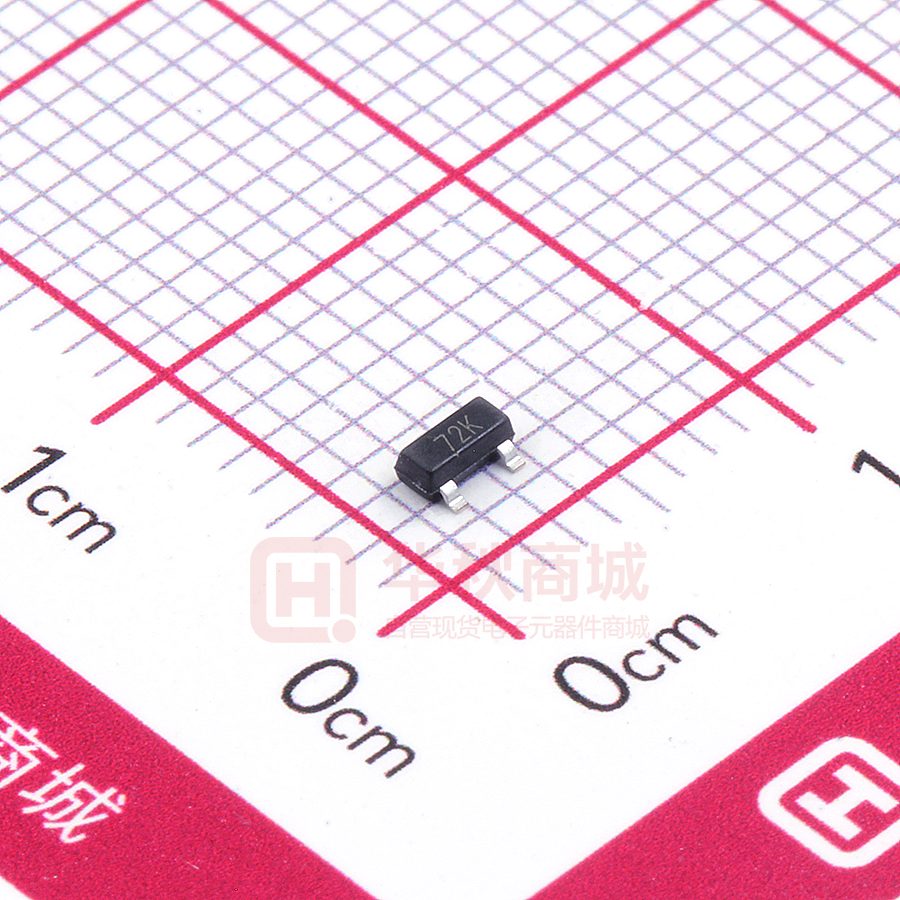

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOT-23 Plastic-Encapsulate MOSFETs 2N7002K N-channel MOSFET V(BR)DSS ID RDS(on)MAX SOT-23 2.5Ω@10V 60 V 3 340mA 3Ω@4.5V 1. GATE 2. SOURCE 1 2 3. DRAIN FEATURE z High density cell design for Low RDS（on） z Voltage controlled small signal switch z Rugged and reliable z High saturation current capability z ESD protected APPLICATION z Load Switch for Portable Devices z DC/DC Converter M$5.,1* Equivalent circuit 72K=Device code Solid dot = Green molding compound device,if none, the normal device MOSFET MAXIMUM RATINGS (Ta = 25°C unless otherwise noted) Parameter Symbol VDS VGS Value Drain-Source voltage  Gate-Source voltage Unit 60 V ±20 V ID Drain Current 340 mA PD Power Dissipation 0.35 W -55~+150 ℃ TJ,Tstg Operation Junction and Storage Temperature Range RθJA Thermal Resistance fromJunction to Ambient www.jscj-elec.com 1 357 ℃ /W Rev. - 2.1 MOSFET ELECTRICAL CHARACTERISTICS Ta =25 ℃ unless otherwise specified Parameter Symbol Test Condition Min Typ Max Units Static Characteristics Drain-Source Breakdown Voltage Gate Threshold Voltage* Zero Gate Voltage Drain Current Gate –Source leakage current Drain-Source On-Resistance* VDS VGS = 0V, ID =250µA 60 VGS(th) VDS =VGS, ID =1mA 1 IDSS VDS =48V,VGS = 0V IGSS1 V 2.5 V 1 µA VGS =±20V, VDS = 0V ±10 µA IGSS2 VGS =±10V, VDS = 0V ±200 nA IGSS3 VGS =±5V, VDS = 0V ±100 nA RDS(on) 1.3 VGS = 4.5V, ID =200mA 1.1 3 Ω VGS =10V,ID =500mA 0.9 2.5 Ω 1.5 V Diode Forward Voltage VSD VGS=0V, IS=300mA Recovered charge Qr VGS=0V,IS=300mA,VR=25V, dls/dt=-100A/µS 30 nC Dynamic Characteristics** Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss VDS =10V,VGS =0V,f =1MHz 40 pF 30 pF 10 pF 10 ns 15 ns Switching Characteristics** Turn-On Delay Time td(on) Turn-Off Delay Time td(off) Reverse recovery Time trr VGS=10V,VDD=50V,RG=50Ω, RGS=50Ω, RL=250Ω VGS=0V,IS=300mA,VR=25V, dls/dt=-100A/µS 30 ns GATE-SOURCE ZENER DIODE Gate-Source Breakdown Voltage BVGSO Igs=±1mA (Open Drain) ±21.5 ±30 V Notes : *Pulse Test : Pulse Width ≤300µs, Duty Cycle ≤2%. **These parameters have no way to verify. www.jscj-elec.com 2 Rev. - 2.1 Typical Characteristics Output Characteristics Transfer Characteristics 1.2 1.2 Ta=25℃ VDS=3V VGS=5V,6V,7V,10V Pulsed Pulsed (A) (A) VGS=4V DRAIN CURRENT DRAIN CURRENT ID ID 0.8 VGS=3V 0.4 0.0 0.8 Ta=100℃ Ta=25℃ 0.4 0.0 0 1 2 3 4 DRAIN TO SOURCE VOLTAGE VDS 5 0 (V) 2 4 6 GATE TO SOURCE VOLTAGE VGS 8 (V) RDS(ON) —— VGS RDS(ON) —— ID 5 10 Ta=25℃ Ta=25℃ Pulsed Pulsed RDS(ON) 3 ON-RESISTANCE ON-RESISTANCE RDS(ON) ( ) 8 ( ) 4 2 VGS=4.5V 1 ID=500mA 6 4 2 VGS=10V 0 0 0 300 600 900 DRAIN CURRENT ID 1200 1500 0 (mA) 2 4 8 VGS 10 (V) Threshold Voltage IS —— VSD 2 1 6 GATE TO SOURCE VOLTAGE 1.8 Pulsed VTH 0.1 Ta=100℃ THRESHOLD VOLTAGE SOURCE CURRENT IS (A) (V) 1.6 Ta=25℃ 0.01 1.4 ID=250uA 1.2 1.0 0.8 0.6 1E-3 0.0 0.2 0.4 0.6 0.8 1.0 SOURCE TO DRAIN VOLTAGE www.jscj-elec.com 1.2 1.4 0.4 25 1.6 VSD (V) 50 75 JUNCTION TEMPERATURE 3 100 Tj 125 ( ℃) Rev. - 2.1 SOT-23 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° SOT-23 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 4 Rev. - 2.1 SOT-23 Tape and Reel SOT-23 Tape and reel SOT-23 Embossed Carrier Tape P0 d P1 Packaging Description: SOT-23 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). B W A F E C A A P A-A Dimensions are in millimeter Pkg type A B C d E F P0 P P1 W SOT-23 3.15 2.77 1.22 Ø1.50 1.75 3.50 4.00 4.00 2.00 8.00 SOT-23 Tape Leader and Trailer Trailer Tape Leader Tape 100±2 Empty Pockets Components 50±2 Empty Pockets SOT-23 Reel D I G W2 3000 H 2500 2000 1500 1000 D2 D1 500 W1 Dimensions are in millimeter Reel Option D D1 D2 G H I W1 W2 7''Dia Ø178.00 54.40 13.00 R78.00 R25.60 R6.50 9.50 12.30 G.W.(kg) REEL Reel Size Box Box Size(mm) Carton Carton Size(mm) 3000 pcs 7 inch 30,000 pcs 203×203×195 120,000 pcs 438×438×220 www.jscj-elec.com 5 Rev. - 2.1
