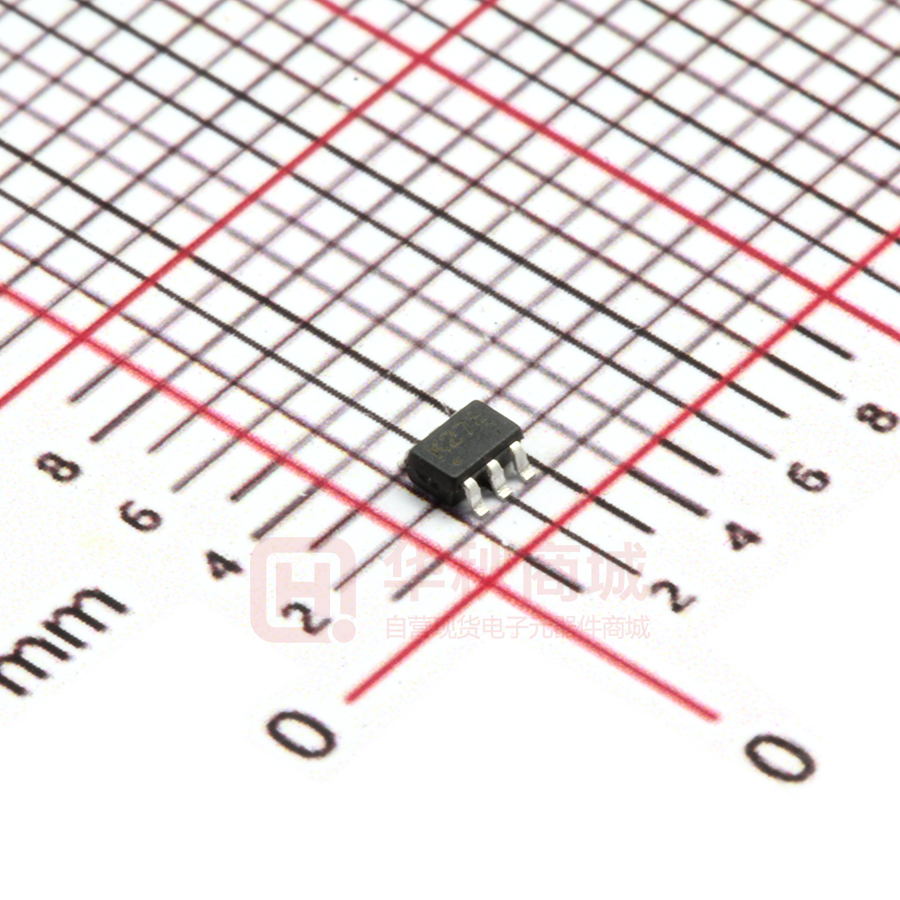

2N7002KDW

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-363 Plastic-Encapsulate MOSFETS 2N7002KDW N-channel MOSFET V(BR)DSS ID RDS(on)MAX SOT-363  5Ω@10V  6 340mA 5.3Ω@4.5V    60 V 5 4 1 2 3 FEATURE APPLICATION High density cell design for Low RDS（on） Voltage controlled small signal switch Rugged and reliable High saturation current capability ESD protected z z z z z z Load Switch for Portable Devices z DC/DC Converter Equivalent Circuit MARKING 72K MOSFET MAXIMUM RATINGS (Ta = 25°C unless otherwise noted) Symbol Parameter Value Unit VDS Drain-Source voltage 60 V VGS Gate-Source voltage ±20 V ID Drain Current 340 mA PD Power Dissipation 0.15 W TJ Junction Temperature 150 ℃ Tstg Storage Temperature -55-150 ℃ RθJA Thermal Resistance fromJunction to Ambient 833 ℃ /W www.cj-elec.com 1 H,Aug,2016 MOSFET ELECTRICAL CHARACTERISTICS Ta =25 ℃ unless otherwise specified Parameter Symbol Test Condition Min Typ Max Units Static Characteristics Drain-Source Breakdown Voltage VGS = 0V, ID =250µA 60 VGS(th) VDS =VGS, ID =1mA 1 Zero Gate Voltage Drain Current IDSS VDS =48V,VGS = 0V Gate –Source leakage current IGSS1 VGS =±20V, VDS = 0V Drain-Source On-Resistance* RDS(on) Gate Threshold Voltage* VDS V 1.3 2.5 V 1 µA ±10 µA VGS = 4.5V, ID =200mA 1.1 5.3 Ω VGS =10V,ID =500mA 0.9 5 Ω 1.5 V Diode Forward Voltage VSD VGS=0V, IS=300mA Recovered charge Qr VGS=0V,IS=300mA,VR=25V, dls/dt=-100A/µs 30 nC Dynamic Characteristics** Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss VDS =10V,VGS =0V,f =1MHz 40 pF 30 pF 10 pF 10 ns 15 ns Switching Characteristics** Turn-On Delay Time td(on) Turn-Off Delay Time td(off) Reverse recovery Time trr VGS=10V,VDD=50V,RG=50Ω, RGS=50Ω, RL=250Ω VGS=0V,IS=300mA,VR=25V, dls/dt=-100A/µs 30 ns GATE-SOURCE ZENER DIODE Gate-Source Breakdown Voltage BVGSO Igs=±1mA (Open Drain) ±21.5 ±30 V Notes : *Pulse Test : Pulse Width ≤300µs, Duty Cycle ≤2%. **These parameters have no way to verify. www.cj-elec.com 2 H,Aug,2016 Typical Characteristics Output Characteristics Transfer Characteristics 1.2 1.2 Ta=25℃ VDS=3V VGS=5V,6V,7V,10V Pulsed Pulsed (A) (A) VGS=4V DRAIN CURRENT DRAIN CURRENT ID ID 0.8 VGS=3V 0.4 0.0 0.8 Ta=100℃ Ta=25℃ 0.4 0.0 0 1 2 3 4 DRAIN TO SOURCE VOLTAGE VDS 5 0 (V) 2 4 6 GATE TO SOURCE VOLTAGE VGS 8 (V) RDS(ON) —— VGS RDS(ON) —— ID 10 5 Ta=25℃ Ta=25℃ Pulsed Pulsed 8 ( ) RDS(ON) 3 ON-RESISTANCE ON-RESISTANCE RDS(ON) ( ) 4 2 VGS=4.5V ID=500mA 6 4 2 1 VGS=10V 0 0 0 300 600 900 DRAIN CURRENT ID 1200 1500 0 (mA) 2 4 8 VGS 10 (V) Threshold Voltage IS —— VSD 2 1 6 GATE TO SOURCE VOLTAGE 1.8 Pulsed VTH 0.1 Ta=100℃ THRESHOLD VOLTAGE SOURCE CURRENT IS (A) (V) 1.6 Ta=25℃ 0.01 1.4 ID=250uA 1.2 1.0 0.8 0.6 1E-3 0.0 0.2 0.4 0.6 0.8 1.0 SOURCE TO DRAIN VOLTAGE 1.2 VSD (V) 1.4 1.6 0.4 25 50 75 JUNCTION TEMPERATURE 100 Tj 125 ( ℃)  3 H,Aug,2016 6273DFNDJH2XWOLQH'LPHQVLRQV Symbol A A1 A2 b c D E E1 e e1 L L1  Dimensions In Millimeters Min Max 0.900 1.100 0.000 0.100 0.900 1.000 0.150 0.350 0. 0.150 2.000 2.200 1.150 1.350 2.150 2.4 0.650 TYP 1.200 1.400 0.525 REF 0.260 0.460 0° 8° Dimensions In Inches Min Max 0.035 0.043 0.000 0.004 0.035 0.039 0.006 0.014 0.00 0.006 0.079 0.087 0.045 0.053 0.085 0.09 0.026 TYP 0.047 0.055 0.021 REF 0.010 0.018 0° 8° 627 6XJJHVWHG3DG/D\RXW  ZZZFMHOHFFRP H,Aug,2016 6277DSHDQG5HHO SOT-363 Tape and reel SOT-363 Embossed Carrier Tape P0 C d P1 Packaging Description: SOT-363 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). B F W E A P A A A-A Dimensions are in millimeter Pkg type A B C d E F P0 P P1 W SOT-363 2.25 2.55 1.20 Ø1.50 1.75 3.50 4.00 4.00 2.00 8.00 SOT-363 Tape Leader and Trailer Leader Tape Trailer Tape 50±2 Empty Pockets 100±2 Empty Pockets Components SOT-363 Reel D I G W2 3000 H 2500 2000 1500 1000 D2 D1 500 W1 Dimensions are in millimeter Reel Option D D1 D2 G H I W1 W2 7''Dia Ø178.00 54.40 13.00 R78.00 R25.60 R6.50 9.50 12.30 G.W.(kg) REEL Reel Size Box Box Size(mm) Carton Carton Size(mm) 3000 pcs 7 inch 30,000 pcs 203×203×195 120,000 pcs 438×438×220 ZZZFMHOHFFRP5 H,Aug,2016
