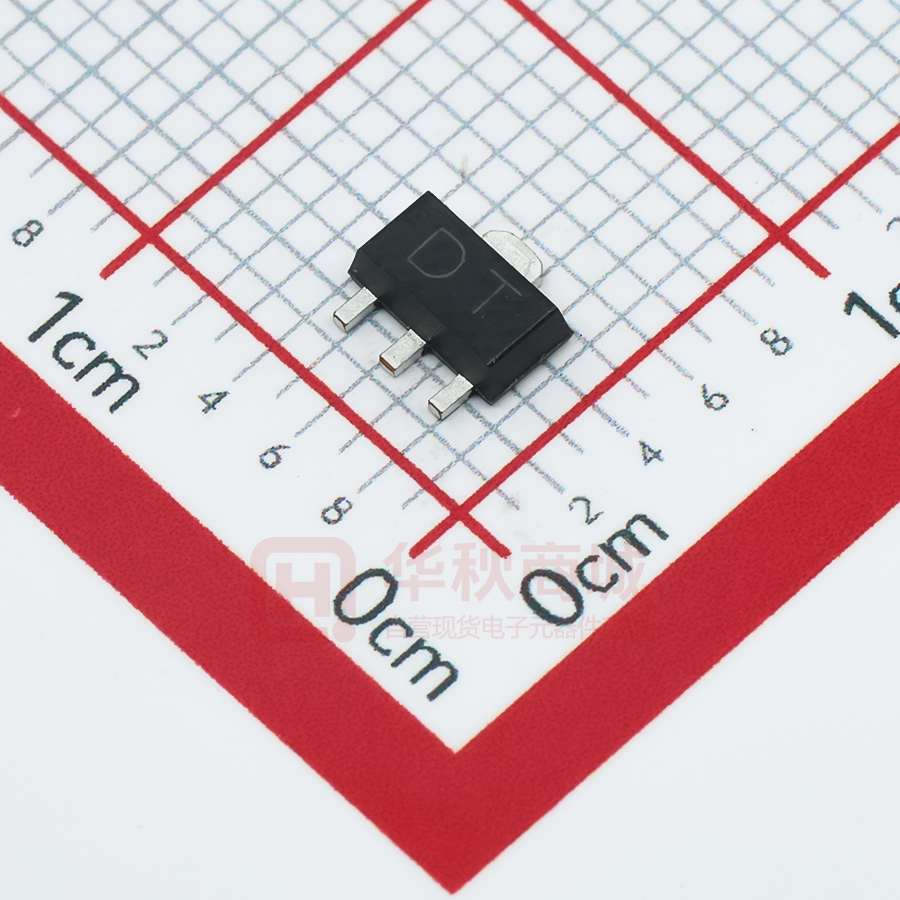

2SD2391

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD. SOT-89-3L Plastic-Encapsulate Transistors 2SD2391 TRANSISTOR (NPN) SOT-89-3L FEATURES Low VCE(sat) 1.BASE 123 2.COLLECTOR MARKING 3.EMITTER DT Solid dot = Green molding compound device. MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter Value Unit VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 60 V VEBO Emitter-Base Voltage 6 V IC Collector Current -Continuous 2 A PC Collector Power Dissipation 0.5 W TJ,Tstg Operation Junction and Storage Temperature Range -55-150 ℃ ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Symbol Test conditions Min Typ Max Unit Collector-base breakdown voltage V(BR)CBO IC=50μA,IE=0 60 V Collector-emitter breakdown voltage V(BR)CEO IC =1mA,IB=0 60 V Emitter-base breakdown voltage V(BR)EBO IE=50μA,IC=0 6 V Collector cut-off current ICBO VCB=50V,IE=0 0.1 μA Emitter cut-off current IEBO VEB=5V,IC=0 0.1 μA hFE(1) VCE=2V,IC=0.5A 120 hFE(2) VCE=2V,IC=1.5A 45 VCE(sat) IC=1A,IB=50mA 270 DC current gain Collector-emitter saturation voltage Transition frequency Output capacitance www.jscj-elec.com fT Cob 0.35 V VCE=2V,IC=0.5A, f=100MHz 210 MHz VCB=10V,IE=0, f=1MHz 21 pF 1 Rev. - 2.2 Typical Characteristics Static Characteristic VCE= 2V COMMON EMITTER Ta=25℃ 5mA IC 4.5mA 4mA 1.0 DC CURRENT GAIN COLLECTOR CURRENT hFE —— IC 400 hFE (A) 1.5 3.5mA 3.mA 2.5mA 0.5 2mA o Ta=100 C 300 200 o Ta=25 C 100 1.5mA 1mA IB=0.5mA 0.0 0 0 1 2 3 4 5 COLLECTOR-EMITTER VOLTAGE 1 10 VCEsat —— COLLECTOR-EMITTER SATURATION VOLTAGE VCEsat (mV) 400 800 Ta=25℃ 600 Ta=100℃ 400 100 COLLECTOR CURRENT (V) VCE VBEsat —— IC 1000 BASE-EMITTER SATURATION VOLTAGE VBEsat (mV) 6 IC (mA) 1 10 100 COLLECTOR CURRENT IC —— 2000 IC β=20 300 200 Ta=100℃ 100 Ta=25℃ 0 0.1 1000 2000 (mA) VBE 1000 Cob / Cib —— 1000 2000 100 IC (mA) VCB / VEB f=1MHz IE=0 / IC=0 50 o Ta=25 C (pF) IC (mA) o Cib C Ta=100 C CAPACITANCE COLLECTOR CURRENT 10 VCE=2V 100 10 Ta=25℃ 100 Cob 1 0.1 200 400 600 800 BASE-EMITTER VOLTAGE Pc 600 COLLECTOR POWER DISSIPATION Pc (mW) 1 COLLECTOR CURRENT 1000 2000 IC β=20 200 0.1 1000 —— 1000 10 0.1 1200 1 REVERSE VOLTAGE VBE(mV) 10 V 20 (V) Ta 500 400 300 200 100 0 0 25 50 75 AMBIENT TEMPERATURE www.jscj-elec.com 100 Ta 125 150 ( ℃) 2 Rev. - 2.2 SOT-89-3L Package Outline Dimensions Dimensions In Millimeters Max Min 1.400 1.600 0.320 0.520 0.400 0.580 0.350 0.440 4.400 4.600 1.550 REF. 2.300 2.600 3.940 4.250 1.500 TYP. 3.000 TYP. 0.900 1.200 Symbol A b b1 c D D1 E E1 e e1 L Dimensions In Inches Min Max 0.055 0.063 0.013 0.020 0.016 0.023 0.014 0.017 0.173 0.181 0.061 REF. 0.091 0.102 0.155 0.167 0.060 TYP. 0.118 TYP. 0.035 0.047 SOT-89-3L Suggested Pad Layout 1.40 0.5 2.8 1.8 1.50 0 . 80 80 NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 2.2 SOT-89-3L Tape and Reel www.jscj-elec.com 4 Rev. - 2.2
