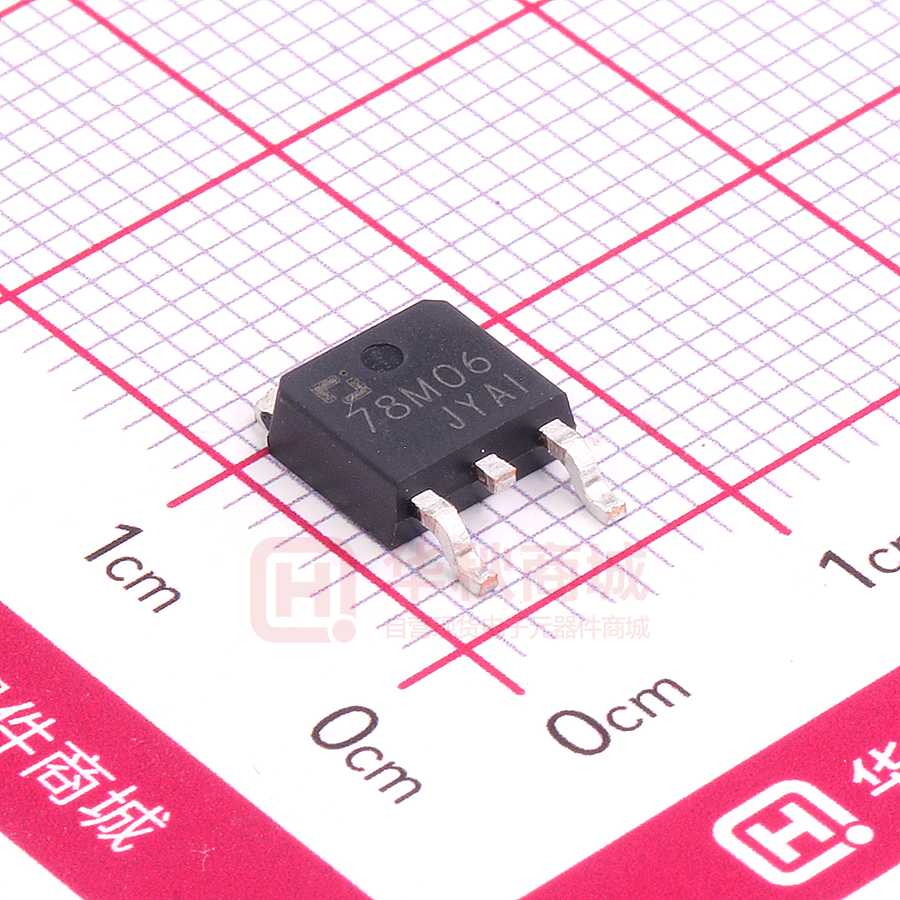

78M06

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD TO-251-3L/TO-252-2L Plastic-Encapsulate Regulators CJ78M06 Three-terminal positive voltage regulator TO-251-3L TO-252-2L FEATURES Maximum output current IOM: 0.5 A Output voltage VO: 6V Continuous total dissipation 1.25 W PD: 123 1.IN 2.GND 3.OUT ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies unless otherwise specified) Parameter Symbol Input Voltage Value 25 Vi Operating Junction Temperature Range Storage Temperature Range Unit V TOPR 0-+125 ℃ TSTG -65-+150 ℃ ELECTRICAL CHARACTERISTICS AT SPECIFIED VIRTUAL JINCTION TEMPERATURE (Vi=11V, IO=350mA,Ci=0.33μF,Co=0.1μF, unless otherwise specified) Parameter Symbol Test conditions Min 25℃ Output Voltage Vo 8V≤V i≤21V, Io=5mA-350mA 0-125℃ Po≤ 15W Load Regulation ΔVo Line Regulation ΔVo Quiescent Current Iq Typ Max Unit 5.75 6 6.25 V 5.7 6 6.3 V Io=5mA-0.5A 25℃ 18 120 mV Io=5mA-200mA 25℃ 10 60 mV 8V≤V i≤25V, Io=200mA 25℃ 5 100 mV 9V≤V i≤25V, Io=200mA 25℃ 1.5 50 mV 25℃ 4.3 6 mA ΔIq 9V≤V i≤25V, Io=200mA 0-125℃ 0.8 mA ΔIq 5mA≤I O≤350mA 0-125℃ 0.5 mA Output Noise Voltage VN 10Hz≤ f ≤100KHz 25℃ Ripple Rejection RR 9V≤Vi≤19V,f=120Hz,Io=300mA Dropout Voltage Vd Io=350mA Short Circuit Current Isc Vi=11V Peak Current Ipk Quiescent Current Change TYPICAL APPLICATION Vi 1 45 uV 80 dB 25℃ 2 V 25℃ 270 mA 25℃ 0.5 A 0-125℃ 3 Vo CJ78M06 UTC Ci 0.33μF 2 59 0.5A Co 0.1μF C,Apr,2014 Typical Characterisitics Output Dropout Characteristics Characteristics 7 7.2 IO=0mA TJ=25℃ 6.8 Pulsed 6.4 (V) (V) 6 5 6.0 VO OUTPUT VOLTAGE VO CJ78M06 3 2 Pulsed 0A I O= 5.6 OUTPUT VOLTAGE 4 TJ=25℃ IO=0.2A、0.35A、0.5A 5.2 4.8 4.4 4.0 1 3.6 0 0 5 10 15 20 INPUT VOLTAGE 25 VIN 30 3.2 6.8 35 7.4 7.6 7.8 8.0 8.2 VIN 8.4 8.6 8.8 9.0 (V) Quiescent Current vs Output Current Quiescent Current 4.0 IO=0mA VIN=11V TJ=25℃ TJ=25℃ (mA) (mA) 7.2 INPUT VOLTAGE 5 Pulsed Pulsed 3.6 QUIESCENT CURRENT IQ 4 IQ QUIESCENT CURRENT 7.0 (V) 3 2 1 3.2 2.8 0 0 5 10 15 20 INPUT VOLTAGE 25 VIN 30 2.4 0.0 35 0.2 OUTPUT CURRENT 0.3 IO 0.4 0.5 (A) Current Cut-off Grid Voltage Output Voltage vs Ambient Temperature 7 0.1 (V) 8 VIN=11V 3 2 VIN=11V IO=350mA 1 5 OUTPUT VOLTAGE 4 (V) 5 6 VO Pulsed (V) OUTPUT VOLTAGE VO TJ=25℃ 7 6 4 3 2 1 Pulsed 0 -25 0 25 50 75 AMBIENT TEMPERATURE Ta 100 125 (℃ ) 0 0.0 0.5 1.0 OUTPUT CURRENT 1.5 IO 2.0 2.5 (A) Power Derating Curve 2.00 1.50 POWER DISSIPATION PD (W) 1.75 1.25 1.00 0.75 0.50 0.25 0.00 0 25 50 75 JUNCTION TEMPERATURE 100 TJ (℃ ) 125 C,Apr,2014
