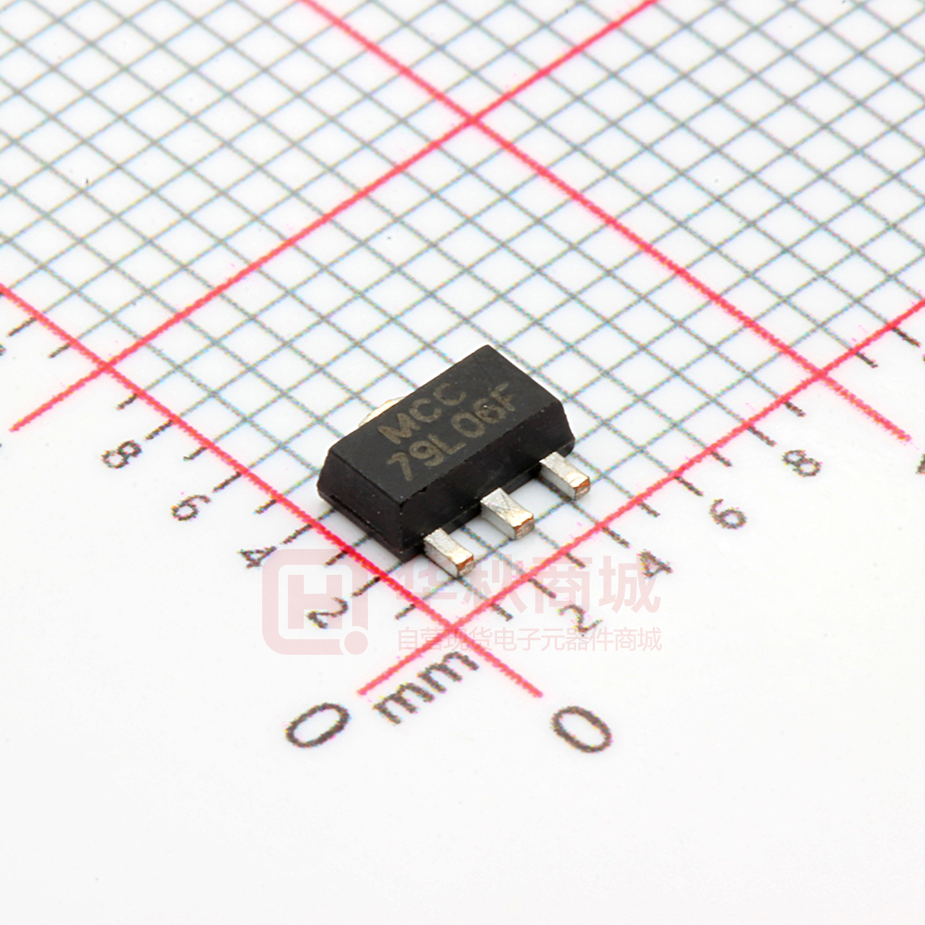

79L06

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD TO-92 Encapsulate Three-terminal voltage regulators CJ79L06 Three-terminal negative voltage regulator TO-92 1. GND FEATURES Maximum output current IOM: 0.1 A 2. IN Output voltage 3. OUT Vo: -6 V Continuous total dissipation PD: 0.625 W ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies unless otherwise specified) Parameter Symbol Value Units Vi -30 V TOPR 0~+150 ℃ TSTG -55~+150 ℃ Input Voltage Operating Junction Temperature Range Storage Temperature Range ELECTRICAL CHARACTERISTICS AT SPECIFIED VIRTUAL JINCTION TEMPERATURE (VI=-11V,Io=40mA,Ci=0.33μF,Co=0.1μF, unless otherwise specified ) Parameter Symbol Test conditions 25℃ Output Voltage -8V≤Vl≤-20V, Io=1mA~40mA Vo Io=1mA~70mA Load Regulation ΔVo Line Regulation ΔVo Quiescent Current Iq 0-125℃ Min Typ Max Unit -5.75 -6.0 -6.25 V -5.7 -6.0 -6.3 V -5.7 -6.0 -6.3 V Io=1mA~100mA 25℃ 21 80 mV Io=1mA~40mA 25℃ 11 40 mV -8V≤Vl≤-20V 25℃ 20 175 mV -9V≤Vl≤-20V 25℃ 15 125 mV 25℃ 3.9 6.0 mA ΔIq -9V≤Vl≤-20V 0-125℃ 1.5 mA ΔIq 1mA≤Vl≤40mA 0-125℃ 0.1 mA Output Noise Voltage VN 10Hz≤f≤100KHz Ripple Rejection RR -9V≤Vl≤-19V,f=120HZ Dropout Voltage Vd Quiescent Current Change TYPICAL APPLICATION 25℃ 0-125℃ 25℃ Vi 2 3 40 44 μV 48 dB 1.7 V Vo UTC CJ79L06 1 Ci 0.33μF Co 0.1μF Note: Bypass capacitors are recommended for optimum stability and transient response and should be located as close possible to the regulators. B,Apr,2012
