JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD
SOT-23Plastic-Encapsulate Transistors
A1015
TRANSISTOR
(PNP)
SOT-23
FEATURES
High voltage and high current
Excellent hFE Linearity
Low niose
Complementary to C1815
z
z
z
z
1. BASE
2. EMITTER
3. COLLECTOR

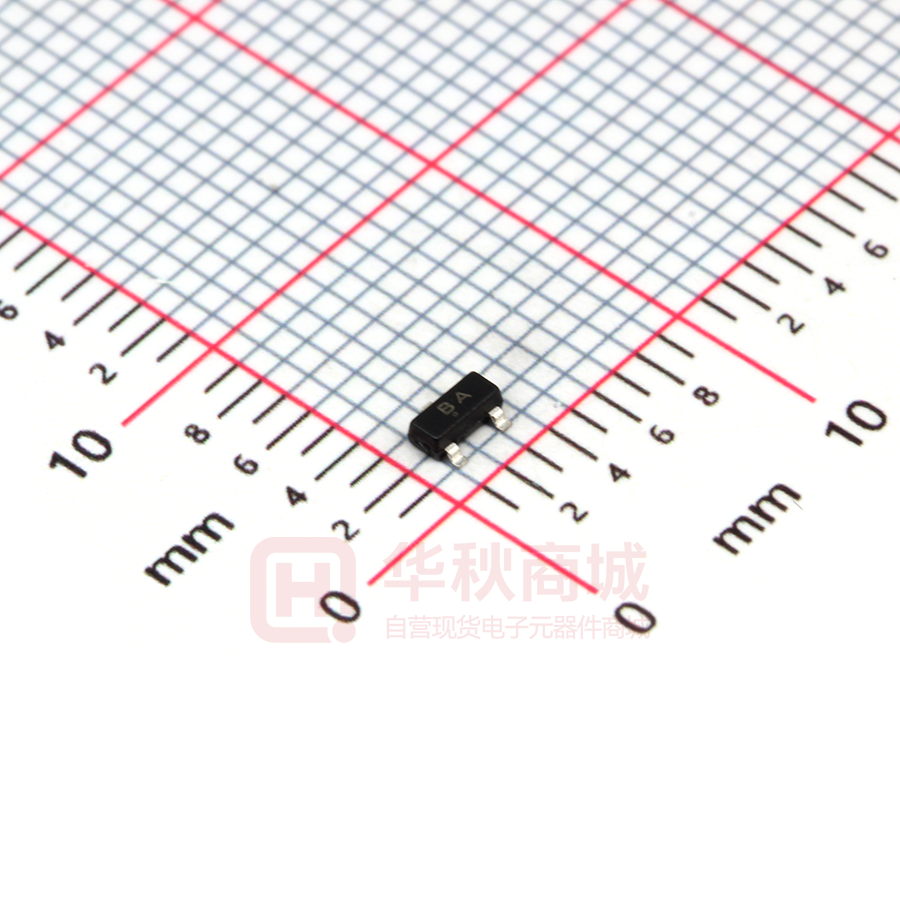

MARKING: BA
MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)
Symbol
Value
Parameter
Unit
VCBO
Collector-Base Voltage
-50
V
VCEO
Collector-Emitter Voltage
-50
V
VEBO
Emitter-Base Voltage
-5
V
IC
Collector Current -Continuous
150
mA
PC
Collector Power Dissipation
200
mW
RθJA
Thermal Resistance From Junction To Ambient
625
℃/W
TJ
Junction Temperature
150
℃
Tstg
Storage Temperature
-55~+150
℃
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Parameter
Symbol
Test conditions
Min
Typ
Max
Unit
Collector-base breakdown voltage
V(BR)CBO
IC= -100u A,IE=0
-50
V
Collector-emitter breakdown voltage
V(BR)CEO
IC= -0.1mA, IB=0
-50
V
Emitter-base breakdown voltage
V(BR)EBO
IE= -100 u A, IC=0
-5
V
Collector cut-off current
ICBO
VCB=-50V ,IE=0
-0.1
μA
Collector cut-off current
ICEO
VCE= -50V , IB=0
-0.1
μA
Emitter cut-off current
IEBO
VEB=- 5V, IC=0
-0.1
μA
DC current gain
hFE
VCE=-6V,IC= -2mA
130
400
Collector-emitter saturation voltage
VCE(sat)
IC=-100 mA, IB= -10mA
-0.3
V
Base-emitter saturation voltage
VBE(sat)
IC=-100 mA, IB= -10mA
-1.1
V
fT
Transition frequency
VCE=-10V,IC= -1mA
f=30MHz
80
MHz
CLASSIFICATION OF hFE
Rank
Range
L
H
130-200
200-400
B,Nov,2012
