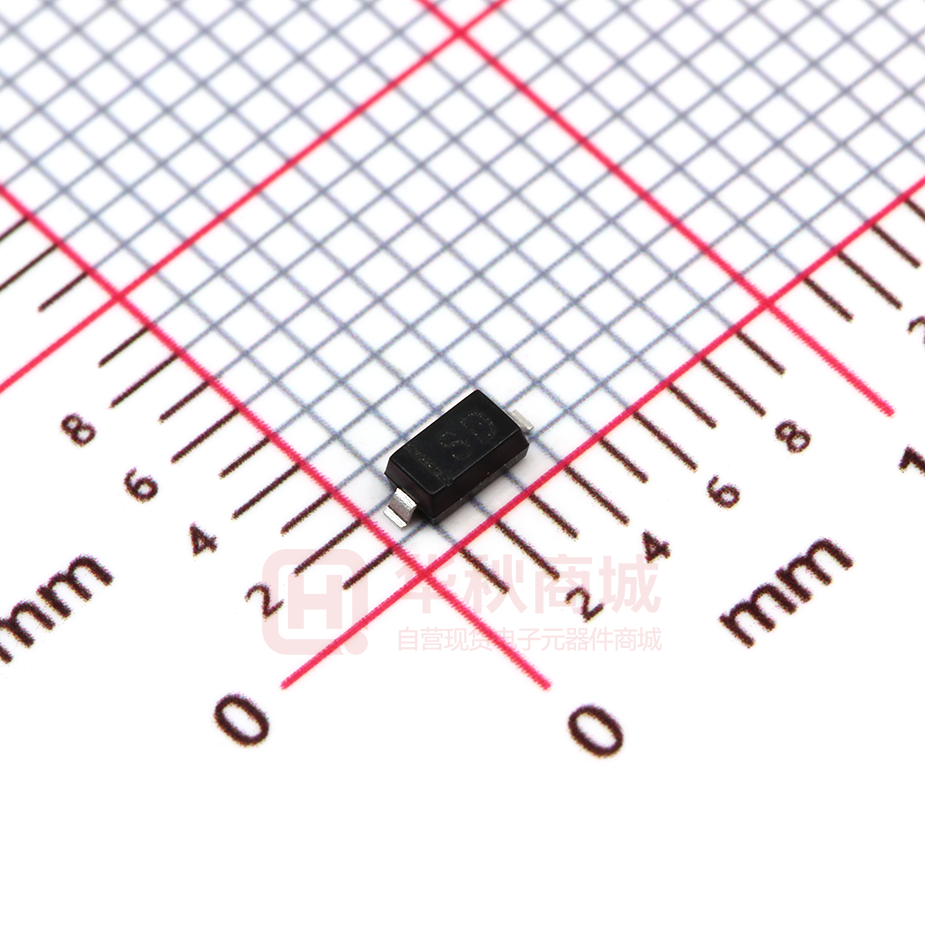

B0520LW

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-123 Plastic-Encapsulate Diodes B0520LW SCHOTTKY BARRIER DIODE SOD-123 FEATURES z z z z Low Forward Voltage Drop Guard Ring Construction for Transient Protection High Conductance Also Available in Lead Free Version MARKING:SD SD The marking bar indicates the cathode Solid dot = Green molding compound device,if none, the normal device. SD Maximum Ratings @Ta=25℃ Parameter Symbo Value Unit 20 V VR(RMS) 14 V Io 0.5 A Non-repetitive Peak Forward Surge Current @t=8.3ms IFSM 5.5 A Power dissipation PD 500 mW Thermal resistance junction to ambient RθJA 200 ℃/W Operating Junction Temperature Range Tj -40 ~ +125 ℃ Storage Temperature Range TSTG -55 ~ +150 ℃ Voltage rate of change dv/dt 1000 V/μs Peak repetitive peak reverse voltage VRRM Working peak reverse voltage VRWM VR DC blocking voltage RMS reverse voltage reverse voltage (DC) Average rectified output current Electrical Characteristics @Ta=25℃ Symbol Reverse breakdown voltage V(BR) Reverse current IR Forward voltage VF Capacitance between terminals CT www.jscj-elec.com Test conditions IR=250uA Min Typ Max 20 V VR =10V 75 VR =20V 250 IF=0.1A 0.33 IF =0.5A 0.39 VR=1,f=1MHz 1 Unit 170 uA V pF Rev. - 2.0 B0520LW Typical Characteristics Forward Reverse Characteristics 1000 Ta=100 ℃ (uA) 100 00 =1 Ta 10 ℃ REVERSE CURRENT IR FORWARD CURRENT IF (mA) Characteristics 5000 500 5℃ =2 Ta 1 100 10 Ta=25 ℃ 1 0.1 0 100 200 300 FORWARD VOLTAGE VF 400 0.1 0.1 500 5 (mV) 10 20 15 REVERSE VOLTAGE VR (V) Power Derating Curve Capacitance Characteristics 600 250 CAPACITANCE BETWEEN TERMINALS CT (pF) Ta=25℃ f=1MHz 500 PD (mW) 200 POWER DISSIPATION 150 100 50 0 400 300 200 100 0 5 10 15 REVERSE VOLTAGE www.jscj-elec.com 20 VR 25 0 30 0 25 50 AMBIENT TEMPERATURE (V) 2 75 100 Ta 125 (℃ ) Rev. - 2.0 SOD-123 Package Outline Dimensions Dimensions In Millimeters Min Max 1.050 1.250 0.000 0.100 1.050 1.150 0.450 0.650 0.080 0.150 1.500 1.700 2.600 2.800 3.550 3.850 0.500 REF 0.250 0.450 0° 8° Symbol A A1 A2 b c D E E1 L L1 θ Dimensions In Inches Min Max 0.041 0.049 0.000 0.004 0.041 0.045 0.018 0.026 0.003 0.006 0.059 0.067 0.102 0.110 0.140 0.152 0.020 REF 0.010 0.018 0° 8° SOD-123 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 2.0 SOD-123 Tape and Reel www.jscj-elec.com 4 Rev. - 2.0
