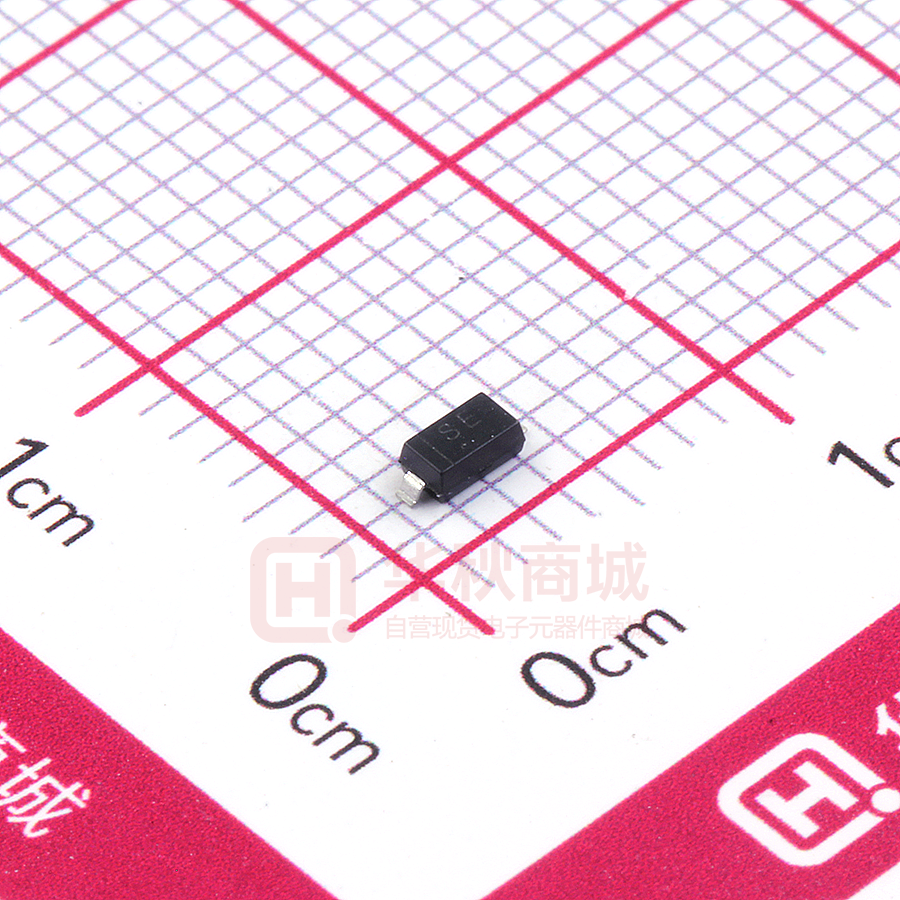

B0530W

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-123 Plastic-Encapsulate Diodes B0530W SCHOTTKY BARRIER DIODE SOD-123 FEATURES z z z z Low Forward Voltage Drop Guard Ring Construction for Transient Protection High Conductance Also Available in Lead Free Version MARKING:SE SE The marking bar indicates the cathode Solid dot = Green molding compound device,if none, SE the normal device. Maximum Ratings @Ta=25℃ Parameter Symbo Value Unit 30 V VR(RMS) 21 V Io 0.5 A Non-repetitive Peak Forward Surge Current @t=8.3ms IFSM 5.5 A Power dissipation PD 500 mW Thermal resistance junction to ambient RθJA 200 ℃/W Operating Junction Temperature Range Tj -40 ~ +125 ℃ Storage Temperature Range TSTG -55 ~ +150 ℃ Voltage rate of change dv/dt 1000 V/μs Peak repetitive peak reverse voltage VRRM Working peak reverse voltage VRWM VR DC blocking voltage RMS reverse voltage reverse voltage (DC) Average rectified output current Electrical Characteristics @Ta=25℃ Symbol Reverse breakdown voltage V(BR) Reverse current IR Forward voltage VF Capacitance between terminals CT www.jscj-elec.com Test conditions IR=200uA Min Typ Max 30 V VR =15V 20 VR =30V 130 IF=0.1A 0.375 IF =0.5A 0.430 VR=1,f=1MHz 1 Unit 170 uA V pF Rev. - 2.0 B0530W Typical Characteristics Forward 1 Characteristics Reverse 1000 Pulsed Characteristics Pulsed o 100 REVERSE CURRENT IR T= a 1 00 o C 0.1 T= a 2 5 FORWARD CURRENT IF o C (uA) (A) Ta=100 C 0.01 0.1 0.2 0.3 FORWARD VOLTAGE 1000 0.5 0.4 VF 10 1 0.1 0.6 o Ta=25 C 0 (V) 5 10 15 Capacitance Characteristics 25 20 REVERSE VOLTAGE VR 30 (V) Power Derating Curve 600 100 10 0.1 1 REVERSE VOLTAGE www.jscj-elec.com (mW) 500 400 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) f=1MHz PD Ta=25℃ 10 VR 300 200 100 0 20 0 25 50 75 AMBIENT TEMPERATURE (V) 2 100 Ta 125 (℃) Rev. - 2.0 SOD-123 Package Outline Dimensions Dimensions In Millimeters Min Max 1.050 1.250 0.000 0.100 1.050 1.150 0.450 0.650 0.080 0.150 1.500 1.700 2.600 2.800 3.550 3.850 0.500 REF 0.250 0.450 0° 8° Symbol A A1 A2 b c D E E1 L L1 θ Dimensions In Inches Min Max 0.041 0.049 0.000 0.004 0.041 0.045 0.018 0.026 0.003 0.006 0.059 0.067 0.102 0.110 0.140 0.152 0.020 REF 0.010 0.018 0° 8° SOD-123 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 2.0 SOD-123 Tape and Reel www.jscj-elec.com 4 Rev. - 2.0
