SOD-323 Plastic-Encapsulate Diodes

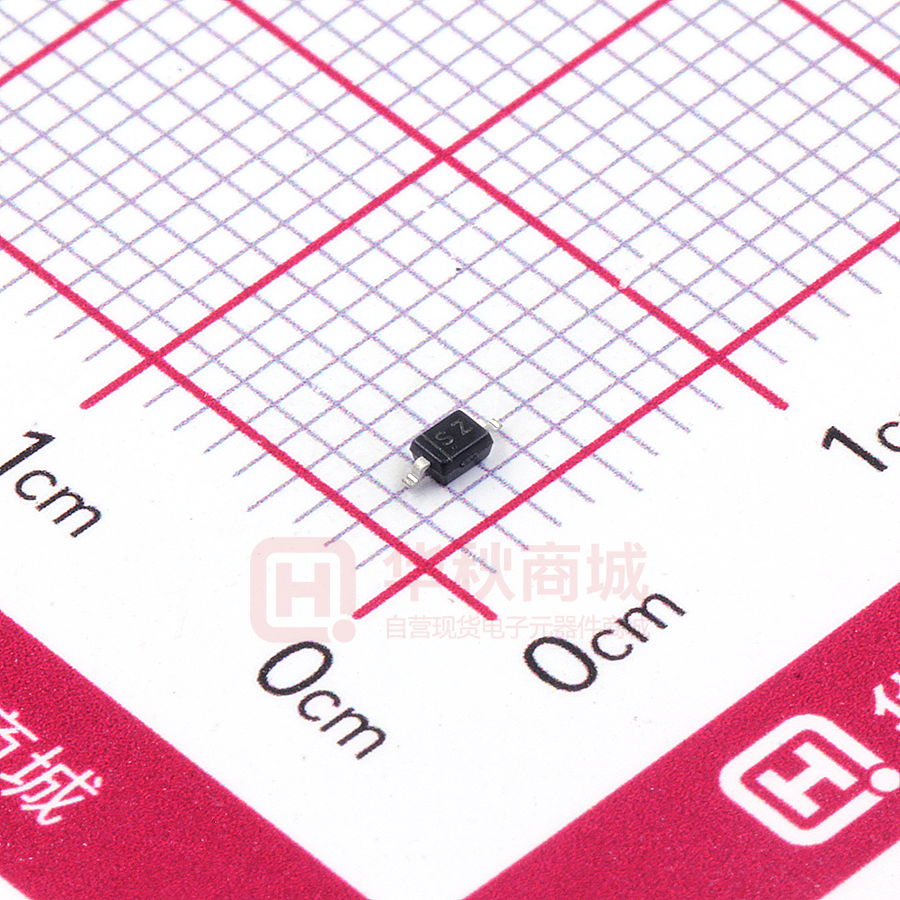

B1040WS
SOD-323
SCHOTTKY BARRIER DIODE
FEATURES
z
Low Forward Voltage Drop
z
Very Small SMD Package
APPLICATIONS
z
Low Voltage Rectification
High Efficiency DC/DC Conversion
z
Switch Mode Power Supply
z
z
Inverse Polarity Protection
z
Low Power Consumption Applications
MARKING: SZ
The marking bar indicates the cathode
Solid dot = Green molding compound device,if none,
the normal device.
MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted )
Symbol
Parameter
VRRM
Peak Repetitive Reverse Voltage
VRWM
Working Peak Reverse Voltage
Value
Unit
40
V
RMS Reverse Voltage
28
V
IO
Average Rectified Output Current
1
A
IFSM
Non-repetitive Peak Forward Surge Current @ t=8.3ms
5
A
PD
Power Dissipation
250
mW
Thermal Resistance from Junction to Ambient
400
℃/W
Operation Junction Temperature Range
-40 ~ +125
℃
Storage Temperature Range
-55 ~ +150
℃
VR(RMS)
RΘJA
Tj
Tstg
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Parameter
Reverse breakdown voltage
Symbol
V(BR)
Reverse current
IR
Forward voltage
VF
Total capacitance
www.jscj-elec.com
Ctot
Test conditions
IR=1mA
Min
Typ
Max
40
Unit
V
VR =20V
50
IF=0.5A
0.51
IF =0.7A
0.55
uA
V
20
VR=10V,f=1MHz
1
pF
Rev. - 2.1
Typical Characteristics
Forward
2
Characteristics
Reverse
1000
Characteristics
1
Ta=125℃
REVERSE CURRENT IR
Ta
=7
5℃
FORWARD CURRENT
Ta
=1
25
℃
IF
(uA)
(A)
100
Ta
=2
5℃
0.1
0.01
0
200
400
600
FORWARD VOLTAGE
800
VF
10
Ta=25℃
1
0.1
1000
0
10
(mV)
20
30
REVERSE VOLTAGE
Capacitance Characteristics
100
Ta=75℃
VR
40
(V)
Power Derating Curve
300
250
PD
(mW)
80
60
POWER DISSIPATION
CAPACITANCE BETWEEN TERMINALS
CT (pF)
Ta=25℃
f=1MHz
40
20
0
200
150
100
50
0
10
20
REVERSE VOLTAGE
www.jscj-elec.com
30
VR
0
40
(V)
0
25
50
75
AMBIENT TEMPERATURE
2
100
Ta
125
(℃ )
Rev. - 2.1
CHANGJING ELEC.TECH.
PACKAGE OUTLINE AND PAD LAYOUT INFORMATION
Dimensions In Millimeters
Min
Max
1.100
0.000
0.100
1.000
0.800
0.250
0.350
0.080
0.150
1.200
1.400
1.600
1.800
2.750
2.500
0.475 REF
0.250
0.400
0°
8°
Symbol
A
A1
A2
b
c
D
E
E1
L
L1
θ
Dimensions In Inches
Min
Max
0.043
0.000
0.004
0.039
0.031
0.010
0.014
0.003
0.006
0.047
0.055
0.063
0.071
0.098
0.108
0.019 REF
0.010
0.016
0°
8°
NOTICE
JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other
changes without further notice to any product herein. JSCJ does not assume any liability arising
out of the application or use of any product described herein.
www.jscj-elec.com
3
Rev. - 2.1
SOD-323 Tape and Reel
www.jscj-elec.com
4
Rev. - 2.1
