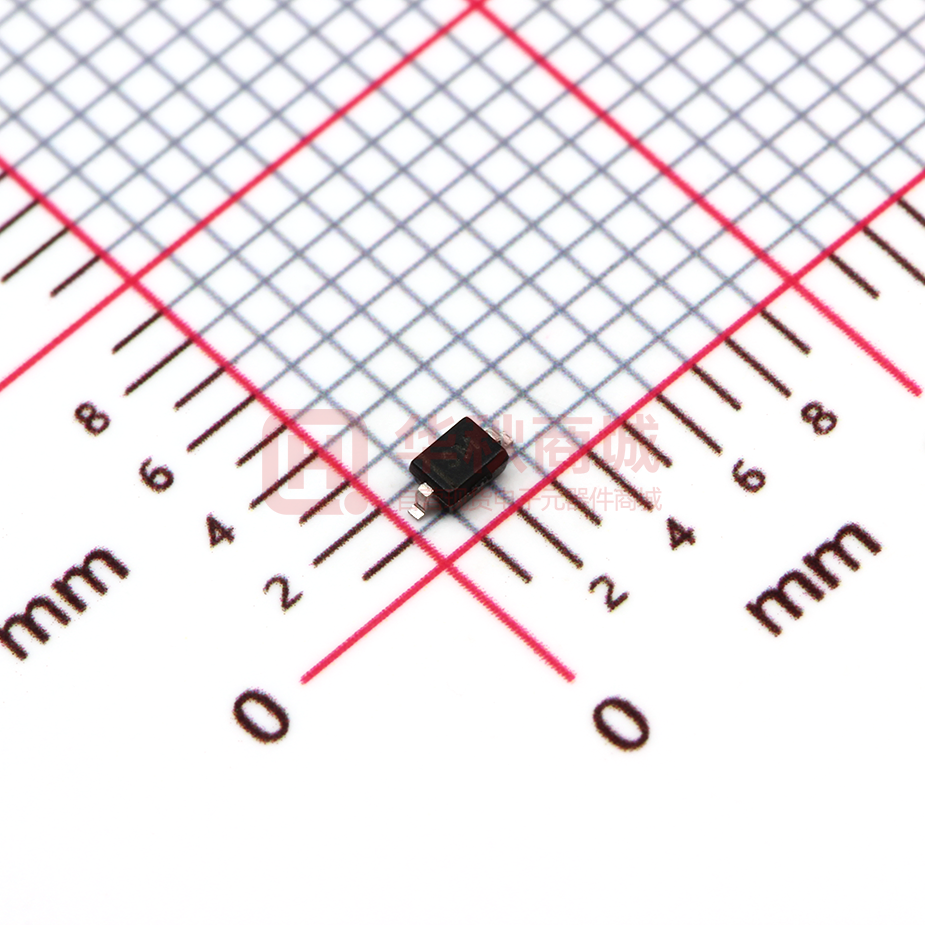

B16WS

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOD-323 Plastic-Encapsulate Diodes B16WS Schottky Barrier Diode SOD-323 FEA TURES Guard ring protection z Low forward voltage drop z For use in low voltage, high frequency inverters z z High surge current capability Marking: SM MAXIMUM RATINGS( Ta=25℃ unless otherwise noted ) Symbol Parameter Value VRRM Maximum recurrent peak reverse voltage 60 VRMS Maximum RMS voltage 42 VDC Maximum DC blocking voltage 60 Continuous forward current 1 IFSM Non-repetitive Peak forward surge current@t=8.3ms 10 Ptot Total power dissipation IF RθJA Thermal resistance junction to ambient air TJ Junction temperature Tstg storage temperature Unit V A 250 mW 400 ℃/W 125 ℃ ℃ -55~+150 ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified) Parameter Maximum instantaneous forward voltage Maximum DC reverse current at rated DC blocking voltage Total capacitance www.cj-elec.com Symbol Test conditions Max Unit VF IF=1A 0.7 V IR VR=60V 0.1 mA VR=4V,f=1MHz 120 pF Ctot 1 Min Typ E,Mar,2015 Typical Characteristics Forward Characteristics Reverse (uA) (mA) 1000 100 a T a T= 25 ℃ =1 00 ℃ 10 REVERSE CURRENT IR IF FORWARD CURRENT Characteristics 10000 1000 1 Ta=100℃ 100 10 Ta=25℃ 1 0.1 0 100 200 300 FORWARD VOLTAGE 400 VF 600 500 0.1 0.1 650 5 10 15 20 25 30 35 REVERSE VOLTAGE (mV) Capacitance Characteristics 40 45 VR (V) 50 55 60 Power Derating Curve 150 300 Ta=25℃ f=1MHz (mW) PD 100 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) 250 50 200 150 100 50 0 0 2 4 REVERSE VOLTAGE www.cj-elec.com 6 8 VR 0 10 (V) 0 25 50 75 AMBIENT TEMPERATURE 2 100 Ta 125 (℃ ) E,Mar,2015 SOD-323 Package Outline Dimensions SOD-323 Suggested Pad Layout www.cj-elec.com 3 E,Mar,2015 SOD-323 Tape and Reel www.cj-elec.com 4 E,Mar,2015
