JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD
SOT-23 Plastic-Encapsulate Diodes
SOT-23
BAS40/-04/-05/-06
SCHOTTKY BARRIER DIODE
FEATURES
Low Forward Voltage
z
Fast Switching
z
BAS40 MARKING: 43•

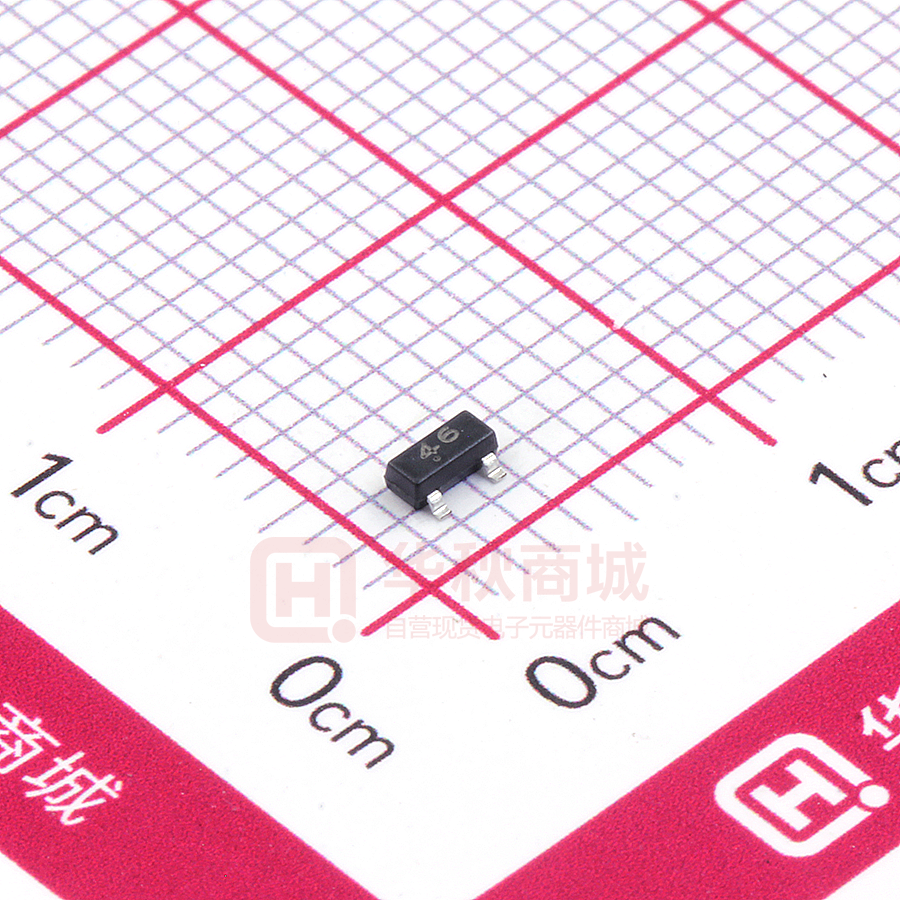

BAS40-06 MARKING: 46
MARKING:
BAS40
BAS40-06
BAS40-05 MARKING:45
B AS40-04 MARKING:44
BAS40-04
BAS40-05
Solid dot = Green molding compound device,if none,
the normal device.
Maximum Ratings @Ta=25℃
Parameter
Symbol
Peak repetitive peak reverse voltage
VRRM
Working peak reverse voltage
VRWM
DC blocking voltage
VR
Limit
Unit
40
V
Forward continuous current
IFM
200
mA
Power dissipation
PD
200
mW
RθJA
500
℃/W
TJ
125
℃
Thermal resistance junction to ambient
Junction temperature
Storage temperature range
℃
-55~+150
TSTG
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Parameter
Reverse breakdown voltage
Reverse voltage leakage current
Forward voltage
Diode capacitance
Reverse recovery time
www.cj-elec.com
Symbol
Test
V(BR)
IR=10μA
IR
VR=30V
200
IF=1mA
380
IF=40mA
1000
VF
CD
t rr
conditions
VR=0,f=1MHz
Irr=1mA, IR=IF=10mA
RL=100Ω
1
Min
Max
40
Unit
V
nA
mV
5
pF
5
ns
E,Oct,2015
Typical Characteristics
Forward Characteristics
Reverse
100
Characteristics
100
Ta=100℃
(uA)
Ta=100℃
REVERSE CURRENT IR
FORWARD CURRENT
IF
(mA)
10
10
Ta=25℃
1
1
0.1
Ta=25℃
0.01
0.1
0.0
0.2
0.4
0.8
0.6
FORWARD VOLTAGE
1E-3
1.0
10
30
20
REVERSE VOLTAGE
Capacitance Characteristics
4.0
0
VF (V)
VR
40
(V)
Power Derating Curve
0.25
3.5
(W)
0.20
PD
3.0
POWER DISSIPATION
CAPACITANCE BETWEEN TERMINALS
CT (pF)
Ta=25℃
f=1MHz
2.5
2.0
1.5
1.0
0
5
10
15
REVERSE VOLTAGE
www.cj-elec.com
20
VR
25
0.15
0.10
0.05
0.00
30
(V)
0
25
50
75
AMBIENT TEMPERATURE
2
100
TJ
125
(℃ )
E,Oct,2015
SOT-23 Package Outline Dimensions
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
Dimensions In Millimeters
Min
Max
0.900
1.150
0.000
0.100
0.900
1.050
0.300
0.500
0.080
0.150
2.800
3.000
1.200
1.400
2.250
2.550
0.950 TYP
1.800
2.000
0.550 REF
0.300
0.500
0°
8°
Dimensions In Inches
Min
Max
0.035
0.045
0.000
0.004
0.035
0.041
0.012
0.020
0.003
0.006
0.110
0.118
0.047
0.055
0.089
0.100
0.037 TYP
0.071
0.079
0.022 REF
0.012
0.020
0°
8°
SOT-23 Suggested Pad Layout
www.cj-elec.com
3
E,Oct,2015
A,Jun,2014
SOT-23 Tape and Reel
www.cj-elec.com
4
E,Oct,2015
A,Jun,2014
