JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD
SOD-323 Plastic-Encapsulate Diodes
BAS40WS SCHOTTKY BARRIER DIODE
FEATURES
z Low Turn-on Voltage
z Designed for Surface Mount Application
z
z
z
SOD-323
PN Junction Guard for Transient and ESD Protection
Fast Switching
Plastic Material –UL Recognition Flammability
Classification 94V-O

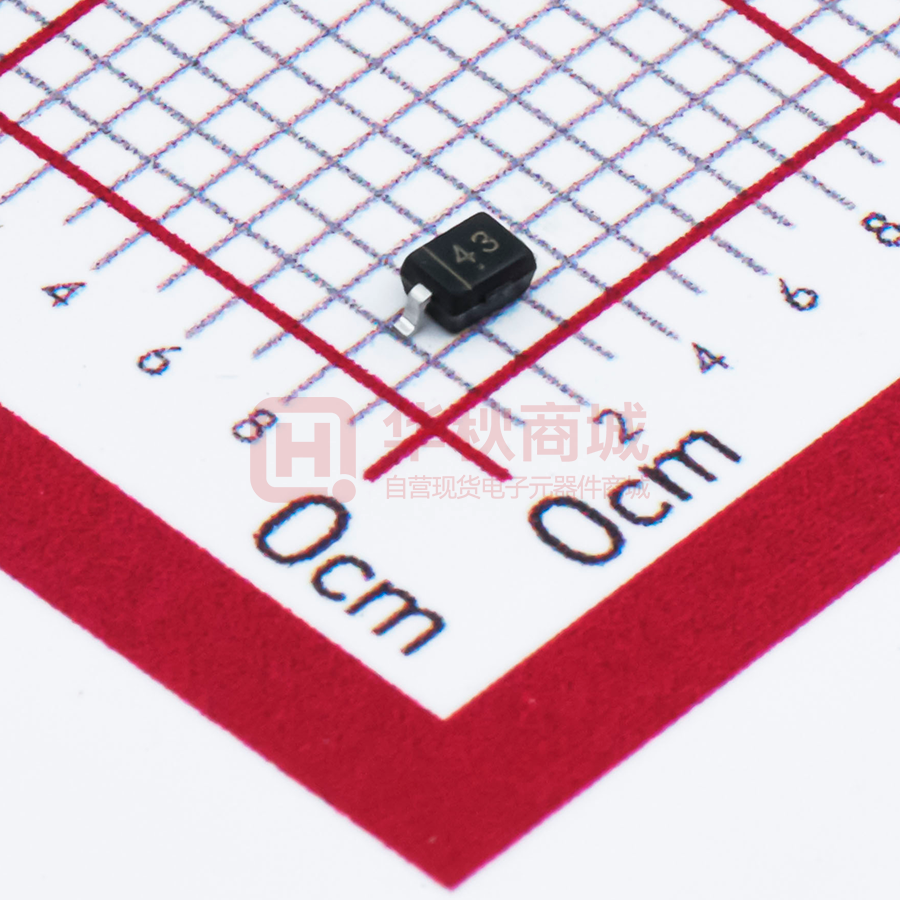

MARKING: 43
The marking bar indicates the cathode
Solid dot = Green molding compound device,if none,
the normal device.
Maximum Ratings and Electrical Characteristics, Single Diode @Ta=25 ℃
Parameter
Symbo
Peak Repetitive Peak Reverse Voltage
VRRM
Working Peak Reverse Voltage
VRWM
Limit
Unit
40
V
DC Blocking V oltage
VR
Forward Continuous Current
IF
200
mA
IFSM
600
mA
Pd
200
mW
Thermal Resistance Junction to Ambient
RθJA
500
℃/W
Junction temperature
TJ
125
℃
Storage Temperature
TSTG
Non-repetitive Peak Forward
Surge Current@t=8.3ms
Power Dissipation
-55 ~ +150
℃
Electrical Ratings @Ta=25℃
Parameter
Reverse breakdown voltage
Forward voltage
Symbol
V (BR)
Min
Typ
Max
40
Unit
Conditions
V
IR=10μA
VF1
0.38
V
IF=1mA
VF2
0.5
V
IF=10mA
VF3
1
V
IF=40mA
Reverse current
IR
20
200
nA
VR=30V
Capacitance between terminals
CT
4
5
pF
VR=0V,f=1MHz
Reverse recovery time
trr
5
ns
www.cj-elec.com
1
IF=IR=10mA
Irr=0.1XIR,RL=100Ω
D,Mar,2015
Typical Characteristics
Forward
Characteristics
Reverse
100
Characteristics
10000
Ta=100℃
1000
Ta
=2
5℃
Ta
=1
00
℃
FORWARD CURRENT
10
REVERSE CURRENT IR
(nA)
30
IF
(mA)
3000
3
300
100
Ta=25℃
30
10
3
1
0.0
1
0.2
0.4
0.6
FORWARD VOLTAGE
0.8
VF
1.0
0
10
(V)
20
REVERSE VOLTAGE
30
VR
40
(V)
Power Derating Curve
Capacitance Characteristics
4
300
Ta=25℃
f=1MHz
(mW)
PD
POWER DISSIPATION
CAPACITANCE BETWEEN TERMINALS
CT (pF)
250
3
2
1
200
150
100
50
0
0
0
5
10
REVERSE VOLTAGE
www.cj-elec.com
15
VR
20
0
(V)
25
50
75
AMBIENT TEMPERATURE
2
100
Ta
125
150
(℃)
D,Mar,2015
SOD-323 Package Outline Dimensions
SOD-323 Suggested Pad Layout
www.cj-elec.com
3
D,Mar,2015
SOD-323 Tape and Reel
www.cj-elec.com
4
D,Mar,2015
