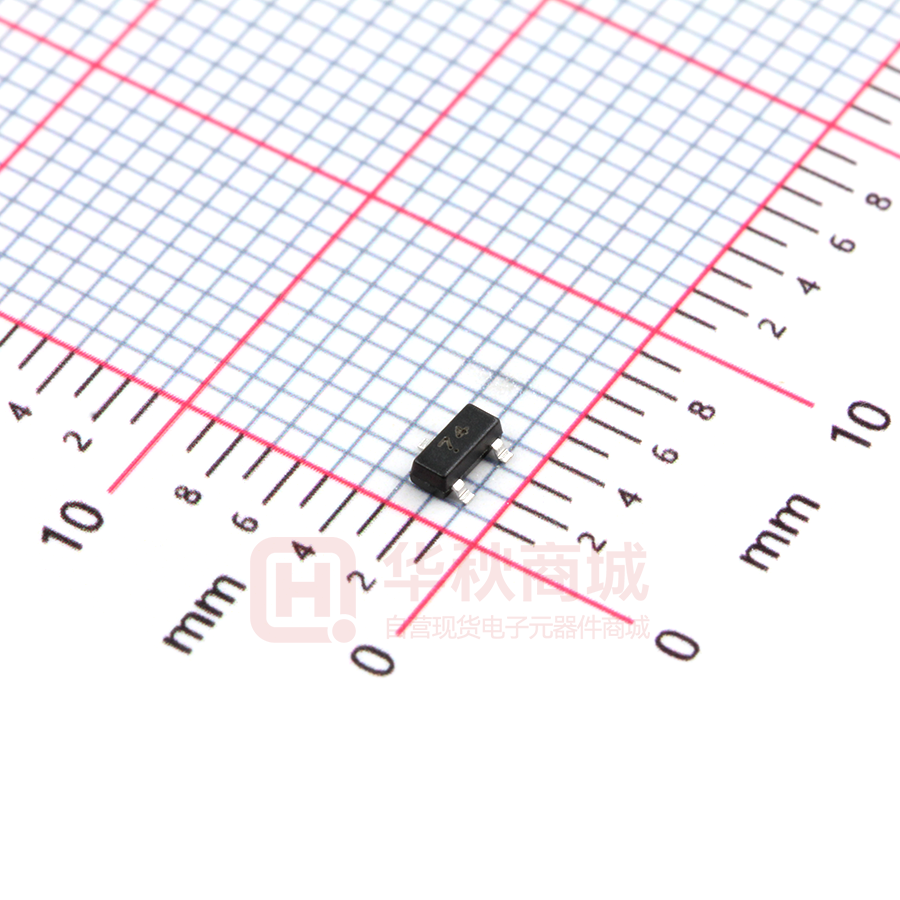

BAS70-04

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-23 Plastic-Encapsulate Diodes BAS70/-04/-05/-06 SWITCHING DIODE SOT-23 FEATURES Low turn-on voltage Fast switching z Also available in lead free version z z BAS70 Marking: 73 BAS70-04 Marking: 74 BAS70-05 Marking: 75 BAS70-04 BAS70-05 BAS70-06 Marking: 76 MARKING: BAS70 BAS70-06 Solid dot = Green molding compound device,if none, the normal device. MAXIMUM RATINGS @T a=25℃ Parameter Symbol Value Unit VR DC Voltage 70 V IF Forward Continuous Current 70 mA IFSM Non-Repetitive Peak Forward Surge Current @ t = 8.3ms 100 mA PD Power Dissipation 200 mW RθJA Thermal Resistance Junction to Ambient 500 ℃/W TJ Junction Temperature 125 ℃ Tstg Storage Temperature -55~+150 ℃ ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Reverse breakdown voltage Symbol V(BR) Test conditions IR= 10µA Min Max 70 Unit V Reverse voltage leakag e current IR VR=50V 100 nA Forward voltage VF IF=1mA IF=15mA 410 1000 mV Diode cap acitance CD VR=0V f=1MHz 2 pF Reveres recovery time trr 5 ns www.cj-elec.com IF=IR=10mA,Irr=0.1xIR, RL=100Ω 1 E,Oct,2015 Typical Characteristics Forward 100 Characteristics Pulsed Ta=100℃ (uA) REVERSE CURRENT IR a T IF =1 00 ℃ (mA) 10 FORWARD CURRENT Characteristics Reverse 10 Pulsed T= a 2 5℃ 1 0.1 0.01 0.0 0.2 0.4 0.6 FORWARD VOLTAGE 0.8 VF 0.1 Ta=25℃ 0.01 1.0 0 10 20 (V) 30 40 REVERSE VOLTAGE 50 60 70 (V) VR Power Derating Curve Capacitance Characteristics 3.0 1 300 Ta=25℃ 250 (mW) PD 2.0 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) f=1MHz 2.5 1.5 1.0 150 100 50 0.5 0.0 200 0 5 10 REVERSE VOLTAGE www.cj-elec.com 15 VR 0 20 0 25 50 2 100 75 AMBIENT TEMPERATURE (V) Ta 125 (℃ ) E,Oct,2015 SOT-23 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° SOT-23 Suggested Pad Layout www.cj-elec.com 3 E,Oct,2015 A,Jun,2014 SOT-23 Tape and Reel www.cj-elec.com 4 E,Oct,2015 A,Jun,2014
