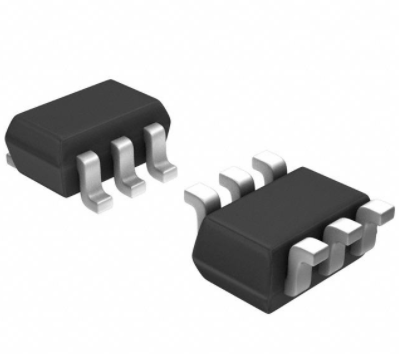

BAS70DW-04

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-363 Plastic-Encapsulate Diodes BAS70BRW /BAS70DW-04 / SOT-363 BAS70DW-05 /BAS70DW-06 /BAS70TW SCHOTTKY BARRIER DIODE ARRAYS FEATURES      Low Forward Voltage Drop Fast Switching Small Surface Mount Package PN Junction Guard Ring for Transient and ESD Protection Available in Lead Free Version BAS70BRW BAS70DW-04 BAS70DW-05 BAS70DW-06 BAS70TW MARKING: BAS70BRW BAS70DW-04 BAS70DW-05 BAS70DW-06 BAS70TW Solid dot = Pin1 indicate. Solid dot = Green molding compound device,if none, the normal device. MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Symbol Parameter Value Unit 70 V RMS Reverse Voltage 49 V Forward Continuous Current 70 mA IFSM Non-repetitive Peak Forward Surge Current @t=8.3ms 100 mA PD Power Dissipation 200 mW Thermal Resistance From Junction To Ambient 500 ℃/W Tj Junction Temperature 125 ℃ Tstg Storage Temperature -55~+150 ℃ VRRM Repetitive Peak Reverse Voltage VRWM Peak Working Reverse Voltage VR VR(RMS) IO RΘJA www.cj-elec.com DC Blocking Voltage 1 F,Mar,2016 ELECTRICAL CHARACTERISTICS Ta =25 ℃ unless otherwise specified Parameter Symbol Test conditions Min Typ Max Unit μA Reverse voltage V(BR) IR=10μA Reverse current IR VR=50V 0.1 Forward voltage VF IF=1mA 0.41 IF=15mA 1 Total capacitance Ctot VR=0V,f=1MHz 2 pF IF=IR=10mA to IR=1mA,Irr=0.1×IR, RL=100Ω 5 ns Reverse recovery time www.cj-elec.com trr 70 2 V V F,Mar,2016 Typical Characteristics Forward Characteristics 70 Reverse Characteristics 100 Pulsed 10 (uA) REVERSE CURRENT IR Ta 1 T =2 a 5℃ FORWARD CURRENT Ta=100℃ 10 ℃ 00 =1 IF (mA) Pulsed 0.1 0.01 0.0 0.2 0.4 0.6 FORWARD VOLTAGE 0.8 VF Ta=25℃ 0.1 0.01 1.0 0 10 20 (V) 30 40 REVERSE VOLTAGE Capacitance Characteristics Per Diode 3.0 1 60 50 VR 70 (V) Power Derating Curve 250 Ta=25℃ f=1MHz (mW) 1.5 1.0 0.5 0.0 200 PD 2.0 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) 2.5 0 5 10 REVERSE VOLTAGE www.cj-elec.com 15 VR 150 100 50 0 20 (V) 0 25 50 75 JUNCTION TEMPERATURE 3 100 125 Tj (℃ ) F,Mar,2016 SOT-363 Package Outline Dimensions Dimensions In Millimeters Min Max 0.900 1.100 0.000 0.100 0.900 1.000 0.150 0.350 0.100 0.150 2.000 2.200 1.150 1.350 2.150 2.400 0.650 TYP 1.200 1.400 0.525 REF 0.260 0.460 0° 8° Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Inches Min Max 0.035 0.043 0.000 0.004 0.035 0.039 0.006 0.014 0.004 0.006 0.079 0.087 0.045 0.053 0.085 0.094 0.026 TYP 0.047 0.055 0.021 REF 0.010 0.018 0° 8° SOT-363 Suggested Pad Layout www.cj-elec.com 4 F,Mar,2016 SOT-363 Tape and Reel www.cj-elec.com 5 F,Mar,2016
