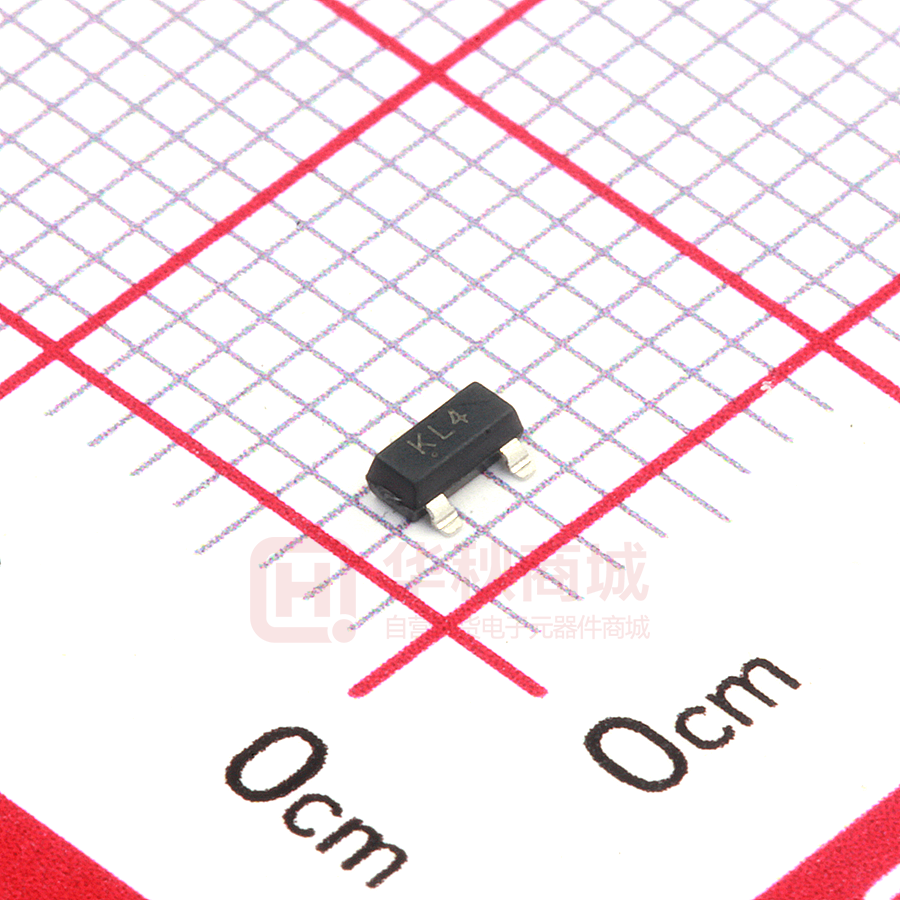

BAT54S

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOT-23 Plastic-Encapsulate Diodes BAT54/A/C/S SCHOTTKY BARRIER DIODE SOT-23 FEATURES Extremely Fast Switching Speed z MARKING: BAT54 BAT54A BAT54C BAT54S Solid dot = Green molding compound device,if none, the normal device. MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Parameter Symbol Peak Repetitive Reverse Voltage VRRM Working Peak Reverse Voltage VRWM Value Unit 30 V DC Blocking Voltage VR Forward Continuous Current IFM 200 mA Non-repetitive Peak Forward Surge Current @ t=8.3ms IFSM 600 mA Repetitive Peak Forward Current @ t≤1s,δ≤0.5 IFRM 300 mA Power Dissipation PD 200 mW RΘJA 500 ℃/W Tj -40 ~ +125 ℃ Tstg -55 ~ +150 ℃ Thermal Resistance from Junction to Ambient Operating Junction Temperature Range Storage Temperature Range ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified) Parameter Reverse voltage Forward voltage Symbol Min V(BR) 30 Typ VF Max Unit Test conditions V IR=100μA 0.24 V IF1=0.1mA 0.32 V IF2=1mA 0.40 V IF3=10mA 0.50 V IF4=30mA 1 V IF5=100mA Reverse current IR 2 μA VR=25V Diode capacitance CD 10 pF VR=1V,f=1MHz Reverse recovery time trr 5 ns www.jscj-elec.com 1 IF=IR=10mA Irr=0.1×IR,RL=100Ω Rev. - 2.1 Typical Characteristics Reverse Characteristics Forward Charact eristics 200 300 Pulsed 100 Ta=100℃ (uA) (mA) Ta = 25℃ T= a 1 00 ℃ IF 1 0.1 0.01 0 200 400 FORWARD VOLTAGE 600 VF 1 0.01 800 Ta=25℃ 0.1 0 5 10 (mW) f=1MHz (V) 25 30 200 PD 16 20 VR Power Derating Curve 250 Ta=25℃ 15 REVERSE VOLTAGE (mV) Capacitance Characteristics 20 12 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) 10 REVERSE CURRENT IR 10 FORWARD CURRENT Pulsed 100 8 4 0 0 5 10 15 REVERSE VOLTAGE www.jscj-elec.com 20 VR 25 150 100 50 0 30 0 25 50 75 AMBIENT TEMPERATURE (V) 2 100 Ta 125 (℃) Rev. - 2.1 SOT-23 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° SOT-23 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 2.1 SOT-23 Tape and Reel www.jscj-elec.com 4 Rev. - 2.1
