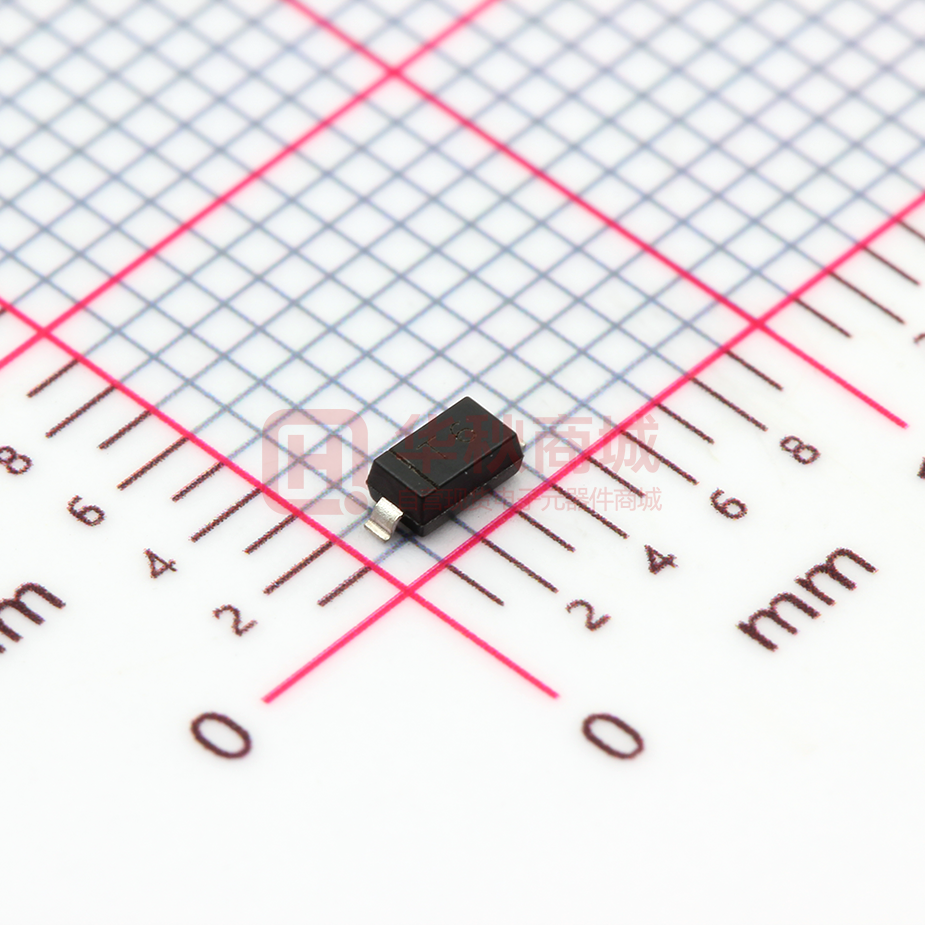

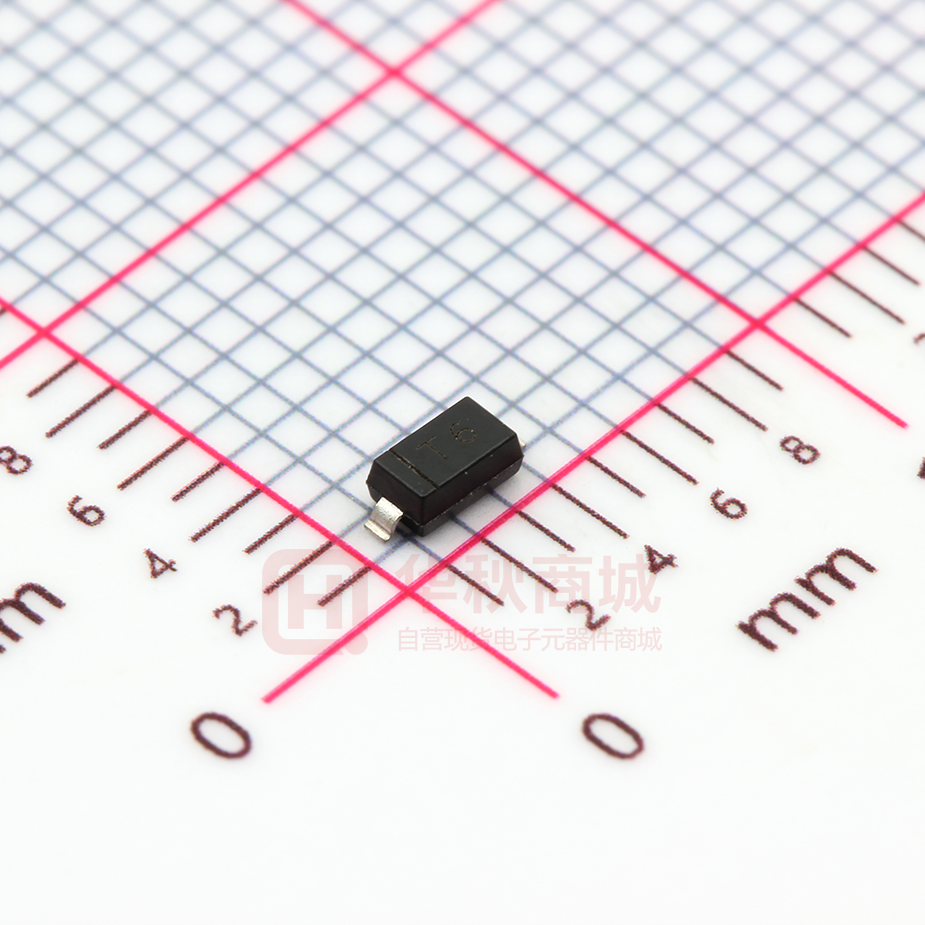

BAV16W

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-123 Plastic-Encapsulate Diodes BAV16W/1N4148W FAST SWITCHING DIODE SOD-123 FEATURES Fast Switching Speed z z Surface Mount Package Ideally Suited for Automatic Insertion z For General Purpose Switching Applications z High Conductance MARKING: T6,T4 1N4148W BAV16W T4 T6 T4 T6 The marking bar indicates the cathode Solid dot = Green molding compound device,if none,the normal device. Maximum Ratings and Electrical Characteristics, Single Diode @Ta=25℃ Parameter Symbol Limit Unit Non-Repetitive Peak Reverse Voltage VRM 100 V Peak Repetitive Peak Reverse Voltage VRRM Working Peak Reverse Voltage VRWM 100 V DC Blocking Voltage VR RMS Reverse Voltage VR(RMS) 71 V Forward Continuous Current IFM 300 mA Average Rectified Output Current IO 150 mA IFSM 2.0 A Non-Repetitive Peak Forward Surge Current @t=8.3ms Power Dissipation 1N4148W Pd BAV16W Thermal Resistance from Junction to Ambient(Note 1) 1N4148W RθJA BAV16W Operation Junction and Storage Temperature Range TJ,TSTG 350 400 357.1 312.5 -55~+150 mW ℃/W ℃ Note 1:Device mounted on 1''x1'' FR4 PCB,1oz single-side copper. www.jscj-elec.com 1 Rev. - 2.1 ELECTRICAL CHARACTERISTICS Electrical Ratings @Ta=25℃ Parameter Symbol Min Typ Max Unit Conditions VF1 0.715 V IF=1mA VF2 0.855 V IF=10mA VF3 1.0 V IF=50mA VF4 1.25 V IF=150mA IR1 1 μA VR=75V IR2 25 nA VR=20V Capacitance between terminals CT 2 pF VR=0V,f=1MHz Reverse recovery time trr 4 ns Forward voltage Reverse current www.jscj-elec.com 2 IF=IR=10mA Irr=0.1XIR,RL=100Ω Rev. - 2.1 Typical Characteristics Forward 300 Characteristics (nA) REVERSE CURRENT IR 10 T= a 2 5℃ T= a 1 00 ℃ 3 1 0.3 0.1 0.0 0.4 0.8 1.2 FORWARD VOLTAGE VF 300 100 Ta=25℃ 30 10 3 0 POWER DISSIPATION 1.2 1.0 0.8 12 REVERSE VOLTAGE www.jscj-elec.com 16 VR (V) VR (V) 300 200 100 0 25 50 75 100 AMBIENT TEMPERATURE 3 100 1N4148W 0 20 80 BAV16W 400 PD 1.4 8 60 Power Derating Curve 500 f=1MHz 4 40 REVERSE VOLTAGE Ta=25℃ 0 20 (V) Capacitance Characteristics 1.6 Ta=100℃ 1000 1 1.6 (mW) FORWARD CURRENT IF (mA) 30 0.6 Characteristics 3000 100 CAPACITANCE BETWEEN TERMINALS CT (pF) Reverse 10000 Ta 125 150 (℃) Rev. - 2.1 SOD-123 Package Outline Dimensions Dimensions In Millimeters Min Max 1.050 1.250 0.000 0.100 1.050 1.150 0.450 0.650 0.080 0.150 1.500 1.700 2.600 2.800 3.550 3.850 0.500 REF 0.250 0.450 0° 8° Symbol A A1 A2 b c D E E1 L L1 θ Dimensions In Inches Min Max 0.041 0.049 0.000 0.004 0.041 0.045 0.018 0.026 0.003 0.006 0.059 0.067 0.102 0.110 0.140 0.152 0.020 REF 0.010 0.018 0° 8° SOD-123 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 4 Rev. - 2.1 SOD-123 Tape and Reel www.jscj-elec.com 5 Rev. - 2.1
