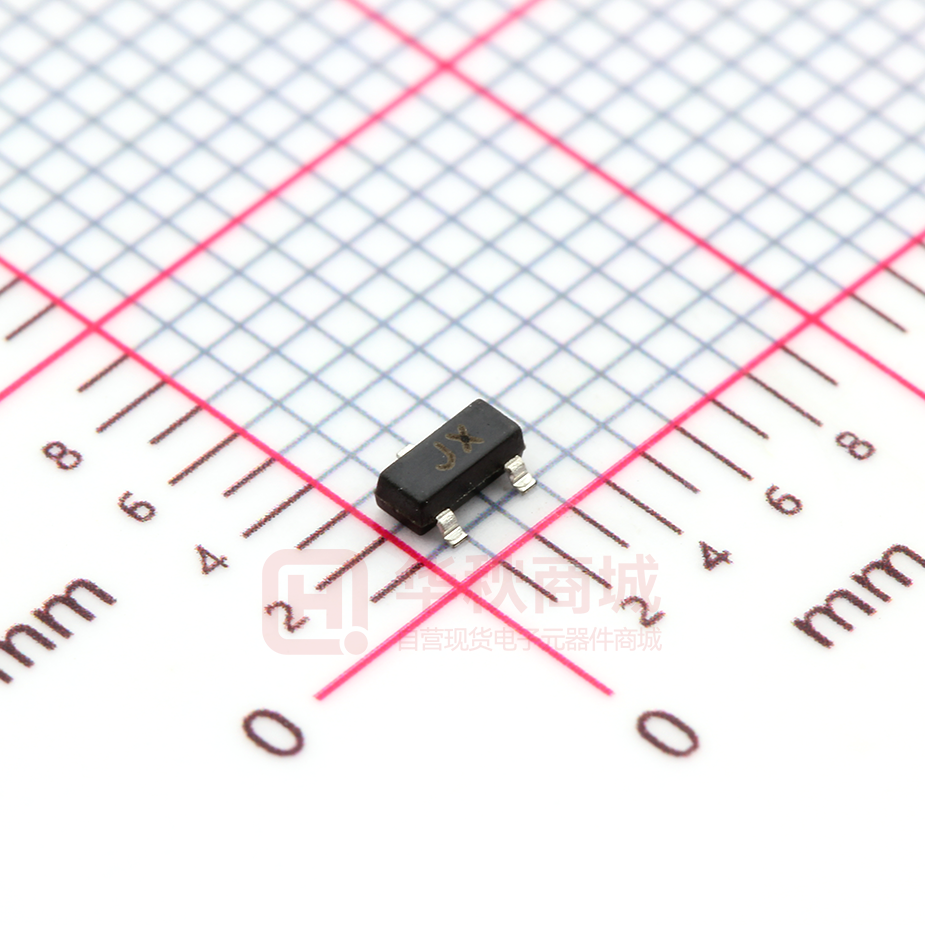

BAV170

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-23 Plastic-Encapsulate Diodes BAV170 Switching Diode SOT-23 FEATURES  Low Leakage Current  High Switching Speed APPLICATION  Low-leakage Current Applications in Surface Mounted Circuits MARKING:JX - JX + + MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Symbol Value Unit Repetitive Peak Reverse Voltage 85 V DC Blocking Voltage 75 V Forward Current(single diode ) 215 Forward Current(double diode ) 125 IFRM Repetitive Peak Forward Current 500 mA IFSM Non-repetitive Peak Forward Surge Current@ t =8.3ms 1.0 A PD Power Dissipation 250 mW Thermal Resistance from Junction to Ambient 500 ℃/W Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55~+150 ℃ VRRM VR IF RΘJA Parameter mA ELECTRICAL CHARACTERISTICS(Ta=25℃unless otherwise specified) Parameter Symbol Reverse voltage V(BR) Reverse current IR Forward voltage Total capacitance Reverse recovery time www.cj-elec.com VF Ctot trr Test conditions IR=100μA Min Typ Max 75 V VR=75V 5 IF=1mA 0.9 IF=10mA 1 IF=50mA 1.1 IF=150mA 1.25 VR=0,f=1MHz IF= IR=10mA, Irr=0.1×IR, RL=100Ω 1 Unit 2 nA V pF 3 μs B,Oct,2014 Typical Characteristics Forward 0.8 (nA) (mA) 100 IF Ta=100 ℃ REVERSE CURRENT IR T= a 2 5℃ a =1 00 ℃ 0.6 T FORWARD CURRENT Characteristics Reverse Characteristics 500 10 1 0.4 Ta=25 ℃ 0.4 0.2 0.6 0.8 1.0 FORWARD VOLTAGE VF 1.2 1.4 17 0 (V) 34 51 REVERSE VOLTAGE Capacitance Characteristics 68 VR 85 (V) Power Derating Curve 300 2.5 Ta=25℃ 250 PD (mW) 2.0 200 1.5 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) f=1MHz 1.0 0.5 150 100 50 0.0 0 0 5 10 REVERSE VOLTAGE www.cj-elec.com 15 VR 20 0 25 50 75 AMBIENT TEMPERATURE (V) 2 100 Ta 125 150 (℃) B,Oct,2014    Symbol A A1 A2 b c D E1 E e e1 L  Dimensions In Millimeters Max. Min. 1.050 1.250 0.000 0.100 1.050 1.150 0.300 0.500 0.100 0.200 2.820 3.020 1.500 1.700 2.650 2.950 0.950(BSC) 1.800 2.000 0.300 0.600 0° 8° Dimensions In Inches Min. Max. 0.041 0.049 0.000 0.004 0.041 0.045 0.012 0.020 0.004 0.008 0.111 0.119 0.059 0.067 0.104 0.116 0.037(BSC) 0.071 0.079 0.012 0.024 0° 8° -3L     3 B,Oct,2014     4 B,Oct,2014
