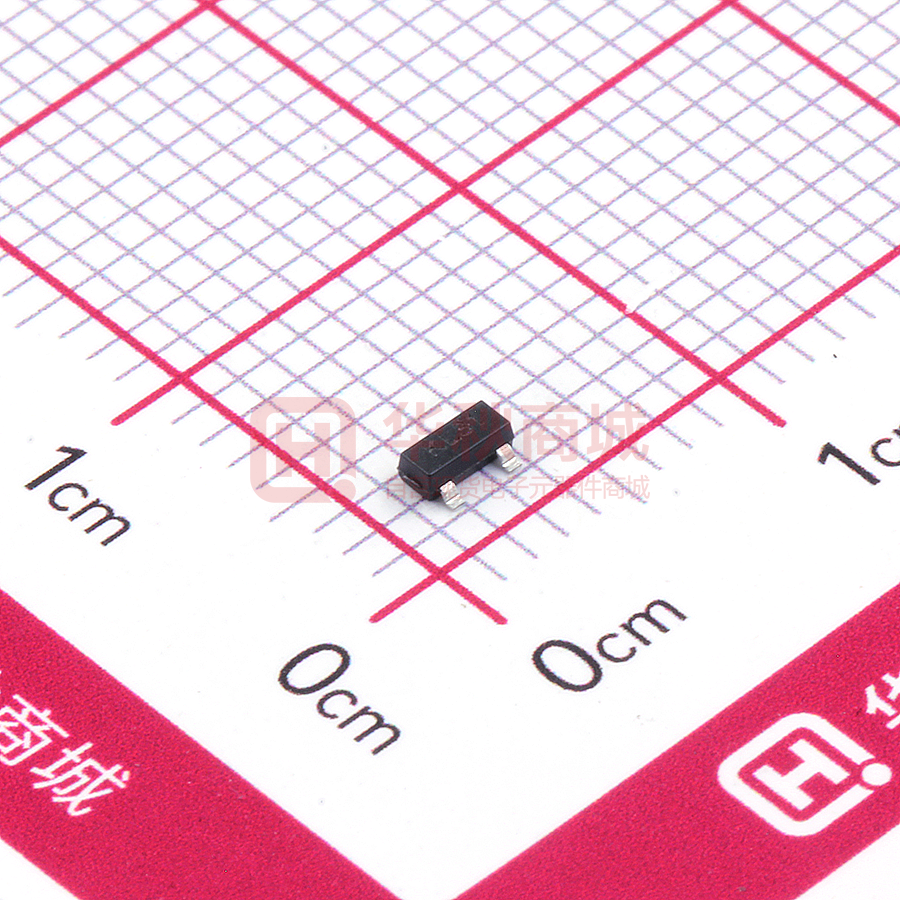

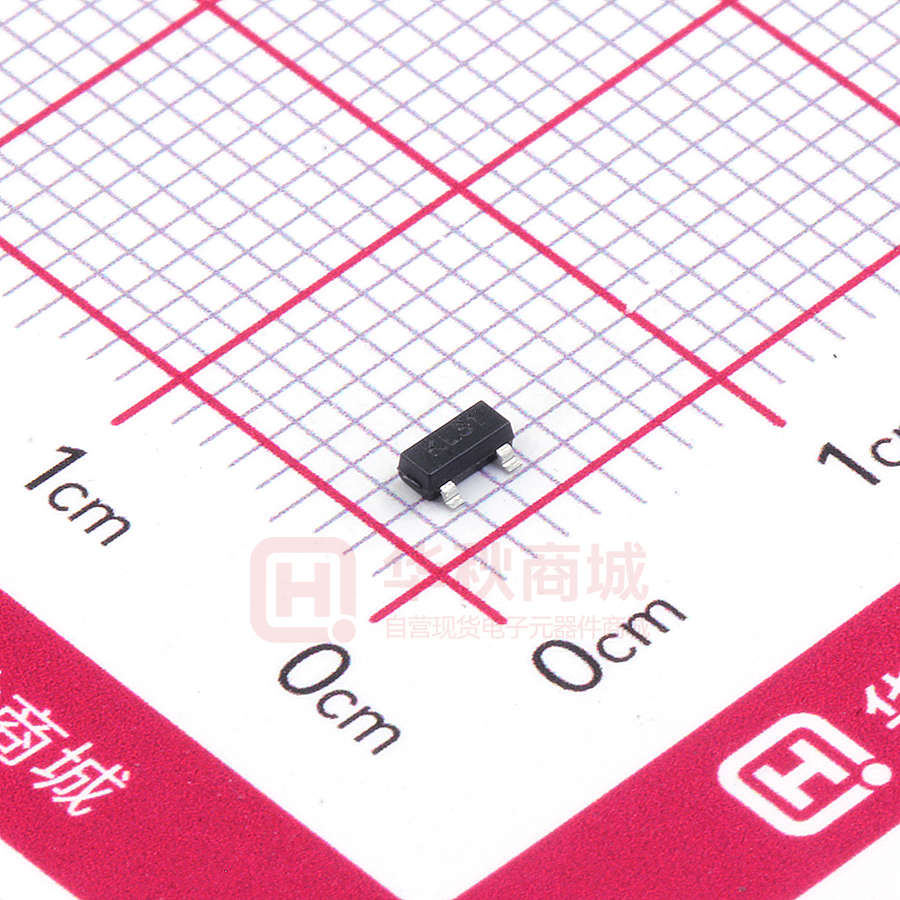

BAV23S

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-23 Plastic-Encapsulate Diodes BAV23A/C/S SWITCHING DIODE SOT-23 FEATURES Fast Switching Speed z High Conductance z For General Purpose Switching Applications z BAV23A BAV23C BAV23S MARKING: KT7 MARKING: KT6 MARKING:KL31 KT6 KL31 KT7 Solid dot = Green molding compound device, if none, the normal device KT7 KT6 KL31 MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Symbol Parameter Value Unit 250 V RMS Reverse Voltage 175 V Average Rectified Output Current 225 mA IFSM Non-repetitive Peak Forward Surge Current @ t= 8.3ms 1.7 A PD Power Dissipation 350 mW Thermal Resistance from Junction to Ambient 357 ℃/W Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55~+150 ℃ VRRM Peak Repetitive Reverse Voltage VRWM Working Peak Reverse Voltage VR(RMS) IO RΘJA ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified) Parameter Symbol Test conditions Min Typ Max Reverse voltage V(BR) IR=100μA Reverse current IR VR=250V 0.1 Forward voltage VF IF=100mA 1 IF=200mA 1.25 Total capacitance Ctot Reverse recovery time www.cj-elec.com trr 250 Unit V μA V VR=0V,f=1MHz 5 pF IF= IR=30mA, Irr=0.1×IR, RL=100Ω 50 ns 1 D,Jun,2014 Typical Characteristics Forward Characteristics Characteristics Reverse 1000 300 Pulsed Pulsed (nA) (mA) 100 REVERSE CURRENT IR ℃ T= a 2 5 FORWARD CURRENT T= a 1 00 ℃ IF 10 1 0.1 0.01 0.2 Ta=100℃ 100 10 Ta=25℃ 1 0.4 0.6 0.8 FORWARD VOLTAGE 1.0 VF 0 1.2 50 (V) 100 150 REVERSE VOLTAGE 200 250 (V) VR Power Derating Curve Capacitance Characteristics 1.6 400 (mW) f=1MHz 350 300 PD 1.4 1.2 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) Ta=25℃ 1.0 0.8 0.6 250 200 150 100 50 0 0 4 8 12 REVERSE VOLTAGE www.cj-elec.com 16 VR 20 0 (V) 25 50 75 100 AMBIENT TEMPERATURE 2 125 Ta 150 (℃) D,Jun,2014    Symbol A A1 A2 b c D E1 E e e1 L  Dimensions In Millimeters Max. Min. 1.050 1.250 0.000 0.100 1.050 1.150 0.300 0.500 0.100 0.200 2.820 3.020 1.500 1.700 2.650 2.950 0.950(BSC) 1.800 2.000 0.300 0.600 0° 8° Dimensions In Inches Min. Max. 0.041 0.049 0.000 0.004 0.041 0.045 0.012 0.020 0.004 0.008 0.111 0.119 0.059 0.067 0.104 0.116 0.037(BSC) 0.071 0.079 0.012 0.024 0° 8° -3L     3 DJun     4 DJun
