BAV70W

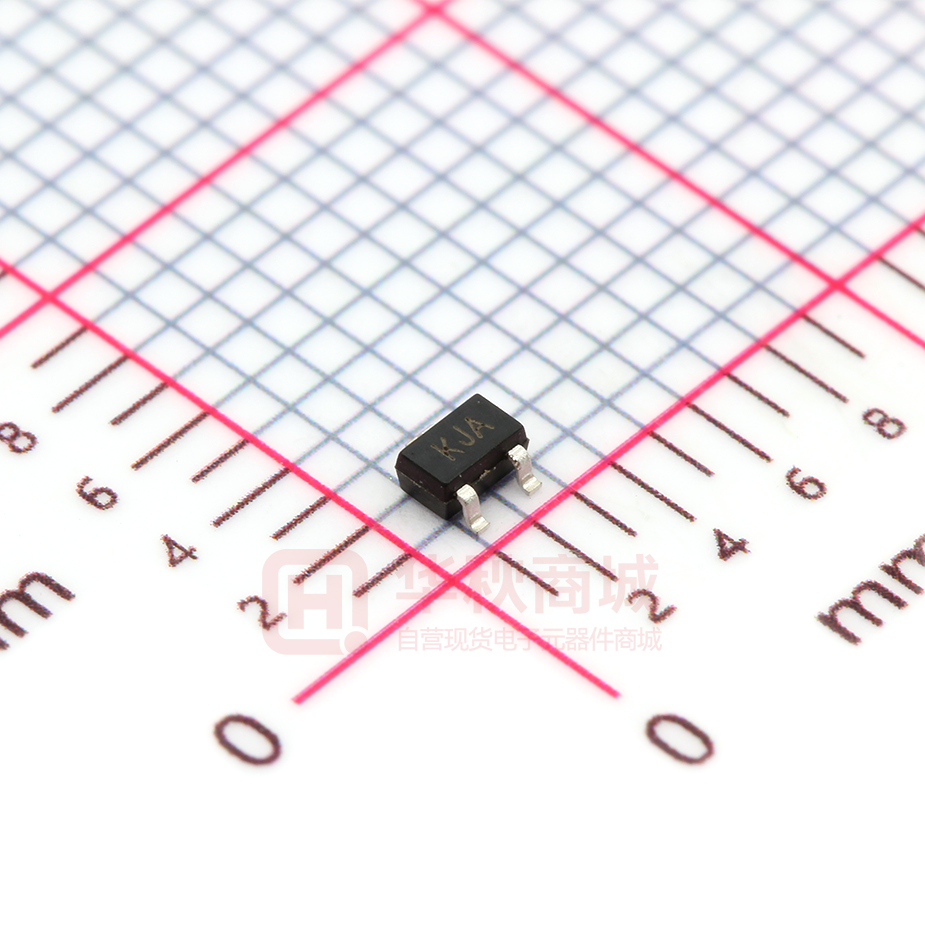

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-323 Plastic-Encapsulate Diodes BAV70W SOT-323 SWITCHING DIODE FEATURES z Fast Switching Speed z For General Purpose Switching Applications High Conductance z MARKING: KJA 1 3 2 KJA KJA Solid dot = Green molding compound device, if none,the normal device. Maximum Ratings @Ta=25℃ Parameter Symbol Limit Unit Non-Repetitive Peak Reverse Voltage VRM 100 V Peak Repetitive Peak Reverse Voltage VRRM Working Peak Reverse Voltage VRWM 75 V DC Blocking Voltage VR RMS Reverse Voltage VR(RMS) 53 V Forward Continuous Current IFM 300 mA Average Rectified Output Current IO 150 mA Non-Repetitive Peak Forward Surge Current @t=8.3ms IFSM 2.0 A Power Dissipation Pd 200 mW RθJA 625 ℃/W Junction Temperature Tj 150 ℃ Storage Temperature TSTG -55~+150 ℃ Thermal Resistance Junction to Ambient Electrical Ratings @Ta=25℃ Parameter Reverse breakdown voltage Forward voltage Reverse current Capacitance between terminals Reverse recovery time www.cj-elec.com Symbol Min V (BR) 75 Typ Max Unit Conditions V IR=100μA VF1 0.715 V IF=1mA VF2 0.855 V IF=10mA VF3 1.0 V IF=50mA VF4 1.25 V IF=150mA IR1 2.5 μA VR=75V IR2 25 nA VR=20V CT 2 pF VR=0V,f=1MHz trr 4 1 ns IF=IR=10mA Irr=0.1XIR,RL=100Ω B,Oct,2014 Typical Characteristics Forward Reverse Characteristics Characteristics 1000 300 100 (nA) REVERSE CURRENT IR FORWARD CURRENT 10 Ta=100℃ 100 Ta =2 5℃ Ta =1 00 ℃ 30 IF (mA) 300 3 1 30 10 Ta=25℃ 3 0.3 0.1 0.0 1 0.4 0.8 FORWARD VOLTAGE 1.2 VF 0 1.6 20 (V) 40 REVERSE VOLTAGE 60 VR 80 (V) Power Derating Curve Capacitance Characteristics 1.4 250 (mW) 200 PD 1.3 150 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) Ta=25℃ f=1MHz 1.2 1.1 1.0 100 50 0 0 5 10 REVERSE VOLTAGE www.cj-elec.com 15 VR 0 20 25 50 75 AMBIENT TEMPERATURE (V) 2 100 Ta 125 150 (℃) B,Oct,2014 SOT-323 Package Outline Dimensions Dimensions In Millimeters Min Max 0.900 1.100 0.000 0.100 0.900 1.000 0.200 0.400 0.080 0.150 2.000 2.200 1.150 1.350 2.150 2.450 0.650 TYP 1.200 1.400 0.525 REF 0.260 0.460 0° 8° Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Inches Min Max 0.035 0.043 0.000 0.004 0.035 0.039 0.008 0.016 0.003 0.006 0.079 0.087 0.045 0.053 0.085 0.096 0.026 TYP 0.047 0.055 0.021 REF 0.010 0.018 0° 8° SOT-323 Suggested Pad Layout www.cj-elec.com 3 B,Oct,2014 SOT-323 Tape and Reel www.cj-elec.com 4 B,Oct,2014
