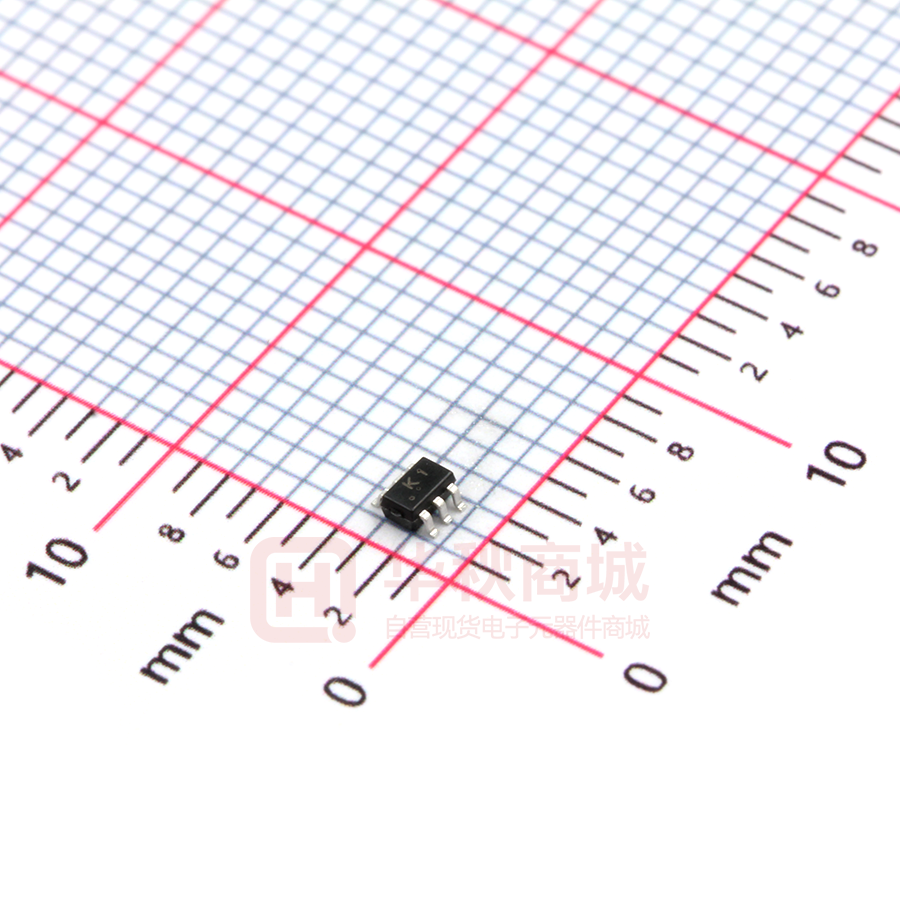

BAV99S

BAV99S

  • 厂商:

    JIANGSU(长晶)

  • 封装:

    SOT363

  • 描述:

    SOT-363塑料封装二极管

  • 数据手册
  • 价格&库存
BAV99S 数据手册
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-363 Plastic-Encapsulate Diodes BAV99S HIGH-SPEED SWITCHING DIODE SOT-363 FEATURES  Small Plastic Package  High Switching Speed  Low Capacitance  Two Electrically Isolated Series Configuration Arrays MARKING: K1 K1 Solid dot = Pin1 indicate. MAXIMUM RATINGS @( Ta=25℃ unless otherwise noted ) Symbol Limits Unit Repetitive Peak Reverse Voltage 85 V VR Reverse Voltage 75 V IF VRRM Parameter Forward Current 150 IFRM Repetitive Peak Forward Current 450 IFSM Non-Repetitive Peak Forward Surge Current @ t = 8.3ms 2.5 A PD Power Dissipation 200 mW Thermal Resistance from Junction to Ambient 625 ℃/W RΘJA Tj Junction Temperature 150 Tstg Storage Temperature -55~+150 mA ℃ ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified) Parameter Symbol Reverse voltage V(BR) Reverse current IR Forward voltage Total capacitance Reverse recovery time www.cj-elec.com VF Ctot trr Test conditions Max Unit VR=75V 1 μA IF=1mA 0.715 IF=10mA 0.855 IF=50mA 1 IF=150mA 1.25 VR=0,f=1MHz 1.5 pF 6 ns IR=100μA Min Typ 75 IF= IR=10mA, Irr=0.1×IR, RL=100Ω 1 V V C,Mar,2016 Typical Characteristics Forward Characteristics Reverse Characteristics 10000 (nA) 100 REVERSE CURRENT IR T= a 2 5℃ T= a 1 00 ℃ FORWARD CURRENT IF (mA) 300 10 1 0.0 Ta=100℃ 1000 100 Ta=25℃ 10 1 0.2 0.4 0.6 0.8 1.0 FORWARD VOLTAGE 1.2 1.4 1.6 20 0 VF (V) 40 60 REVERSE VOLTAGE 80 VR 100 (V) Power Derating Curve Capacitance Characteristics 1.1 250 f=1MHz 200 PD (mW) 1.0 0.9 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) Ta=25℃ 0.8 0.7 150 100 50 0.6 0 0 4 8 12 REVERSE VOLTAGE www.cj-elec.com 16 VR 20 0 (V) 25 50 75 AMBIENT TEMPERATURE 2 100 125 150 Ta (℃) C,Mar,2016 SOT-363 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.100 0.000 0.100 0.900 1.000 0.150 0.350 0.100 0.150 2.000 2.200 1.150 1.350 2.150 2.400 0.650 TYP 1.200 1.400 0.525 REF 0.260 0.460 0° 8° Dimensions In Inches Min Max 0.035 0.043 0.000 0.004 0.035 0.039 0.006 0.014 0.004 0.006 0.079 0.087 0.045 0.053 0.085 0.094 0.026 TYP 0.047 0.055 0.021 REF 0.010 0.018 0° 8° SOT-363 Suggested Pad Layout www.cj-elec.com 3 C,Mar,2016 SOT-363 Tape and Reel www.cj-elec.com 4 C,Mar,2016
BAV99S 价格&库存

很抱歉,暂时无法提供与“BAV99S”相匹配的价格&库存,您可以联系我们找货

免费人工找货
BAV99S
    •  国内价格
    • 10+0.21839
    • 100+0.19889
    • 500+0.17939
    • 1000+0.15989
    • 2000+0.14689
    • 4000+0.14299

    库存:3079
