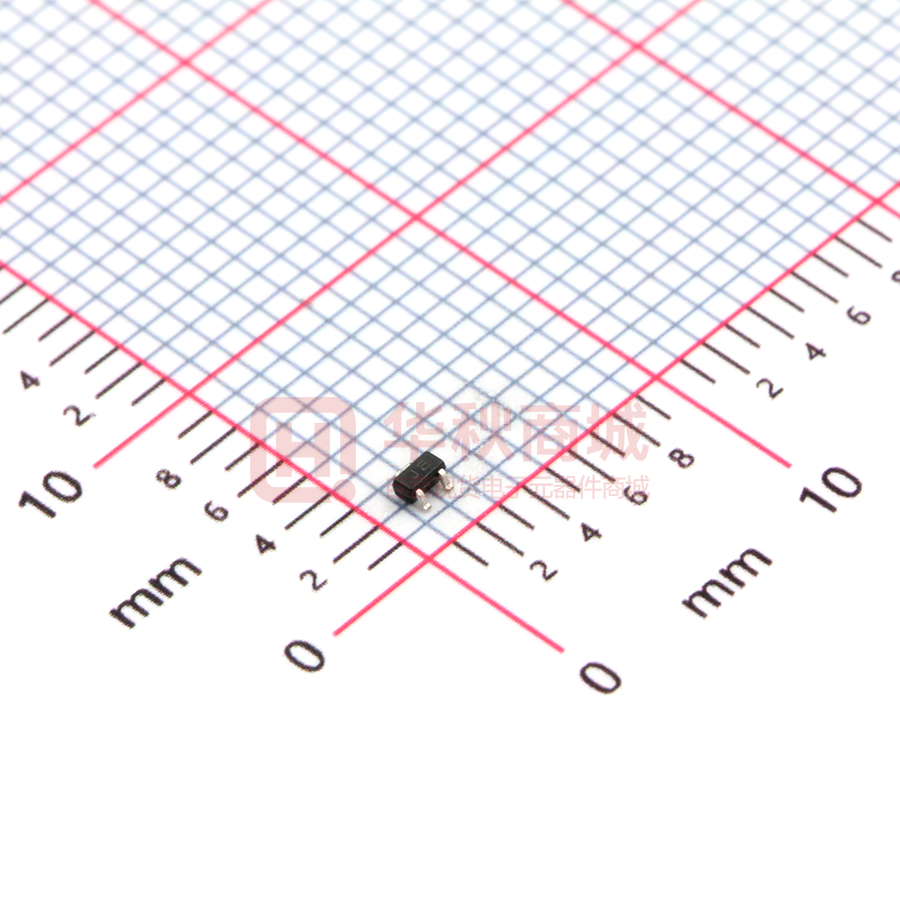

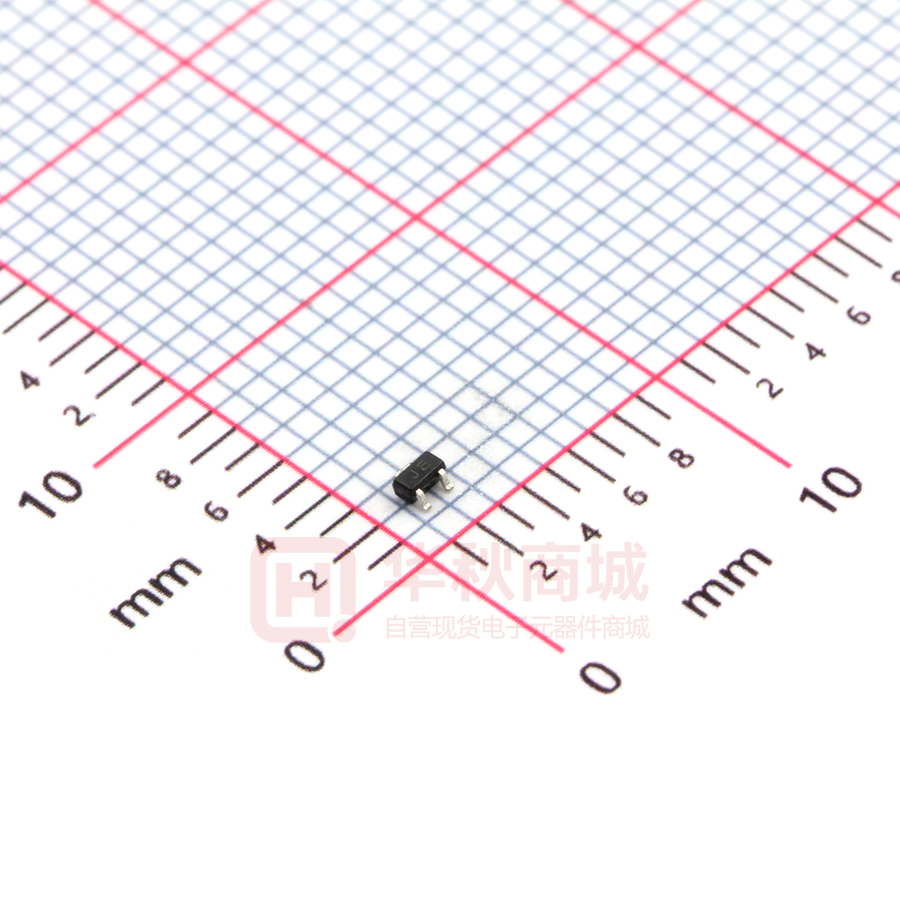

BAV99T

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-523 Plastic-Encapsulate Diode BAW56T/BAV70T/BAV99T SWITCHING DIODE SOT-523 FEATURES Fast Switching Speed z For General Purpose Switching Applications z High Conductance z MARKING:JD BAV99T BAV70 T BAW56T MARKING:JJ MARKING:JE JD JJ JE JD JJ JE Solid dot = Green molding compound device, if none, the normal device Maximum Ratings @Ta=25℃ Parameter Symbol Limit Unit Reverse Voltage VR 85 V Forward Current IF 75 mA IFSM 2.0 A PD 150 mW RθJA 833 ℃/W TJ 150 ℃ TSTG -55~+150 ℃ Non-Repetitive Peak Forward Surge Current @t=8.3ms Power Dissipation Thermal Resistance Junction to Ambient Junction Temperature Storage Temperature range ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Reverse breakdown voltage Symbol Test conditions Min Max Unit V(BR) IR= 1μA IR1 VR=75V 2 μA IR2 VR=25V 0.03 μA Forward voltage VF IF=1mA IF=10mA IF=50mA IF=150mA 715 855 1000 1250 mV Diode capacitance CD VR=0 1.5 pF Reverse recovery time t rr IF=IR=10mA Irr=0.1×IR,RL=100Ω 4 ns Reverse voltage leakage current www.cj-elec.com V 85 f=1MHz 1 B,Oct,2014 Typical Characteristics 3000 (nA) 100 30 T= a 2 5℃ 10 REVERSE CURRENT IR T= a 1 00 ℃ FORWARD CURRENT Characteristics 10000 IF (mA) Forward 300 3 1 0.3 Reverse Characteristics Ta=100℃ 1000 300 100 30 Ta=25℃ 10 3 0.1 0.0 1 0.4 0.8 1.2 FORWARD VOLTAGE VF 1.6 0 20 (V) 40 60 REVERSE VOLTAGE 80 VR 100 (V) Power Derating Curve Capacitance Characteristics 1.6 200 (mW) f=1MHz 150 PD 1.4 1.2 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) Ta=25℃ 1.0 0.8 0.6 100 50 0 0 4 8 12 REVERSE VOLTAGE www.cj-elec.com 16 VR 20 0 (V) 25 50 75 100 AMBIENT TEMPERATURE 2 125 Ta 150 (℃) B,Oct,2014 SOT-523 Package Outline Dimensions Symbol A A1 A2 b1 b2 c D E E1 e e1 L L1 θ Dimensions In Millimeters Max. Min. 0.700 0.900 0.000 0.100 0.700 0.800 0.150 0.250 0.250 0.350 0.100 0.200 1.500 1.700 0.700 0.900 1.450 1.750 0.500 TYP. 0.900 1.100 0.400 REF. 0.260 0.460 0° 8° Dimensions In Inches Min. Max. 0.028 0.035 0.000 0.004 0.028 0.031 0.006 0.010 0.010 0.014 0.004 0.008 0.059 0.067 0.028 0.035 0.057 0.069 0.020 TYP. 0.035 0.043 0.016 REF. 0.010 0.018 0° 8° SOT-523 Suggested Pad Layout www.cj-elec.com 3 B,Oct,2014 SOT-523 Tape and Reel www.cj-elec.com 4 B,Oct,2014
