BAV99W

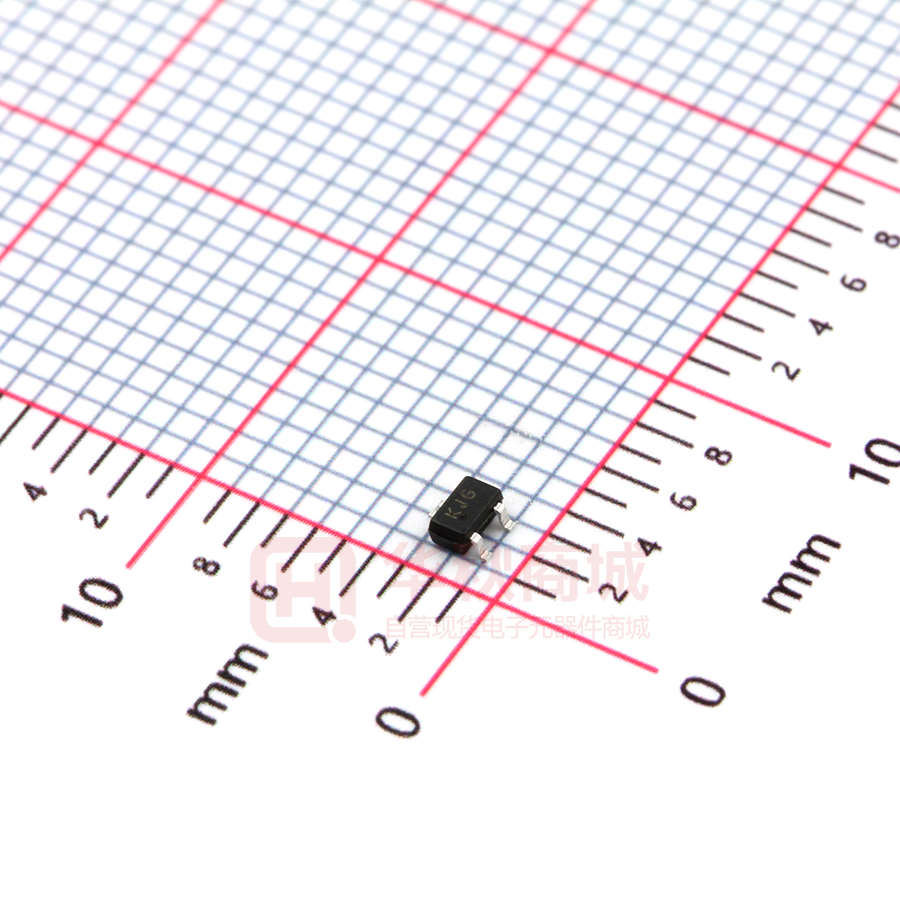

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-323 Plastic-Encapsulate Diode BAV99W SWITCHING DIODE SOT-323 FEATURES z For high-speed switching applications z Connected in series 1 3 MARKING: KJG 2 KJG KJG Solid dot = Green molding compound device, if none, the normal device Maximum Ratings @Ta=25℃ Parameter Symbol Limit Unit Reverse Voltage VR 75 V Forward Current IF  mA Non-Repetitive Peak Forward Surge Current @t=8.3ms IFSM Power Dissipation Thermal Resistance Junction to Ambient Junction Temperature Storage Temperature range A 2.0 PD  mW RθJA 625 ℃/W TJ 150 ℃ TSTG -55~+150 ℃ ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Reverse breakdown voltage Test Symbol V(BR) conditions Min Max 5 IR= 1μA Unit V IR1 VR=75V 2.5 μA IR2 VR=25V 25 nA Forward voltage VF IF=1mA IF=10mA IF=50mA IF=150mA 715 855 1000 1250 mV Diode capacitance CD VR=0  pF Reverse recovery time t rr IF=IR=10mA Irr=0.1×IR,RL=100Ω 4 ns Reverse voltage leakage current www.cj-elec.com f=1MHz 1 B,Oct,2014 Typical Characteristics Forward Reverse Characteristics Characteristics 1000 300 100 (nA) REVERSE CURRENT IR FORWARD CURRENT 10 Ta=100℃ 100 Ta =2 5℃ Ta =1 00 ℃ 30 IF (mA) 300 3 1 30 10 Ta=25℃ 3 0.3 0.1 0.0 1 0.4 0.8 FORWARD VOLTAGE 1.2 VF 1.6 0 20 (V) 40 REVERSE VOLTAGE 60 VR 80 (V) Power Derating Curve Capacitance Characteristics 250 1.4 (mW) 200 PD 1.3 150 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) Ta=25℃ f=1MHz 1.2 1.1 1.0 100 50 0 0 5 10 REVERSE VOLTAGE www.cj-elec.com 15 VR 20 0 25 50 75 AMBIENT TEMPERATURE (V) 2 100 Ta 125 150 (℃) B,Oct,2014 SOT-323 Package Outline Dimensions Dimensions In Millimeters Min Max 0.900 1.100 0.000 0.100 0.900 1.000 0.200 0.400 0.080 0.150 2.000 2.200 1.150 1.350 2.150 2.450 0.650 TYP 1.200 1.400 0.525 REF 0.260 0.460 0° 8° Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Inches Min Max 0.035 0.043 0.000 0.004 0.035 0.039 0.008 0.016 0.003 0.006 0.079 0.087 0.045 0.053 0.085 0.096 0.026 TYP 0.047 0.055 0.021 REF 0.010 0.018 0° 8° SOT-323 Suggested Pad Layout www.cj-elec.com 3 B,Oct,2014 SOT-323 Tape and Reel www.cj-elec.com 4 B,Oct,2014
