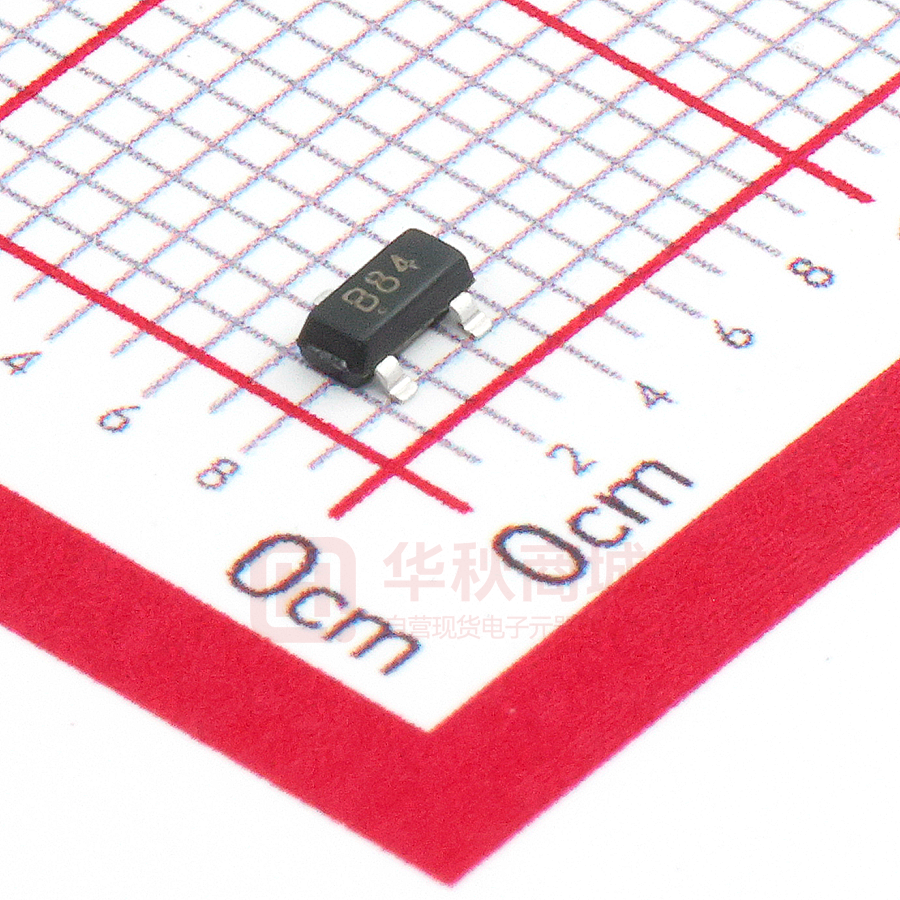

BSS84

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-23 Plastic-Encapsulate MOSFETs BSS84 P-CHANNEL MOSFET V(BR)DSS -50 V ID RDS(on)MAX SOT-23  8Ω@-10V  3 -0.13A 10Ω@ -5V     DESCRIPTION These miniature surface mount MOSFETs reduce power loss conserve energy, making this device ideal for use in small power management circuitry. 1 2 1. GATE 2. SOURCE 3. DRAIN FEATURE z Energy Efficient z Low Threshold Voltage z High-speed Switching z Miniature Surface Mount Package Saves Board Space APPLICATION z DC−DC converters,load switching, power management in portable and battery−powered products such as computers, printers, cellular and cordless telephones. MARKING Equivalent Circuit MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Parameter Symbol Value Unit Drain-Source Voltage VDS -50 V Gate-Source Voltage VGS ±20 V Continuous Drain Current ID -0.13 A Pulsed Drain Current (note 1) @tp
