JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD
SOD-323

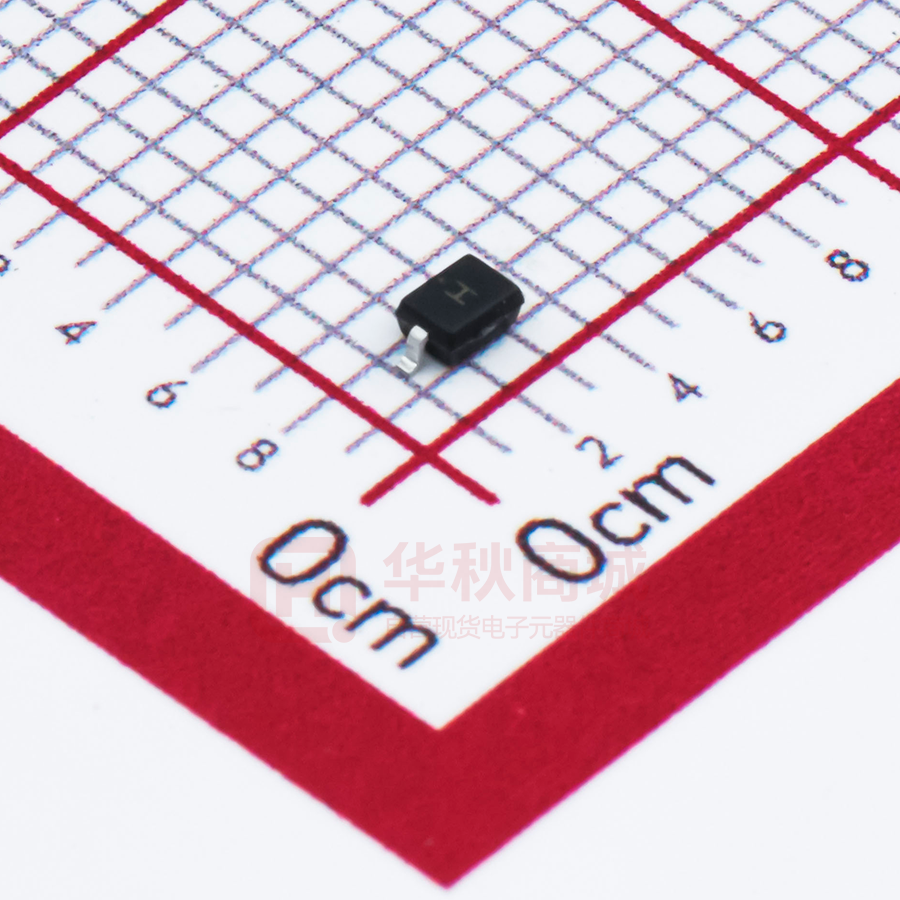

CESDBLC5V0D3
Plastic-Encapsulate Diodes
Bi-direction ESD Protection Diode
DESCRIPTION
SOD-323
Designed to protect voltage sensitive electronic components from ESD and other
transients. Excellent clamping capability, low leakage, low capacitance, and fast
response time provide best in class protection on designs that are exposed to ESD.
The combination of small size, low capacitance, and high level of ESD protection
makes them a flexible solution for applications such as HDMI, Display Port TM, and
MDDI interfaces. It is designed to replace multiplayer varistors (MLV) in consumer
equipments applications such as mobile phone, notebook, PAD, STB, LCD TV etc.
FEATURES
Bi-directional ESD protection of one line
Excellent package:1.7mm×1.3mm×1.0mm
Low capacitance: 12pF(Typ.)
Fast response time
Low reverse stand−off voltage: 5.0V
JESD22-A114-B ESD Rating of class 3B per human
Low reverse clamping voltage
Low leakage current
body model
IEC 61000-4-2 Level 4 ESD protection
APPLICATIONS
Computers and peripherals
Subscriber identity module(SIM) card protection
PAD
Portable electronics
Audio and video equipment
Other electronics equipments communi-
Cellular handsets and accessories
cation systems
MARKING
H = Device code
Front side
www.jscj-elec.com
1
Rev. - 2.1
CESDBLC5V0D3
CHANGJING ELEC.TECH.
MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted )
Parameter
Symbol
IEC 61000-4-2 ESD Voltage
Air Model
Contact Model
JESD22-A114-B ESD Voltage
Per Human Body Model
ESD Voltage
VESD(1)
Operation Junction and Storage Temperature Range
kV
±16
±0.4
50
W
(2)
5
A
TL
260
℃
TJ,Tstg
-55 ~ +150
℃
IPP
Lead Solder Temperature − Maximum (10 Second Duration)
±25
(2)
PPP
Peak Pulse Current
Unit
±25
Machine Model
Peak Pulse Power
Limit
(1).Device stressed with ten non-repetitive ESD pulses.
(2).Non-repetitive current pulse 8/20µs exponential decay waveform according to IEC61000-4-5.
ESD standards compliance
IEC61000-4-2 Standard
JESD22-A114-B Standard
Contact Discharge
Air Discharge
ESD Class
Human Body Discharge V
Level
Test Voltage kV
Level
Test Voltage kV
0
0~249
1
2
1
2
2
4
2
4
1A
1B
1C
250~499
500~999
1000~1999
3
6
3
8
4
8
4
15
2
3A
3B
2000~3999
4000~7999
8000~15999
ESD pulse waveform according to IEC61000-4-2
www.jscj-elec.com
8/20μs pulse waveform according to IEC 61000-4-5
2
Rev. - 2.1
CESDBLC5V0D3
CHANGJING ELEC.TECH.
ELECTRICAL PARAMETER
Symbol
Parameter
VC
Clamping Voltage @ IPP
IPP
Peak Pulse Current
VBR
Breakdown Voltage @ IT
IT
Test Current
IR
Reverse Leakage Current @ VRWM
VRWM
Reverse Standoff Voltage
V-I characteristics for a Bi-directional TVS
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Parameter
Symbol
Reverse stand off voltage
Test conditions
Min
Typ
(1)
VRWM
Reverse leakage current
=
IR
VRWM 5V
Breakdown voltage=
V(BR)
IT 1mA
5.8
(2)
VC
IPP 5A
Clamping voltage=
Junction capacitance
=
=
CJ
VR 0V,f 1MHz
12
Max
Unit
5
V
0.1
μA
7.8
V
10
V
15
pF
(1).Other voltages available upon request.
(2).Non-repetitive current pulse 8/20μs exponential decay waveform according to IEC61000-4-5
www.jscj-elec.com
3
Rev. - 2.1
CHANGJING ELEC.TECH.
CESDBLC5V0D3
TYPICAL CHARACTERISTICS
Reverse
100
Capacitance Characteristics
Characteristics
15
Pulsed
Ta=25℃
12
50
JUNCTION CAPACITANCE
CJ (pF)
(mA)
REVERSE CURRENT IR
f=1MHz
Ta=100℃
75
Ta=25℃
25
0
-25
9
6
-50
3
-75
-100
-8
-6
-4
-2
0
2
REVERSE VOLTAGE
VC ——
VR
4
6
0
8
(V)
0
1
2
3
REVERSE VOLTAGE
4
5
VR
6
(V)
IPP
10
Ta=25℃
tp=8/20us
CLAMPING VOLTAGE VC(V)
9
8
7
6
5
1
2
3
4
5
REVERSE PEAK PULSE CURRENT IPP (A)
www.jscj-elec.com
4
Rev. - 2.1
CHANGJING ELEC.TECH.
PACKAGE OUTLINE AND PAD LAYOUT INFORMATION
Dime
imen
nsio
ion
ns In M
Miilli
llim
meters
Min
Mi
n
Maxx
Ma
1.100
0.
0.000
000
0.100
1.000
0.
0.800
800
0.
0.250
250
0.350
0.
0.080
080
0.150
1.
1.200
200
1.400
1.
1.600
600
1.800
2.7
.7550
2.
2.500
500
0.
0.475
475 REF
0.
0.250
250
0.400
0°
8°
Symbol
A
A1
A2
b
c
D
E
E1
L
L1
θ
Dim
imeensions In In
Incches
Min
Mi
n
Maxx
Ma
0.0
.0443
0.00
0000
0.00
0044
0.03
.039
0.03
0311
0.01
0100
0.01
0144
0.00
0033
0.00
0066
0.04
0477
0.05
0555
0.06
0633
0.07
0711
0.09
0988
0.1
.1008
0.
0.019
019 REF
0.01
0100
0.01
0166
0°
8°
NOTICE
JSCJ reserve
reservess the right to make modifications,enhancements,improvements,corrections or other
changes without further notice to any product herein. JSCJ does not assume any liability arising
out of the application or use of any product described herein.
www.jscj-elec.com
5
Rev. - 2.1
CHANGJING ELEC.TECH.
ESDBLC5V0D3
TAPE AND REEL INFORMATION
www.jscj-elec.com
6
Rev. - 2.1
