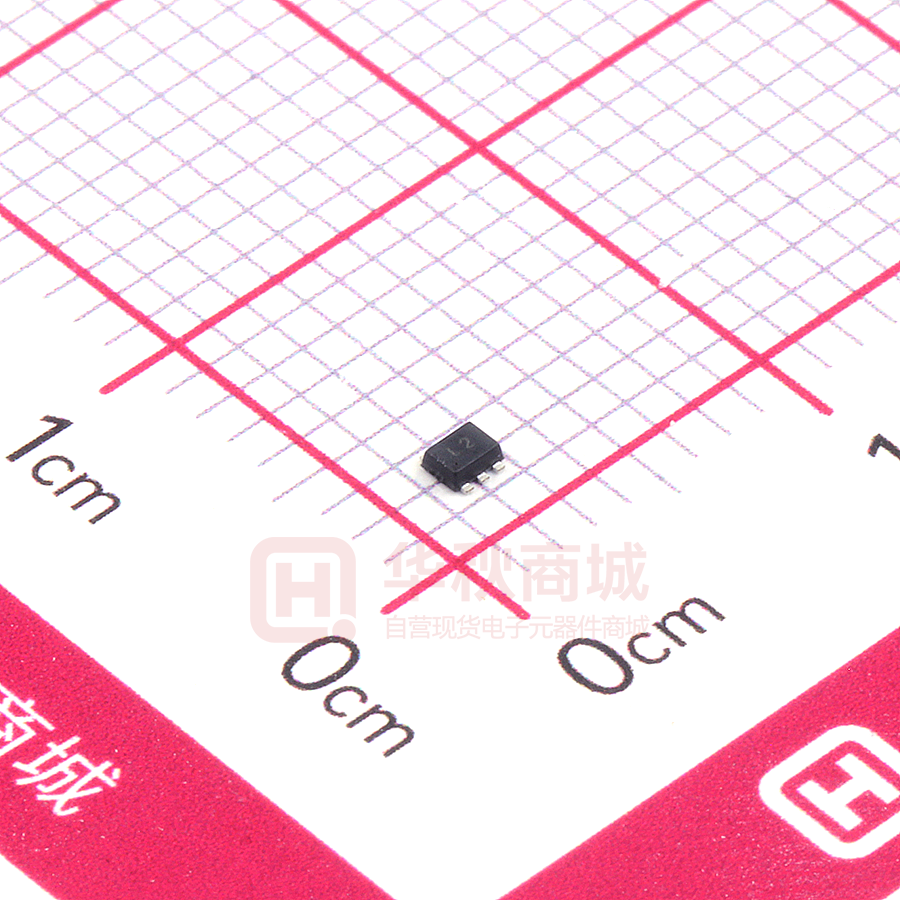

CESDLC5V0M5

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-563 Plastic-Encapsulate Diodes CESDLC5V0M5 Quad-direction ESD Protection Array DESCRIPTION SOT-563 Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, low capacitance, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, low capacitance, and high level of ESD protection makes them a flexible solution for applications such as HDMI, Display Port TM, and MDDI interfaces. It is designed to replace multiplayer varistors (MLV) in consumer equipments applications such as mobile phone, notebook, PAD, STB, LCD TV etc. FEATURES  Uni-directional ESD protection of five lines  Excellent package:1.6mm×1.2mm×0.6mm  Low capacitance: 10pF(Typ)  Fast response time  Low reverse stand−off voltage: 5V  JESD22-A114-B ESD Rating of class 3B per human  Low reverse clamping voltage  Low leakage current body model  IEC 61000-4-2 Level 3 ESD protection APPLICATIONS  Computers and peripherals  Portable electronics  Audio and video equipment  Other electronics equipments  Subscriber Identity Module (SIM) card protection  Cellular handsets and accessories communication systems MARKING L2 = Device code Solid dot=Pin1 indicator Front side www.cj-elec.com 1 C,Mar,2014 CHANGJIANG ELEC.TECH. CESDLC5V0M5 MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Parameter Symbol IEC 61000-4-2 ESD Voltage Air Model Contact Model JESD22-A114-B ESD Voltage Per Human Body Model ESD Voltage VESD(1) ±10 kV ±8 ±0.4 (2) 33 W (2) 2.5 A PPP Peak Pulse Current Unit ±10 Machine Model Peak Pulse Power Limit IPP Lead Solder Temperature − Maximum (10 Second Duration) TL 260 ℃ Junction Temperature Tj 150 ℃ Tstg -55 ~ +150 ℃ Storage Temperature Range (1).Device stressed with ten non-repetitive ESD pulses, Per channel(I/O to GND). (2).Non-repetitive current pulse 8/20µs exponential decay waveform according to IEC61000-4-5. ESD standards compliance IEC61000-4-2 Standard JESD22-A114-B Standard Contact Discharge Air Discharge ESD Class Human Body Discharge V Level Test Voltage kV Level Test Voltage kV 0 0～249 1 2 1 2 2 4 2 4 1A 1B 1C 250～499 500～999 1000～1999 3 6 3 8 4 8 4 15 2 3A 3B 2000～3999 4000～7999 8000～15999 ESD pulse waveform according to IEC61000-4-2 www.cj-elec.com 8/20μs pulse waveform according to IEC 61000-4-5 2 C,Mar,2014 CHANGJIANG ELEC.TECH. CESDLC5V0M5 ELECTRICAL PARAMETER Symbol Parameter VC Clamping Voltage @ IPP IPP Peak Pulse Current VBR Breakdown Voltage @ IT IT Test Current IR Reverse Leakage Current @ VRWM VRWM Reverse Standoff Voltage VF Forward Voltage@ IF IF Forward Current V-I characteristics for a uni-directional TVS ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified) Parameter Symbol Test conditions Min Typ Max Unit 5 V 7.2 V Per Diode Reverse stand off voltage Breakdown voltage （1） VRWM V(BR) IT=1mA 6.2 Reverse leakage current IR VRWM=5V 1.0 μA Forward voltage VF IF=10mA 0.9 V IPP=2.5A 13 V 12 pF Clamping voltage Junction capacitance （2） VC CJ VR=0V,f=1MHz 10 (1).Other voltages available upon request. (2).Non-repetitive current pulse 8/20μs exponential decay waveform according to IEC61000-4-5 www.cj-elec.com 3 C,Mar,2014 CHANGJIANG ELEC.TECH. CESDLC5V0M5 TYPICAL CHARACTERISTICS Forward Characteristics Reverse 100 Pulsed Pulsed 80 (mA) (mA) T= a 2 5℃ REVERSE CURRENT IR 10 T= a 1 00 ℃ IF FORWARD CURRENT Characteristics 100 1 60 Ta=25℃ Ta=100℃ 40 20 0.1 0.5 0.6 0.7 0.8 0.9 FORWARD VOLTAGE VC —— 15 VF 1.0 0 1.1 0 2 4 REVERSE VOLTAGE (V) 6 8 VR 10 (V) Capacitance Characteristics IPP 12 Ta=25℃ Ta=25℃ f=1MHz tp=8/20us JUNCTION CAPACITANCE CJ (pF) CLAMPING VOLTAGE VC(V) 10 12 9 6 8 6 4 3 0.0 0.5 1.0 1.5 2.0 2.5 2 3.0 1 2 REVERSE VOLTAGE REVERSE PEAK PULSE CURRENT IPP(A) www.cj-elec.com 0 4 3 4 VR 5 (V) C,Mar,2014 CESDLC5V0M5 CHANGJIANG ELEC.TECH. PACKAGE OUTLINE AND PAD LAYOUT INFORMATION SOT-563 Package Outline Dimensions SOT-563 Suggested Pad Layout www.cj-elec.com 5 C,May,2014 CESDLC5V0M5 CHANGJIANG ELEC.TECH. TAPE AND REEL INFORMATION www.cj-elec.com 6 C,May,2014
