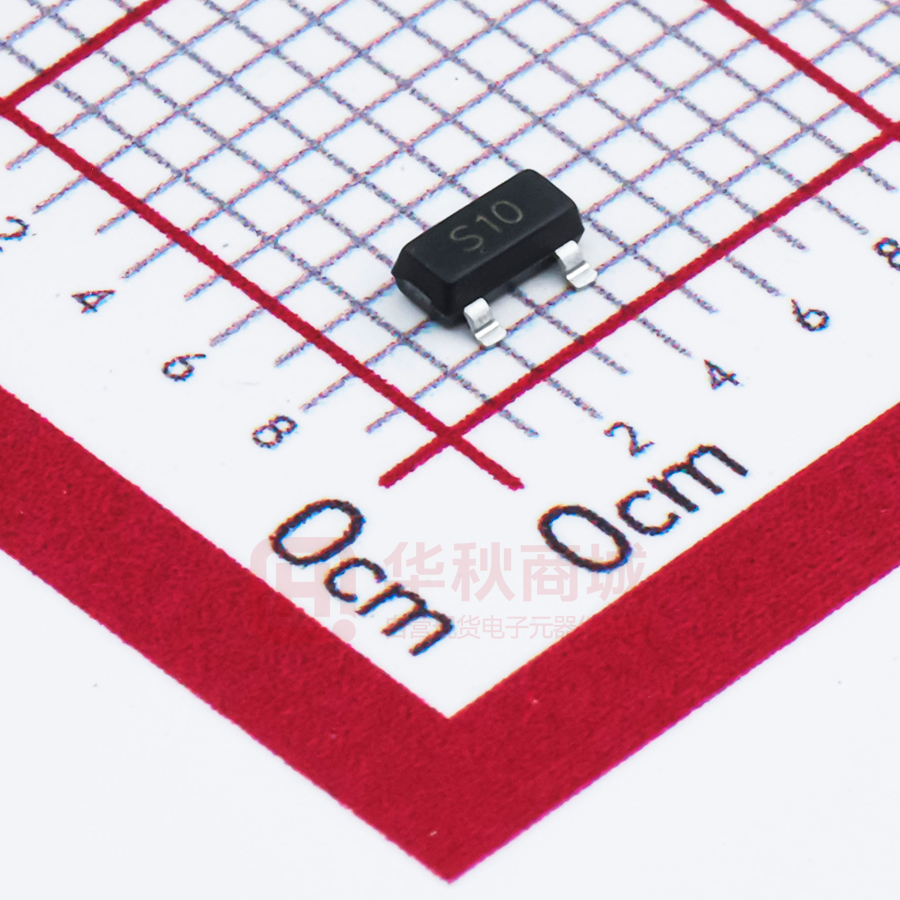

CJ2310

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-23 Plastic-Encapsulate MOSFETS CJ2310 N-Channel MOSFET V(BR)DSS ID RDS(on)MAX SOT-23   105mΩ@10V  60 V 3A 125mΩ@4.5V   1. GATE 2. SOURCE 3. DRAIN DESCRIPTION The CJ2310 uses advanced trench technology to provide excellent RDS(ON) , low gate charge and operation with gate voltage as low as 2.5V. This device is suitable for use as a battery protection or in other switching application. FEATURE  High power and current handing capability  Lead free product is acquired  Surface mount package APPLICATION  Battery Switch  DC/DC Converter MARKING Equivalent Circuit Maximum ratings (Ta=25℃ unless otherwise noted) Parameter Symbol Value Unit Drain-Source Voltage VDS 60 V Gate-Source Voltage VGS ±20 V Continuous Drain Current ID 3 A Pulsed Drain Current (note 1) IDM 10 A Power Dissipation PD 0.35 W RθJA 357 ℃/W Junction Temperature TJ 150 ℃ Storage Temperature TSTG -55~+150 ℃ Thermal Resistance from Junction to Ambient (note 2) www.cj-elec.com 1 E,Apr,2015 MOSFET ELECTRICAL CHARACTERISTICS Ta =25 ℃ unless otherwise specified Parameter Symbol Test Condition Min Typ Max Unit STATIC CHARACTERISTICS Drain-source breakdown voltage V (BR)DSS VGS = 0V, ID =250µA Zero gate voltage drain current IDSS VDS =60V,VGS = 0V Gate-body leakage current IGSS VGS =±20V, VDS = 0V Gate threshold voltage (note 3) VGS(th) VDS =VGS, ID =250µA Drain-source on-resistance (note 3) RDS(on) 60 V 1 µA ±100 nA 2 V VGS =10V, ID =3A 105 mΩ VGS =4.5V, ID =3A 125 mΩ Forward tranconductance (note 3) gFS VDS =15V, ID =2A Diode forward voltage (note 3) VSD IS=3A, VGS = 0V 0.5 S 1.4 1.2 V DYNAMIC CHARACTERISTICS (note 4) Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss 247 pF 34 pF 19.5 pF 6 ns VGS=10V,VDD=30V, 15 ns ID=1.5A,RGEN=1Ω 15 ns tf 10 ns Total Gate Charge Qg 6 nC Gate-Source Charge Qgs 1 nC Gate-Drain Charge Qgd 1.3 nC VDS =30V,VGS =0V,f =1MHz SWITCHING CHARACTERISTICS (note 4) Turn-on delay time Turn-on rise time Turn-off delay time Turn-off fall time td(on) tr td(off) VDS =30V,VGS =4.5V,ID =3A Notes : 1. Repetitive rating : Pulse width limited by junction temperature. 2. Surface mounted on FR4 board , t≤10s. 3. Pulse Test : Pulse Width≤300µs, Duty Cycle≤0.5%. 4. Guaranteed by design, not subject to producting. www.cj-elec.com 2 E,Apr,2015 Typical Characteristics Transfer Characteristics Output Characteristics 15 8 Pulsed VDS=5.0V Pulsed (A) DRAIN CURRENT DRAIN CURRENT VGS=2.5V 5 0 1 2 3 4 DRAIN TO SOURCE VOLTAGE RDS(ON) —— VDS Ta=100℃ 4 2 VGS=2.0V 0 Ta=25℃ 6 ID 10 ID (A) VGS=5V、4V、3.0V 0 5 0 1 (V) 2 3 GATE TO SOURCE VOLTAGE ID 140 RDS(ON) 400 —— 4 VGS (V) VGS Ta=25℃ Ta=25℃ (mΩ) (mΩ) VGS=4.5V 300 RDS(ON) 100 ON-RESISTANCE RDS(ON) ON-RESISTANCE Pulsed Pulsed 120 80 VGS=10V 60 200 ID=3A 100 40 20 0 0.5 2 4 6 DRAIN CURRENT 8 ID 10 0 4 6 8 GATE TO SOURCE VOLTAGE (A) IS —— VSD 10 2 VGS 10 (V) Threshold Voltage 1.2 Ta=25℃ Pulsed (V) VTH 1 THRESHOLD VOLTAGE SOURCE CURRENT IS (A) 1.1 0.1 0.01 1.0 ID=250uA 0.9 0.8 0.7 0.6 1E-3 0.2 0.4 0.6 0.8 SOURCE TO DRAIN VOLTAGE 1.0 VSD (V) 1.2 0.5 25 50 75 JUNCTION TEMPERATURE 100 TJ 125 (℃ )  3 E,Apr,2015 SOT-23 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° SOT-23 Suggested Pad Layout www.cj-elec.com 4 E,Apr,2015 SOT-23 Tape and Reel SOT-23 Tape and reel SOT-23 Embossed Carrier Tape P0 d P1 Packaging Description: SOT-23 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). B W A F E C A A P A-A Dimensions are in millimeter Pkg type A B C d E F P0 P P1 W SOT-23 3.15 2.77 1.22 Ø1.50 1.75 3.50 4.00 4.00 2.00 8.00 SOT-23 Tape Leader and Trailer Trailer Tape Leader Tape 100±2 Empty Pockets Components 50±2 Empty Pockets SOT-23 Reel D I G W2 3000 H 2500 2000 1500 1000 D2 D1 500 W1 Dimensions are in millimeter Reel Option D D1 D2 G H I W1 W2 7''Dia Ø178.00 54.40 13.00 R78.00 R25.60 R6.50 9.50 12.30 G.W.(kg) REEL Reel Size Box Box Size(mm) Carton Carton Size(mm) 3000 pcs 7 inch 30,000 pcs 203×203×195 120,000 pcs 438×438×220 www.cj-elec.com 5 E,Apr,2015
