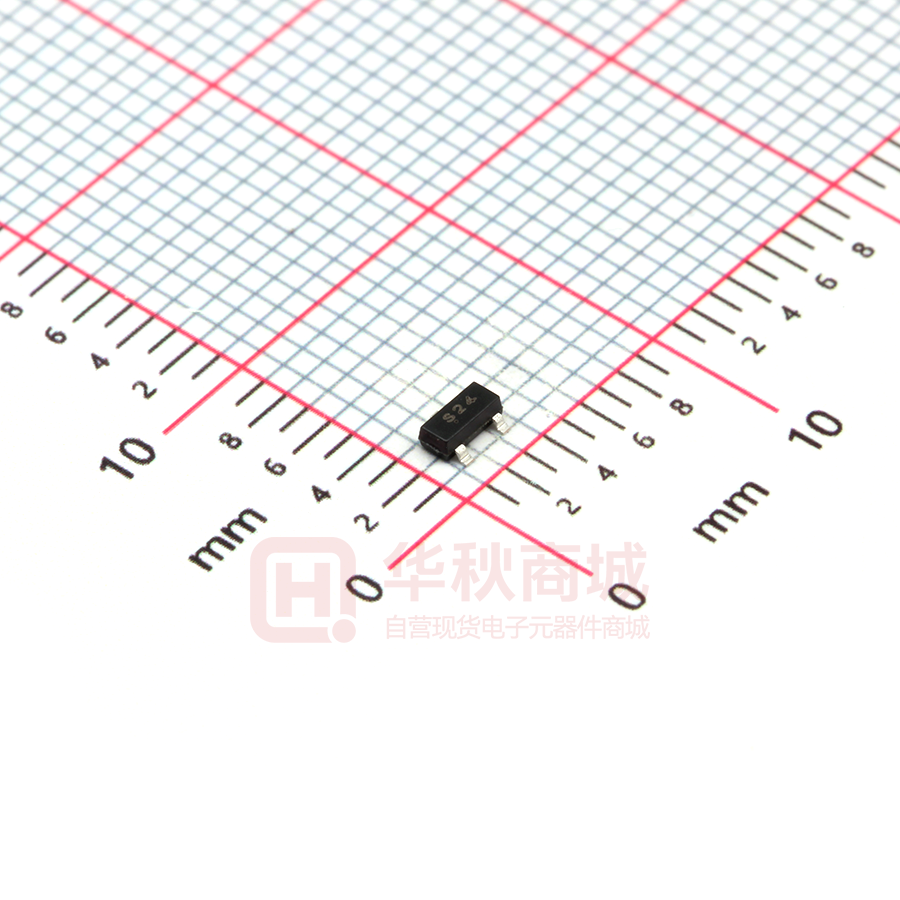

CJ2324

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOT-23 Plastic-Encapsulate MOSFETS CJ2324 N-Channel MOSFET V(BR)DSS SOT-23 ID RDS(on)MAX 234mΩ@10V 100 V 267mΩ@ 6V  2A 1. GATE 278mΩ@4.5V 2. SOURCE 3. DRAIN FEATURE z TrenchFET Power MOSFET z Low RDS(ON) z Surface Mount Package MARKING APPLICATION z DC/DC Converters z Load Switch z LED Backlighting in LCD TVs Equivalent Circuit ABSOLUTE MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Parameter Symbol Value Unit Drain-Source Voltage VDS 100 V Gate-Source Voltage VGS ±20 V ID 2 A Pulsed Drain Current IDM* 8 A Maximum Power Dissipation PD Thermal Resistance from Junction to Ambient RθJA 357 ℃/W TJ,TSTG -55~+150 ℃ TL 260 ℃ Continuous Drain Current Operation Junction and Storage Temperature Range Lead Temperature for Soldering Purposes(1/8’’ from case for 10 s) 0.35 W *Repetitive rating：Pluse width limited by junction temperature. www.jscj-elec.com 1 Rev. - 2.0 MOSFET ELECTRICAL CHARACTERISTICS Ta =25 ℃ unless otherwise specified Parameter Symbol Test Condition Min Typ Max Unit STATIC PARAMETERS Drain-source breakdown voltage V(BR)DSS VGS = 0V, ID =250µA Zero gate voltage drain current IDSS VDS =100V,VGS = 0V 1 µA Gate-body leakage current IGSS VGS =±20V, VDS = 0V ±100 nA VGS(th) VDS =VGS, ID =250µA 2.8 V Gate threshold voltage(note 1) Drain-source on-resistance (note 1) RDS(on) 100 V 1.2 VGS =10V, ID =1.5A 195 234 mΩ VGS =6V, ID =1A 200 267 mΩ VGS =4.5V, ID =0.5A 208 278 mΩ 2 Forward tranconductance (note 1) gFS VDS =20V, ID =1.5A Diode forward voltage (note 1) VSD IS=1.3A, VGS = 0V S 1.2 V DYNAMIC PARAMETERS (note2) Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss Gate Resistance Rg VDS =50V,VGS =0V,f =1MHz 190 pF 22 pF 13 pF 2.8 Ω 45 ns VDD=50V,VGEN=4.5V 39 ns RL=39Ω,RG=1Ω,ID=1.3A 26 ns tf 20 ns Total Gate Charge Qg 5.8 nC Gate-Source Charge Qgs Gate-Drain Charge Qgd 0.3 F=1MHz SWITCHING PARAMETERS (note 2) Turn-on delay time Turn-on rise time Turn-off delay time Turn-off fall time Notes : td(on) tr td(off) VDS =50V,VGS =4.5V,ID=1.6A 0.75 nC 1.4 nC 1. Pulse Test : Pulse width≤300μs, duty cycle≤0.5%. 2. Guaranteed by design, not subject to production testing. www.jscj-elec.com 2 Rev. - 2.0 Typical Characteristics Output Characteristics 10 Transfer Characteristics 5.0 Pulsed 9 VGS=8V,10V,12V (A) ID 7 VGS=3.8V 6 5 VGS=3.5V 4 3 2 0 1 2 3 DRAIN TO SOURCE VOLTAGE RDS(ON) —— 280 4 2.5 Ta=25℃ Ta=100℃ 2.0 1.5 VDS 0.0 5 0 1 2 (V) 3 4 5 GATE TO SOURCE VOLTAGE ID RDS(ON) 900 —— VGS 6 (V) VGS 800 VGS=4.5V 220 (mΩ) 240 700 RDS(ON) 260 600 ON-RESISTANCE (mΩ) RDS(ON) 3.0 0.5 Ta=25℃ Pulsed ON-RESISTANCE 3.5 1.0 VGS=3V 1 0 Pulsed 4.0 DRAIN CURRENT DRAIN CURRENT ID (A) 8 VDS=3V 4.5 200 VGS=10V 500 Ta=100℃ Pulsed 400 300 Ta=25℃ Pulsed 200 VGS=6V 180 ID=0.8A 100 160 0 1 2 3 4 DRAIN CURRENT ID 0 5 2 4 6 8 GATE TO SOURCE VOLTAGE (A) IS —— VSD 6 0 VGS 10 (V) Threshold Voltage 2.1 2.0 VTH Ta=100℃ Pulsed THRESHOLD VOLTAGE SOURCE CURRENT IS (A) (V) 1 Ta=25℃ Pulsed 0.1 0.01 1.9 1.8 ID=250uA 1.7 1.6 1.5 1E-3 0.0 0.2 0.4 0.6 0.8 1.0 SOURCE TO DRAIN VOLTAGE www.jscj-elec.com 1.2 1.4 1.4 25 1.6 VSD (mV) 50 75 JUNCTION TEMPERATURE 3 100 TJ 125 (℃ ) Rev. - 2.0 SOT-23 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° SOT-23 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 4 Rev. - 2.0 SOT-23 Tape and Reel SOT-23 Tape and reel SOT-23 Embossed Carrier Tape P0 d P1 E C B W F A A A P Packaging Description: SOT-23 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). A-A Dimensions are in millimeter Pkg type A B C d E F P0 P P1 W SOT-23 3.15 2.77 1.22 Ø1.50 1.75 3.50 4.00 4.00 2.00 8.00 SOT-23 Tape Leader and Trailer Trailer Tape Leader Tape 100±2 Empty Pockets Components 50±2 Empty Pockets SOT-23 Reel D I G W2 3000 H 2500 2000 1500 1000 D2 D1 500 W1 Dimensions are in millimeter Reel Option D D1 D2 G H I W1 W2 7''Dia Ø178.00 54.40 13.00 R78.00 R25.60 R6.50 9.50 12.30 G.W.(kg) REEL Reel Size Box Box Size(mm) Carton Carton Size(mm) 3000 pcs 7 inch 30,000 pcs 203×203×195 120,000 pcs 438×438×220 www.jscj-elec.com 5 Rev. - 2.0
