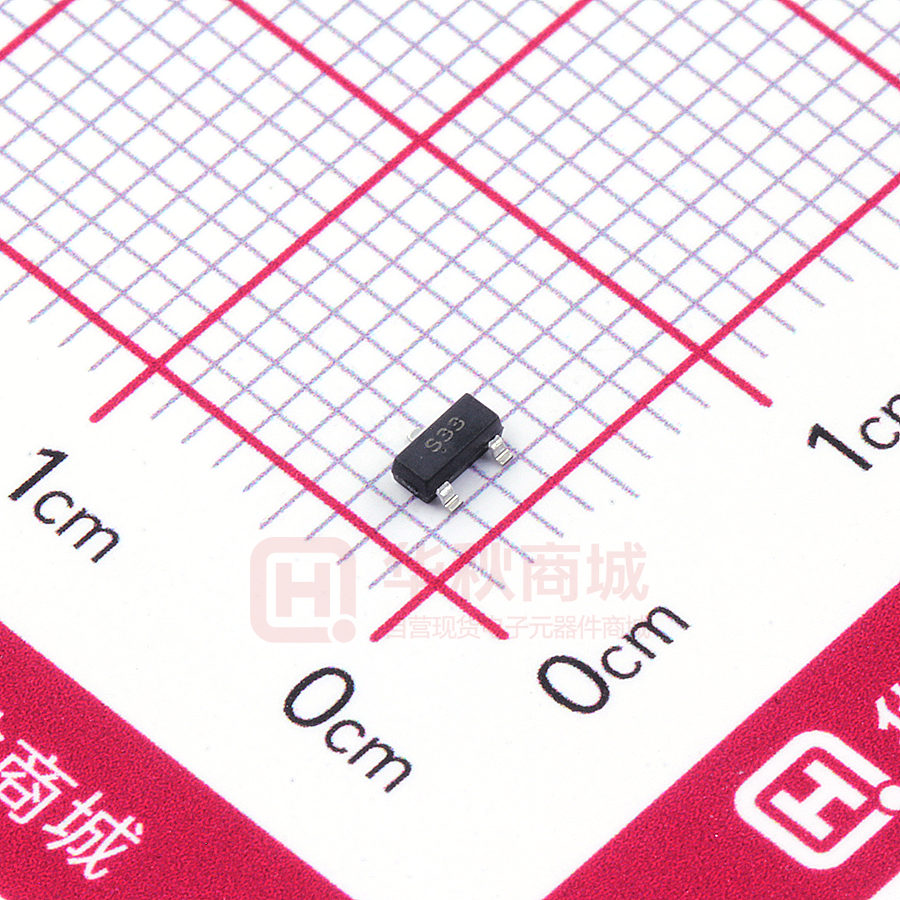

CJ2333

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD 627 Plastic-Encapsulate MOSFETS CJ 3-channel MOSFET V(BR)DSS ID RDS(on)MAX SOT-23 28mΩ@-4.5V 32mΩ@-3.7V -6A 40mΩ@-2.5V -12V 1. GATE 2. SOURCE 3. DRAIN 63mΩ@-1.8V 150mΩ@-1.5V FEATURE  TrenchFET Power MOSFET  Excellent RDS(on) and Low Gate Charge APPLICATION  DC/DC Converter  Load Switch for Portable Devices  Battery Switch MARKING Equivalent Circuit ABSOLUTE MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Parameter Symbol Value Unit Drain-Source Voltage VDS -12 V Gate-Source Voltage VGS ±8 V a A Continuous Drain Current ID -6 Pulsed Drain Current (t=300µs) IDM -20 Power Dissipation PD RθJA Thermal Resistance from Junction to Ambient A b 0.35 a W 1.1 W 357 b ℃/W a ℃/W 113 Junction Temperature TJ 150 ℃ Storage Temperature TSTG -55~ +150 ℃ a. Device mounted on FR-4 substrate board, with minimum recommended pad layout, single side. b. Device mounted on no heat sink. www.cj-elec.com 1 B,Apr,2015 026)(7(/(&75,&$/&+$5$&7(5,67,&6 Ta =25 Я unless otherwise specified Parameter Test Condition Symbol Min Typ Max Unit Static Characteristics Drain-source breakdown voltage V(BR)DSS VGS = 0V, ID =-250µA Zero gate voltage drain current IDSS VDS =-12V,VGS = 0V -1 µA Gate-body leakage current IGSS VGS =±8V, VDS = 0V ±0.1 µA -1 V Gate threshold voltage (note 1) Drain-source on-resistance (note 1) Forward tranconductance (note 1) VGS(th) RDS(on) gFS VDS =VGS, ID =-250µA -12 V -0.4 VGS =-4.5V, ID =-5A 28 VGS =-3.7V, ID =-4.6A 32 VGS =-2.5V, ID =-4.3A 40 VGS =-1.8V, ID =-1A 63 VGS =-1.5V, ID =-0.5A 150 VDS =-5V, ID =-5A mΩ 18 S 1275 pF 255 pF 236 pF Dynamic characteristics (note 2) Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss Gate resistance Rg Total Gate Charge Qg Gate-Source Charge Qgs Gate-Drain Charge Turn-on delay time Turn-on rise time Turn-off delay time Turn-off fall time VDS =-6V,VGS =0V,f =1MHz f =1MHz 1.9 14 19 Ω 21 nC 2.3 nC Qgd 3.6 nC td(on) 26 40 ns VDD=-6V,VGEN=-4.5V,ID=-4A 24 40 ns RL=6Ω,RGEN=1Ω 45 70 ns 20 35 ns -1.4 A -20 A -1.2 V 24 48 ns 8 16 nC tr td(off) VDS =-6V,VGS =-4.5V,ID=-5A tf Source-Drain Diode characteristics Diode forward current IS Diode pulsed forward current ISM Diode Forward voltage (note 1) VDS Diode reverse recovery time (note 2) trr Diode reverse recovery charge (note 2) Qrr Notes : TC=25℃ VGS =0V, IS=-4A IF=-4A,dI/dt=100A/µs 1. Pulse test; pulse width≤300μs, duty cycle≤2%. 2. Guaranteed by design, not subject to production testing. ZZZFMHOHFFRP  B,Apr,2015 7\SLFDO&KDUDFWHULVWLFV Output Characteristics Transfer Characteristics -20 -20 VGS = -5V、 -4V、 -3V、-2.5V、-2V VDS=-3V -16 -12 DRAIN CURRENT DRAIN CURRENT ID ID (A) (A) -16 VGS=-1.5V -8 -4 -0 Ta=25℃ -12 -8 -4 -0 -1 -2 -3 DRAIN TO SOURCE VOLTAGE -4 VDS -0 -0.0 -5 -0.5 (V) -1.0 -3.0 -5 -6 (m) 80 (m) VGS=-1.5V RDS(ON) 50 40 ON-RESISTANCE RDS(ON) ON-RESISTANCE -2.5 (V) 90 Pulsed VGS=-1.8V 30 VGS=-2.5V 20 VGS=-3.7V,-4.5V -1 -2 -3 -4 ID ID=-5A 70 60 50 40 Ta=100℃ 30 20 Ta=25℃ 10 -5 DRAIN CURRENT -6 -7 0 -8 -0 (A) -1 -2 VGS (V) -0.8 VTH (V) -1.0 Ta=100℃ THRESHOLD VOLTAGE -1 Ta=25℃ -0.1 -0.2 -0.4 -0.6 -0.8 SOURCE TO DRAIN VOLTAGE ZZZFMHOHFFRP -4 Threshold Voltage IS —— VSD -0.01 -0.0 -3 GATE TO SOURCE VOLTAGE -10 IS (A) VGS 100 Ta=25℃ 10 -2.0 RDS(ON) —— VGS RDS(ON) —— ID 60 -1.5 GATE TO SOURCE VOLTAGE 70 SOURCE CURRENT Ta=100℃ -1.0 VSD (V) -1.2 -1.4 -0.6 ID=-250uA -0.4 -0.2 -0.0 25 50 75 JUNCTION TEMPERATURE 100 TJ 125 (℃ ) 3  B,Apr,2015 SOT-23 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° SOT-23 Suggested Pad Layout www.cj-elec.com 4 B,Apr,2015 SOT-23 Tape and Reel SOT-23 Tape and reel SOT-23 Embossed Carrier Tape P0 d P1 Packaging Description: SOT-23 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). B W A F E C A A P A-A Dimensions are in millimeter Pkg type A B C d E F P0 P P1 W SOT-23 3.15 2.77 1.22 Ø1.50 1.75 3.50 4.00 4.00 2.00 8.00 SOT-23 Tape Leader and Trailer Trailer Tape Leader Tape 100±2 Empty Pockets Components 50±2 Empty Pockets SOT-23 Reel D I G W2 3000 H 2500 2000 1500 1000 D2 D1 500 W1 Dimensions are in millimeter Reel Option D D1 D2 G H I W1 W2 7''Dia Ø178.00 54.40 13.00 R78.00 R25.60 R6.50 9.50 12.30 G.W.(kg) REEL Reel Size Box Box Size(mm) Carton Carton Size(mm) 3000 pcs 7 inch 30,000 pcs 203×203×195 120,000 pcs 438×438×220 www.cj-elec.com 5 B,Apr,2015
