CJ3402

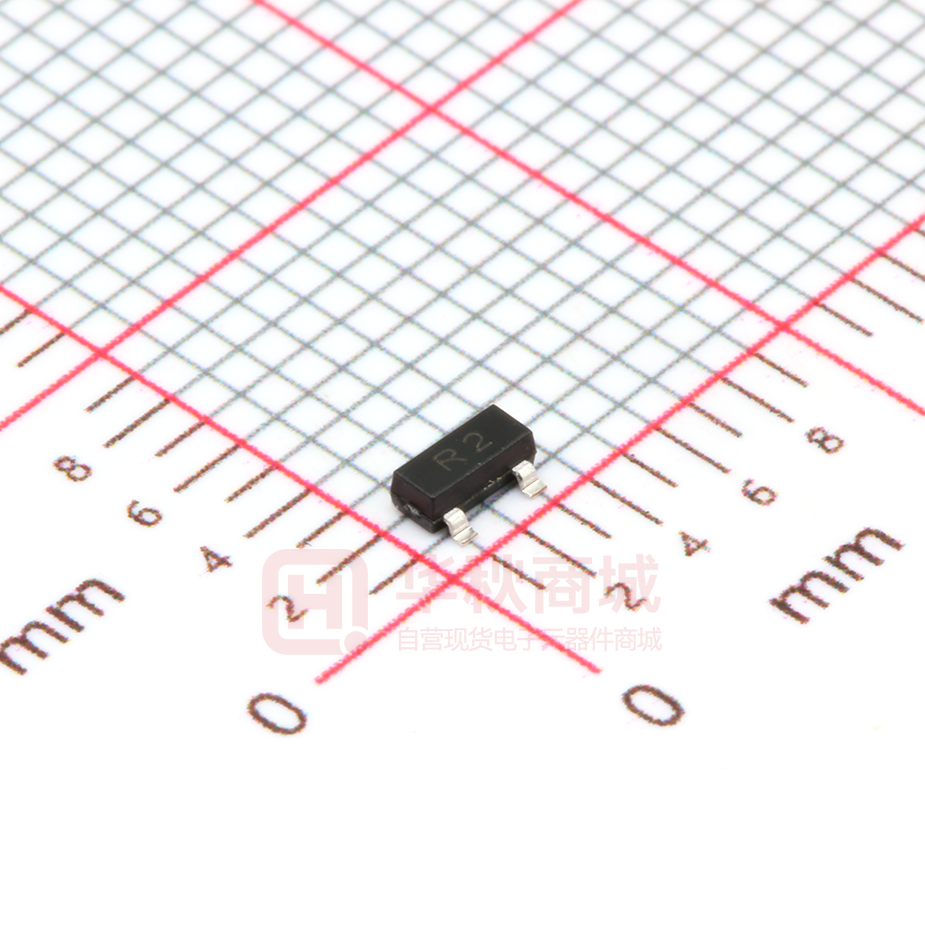

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-23 Plastic-Encapsulate MOSFETs CJ3402 N-Channel MOSFET V(BR)DSS ID RDS(on)MAX SOT-23 55 mΩ@10V  30V 3 4A  70 mΩ@4.5V   110 mΩ@2.5V   1 2 DESCRIPTION 1. GATE The CJ3402 uses advanced trench technology to provide excellent 2. SOURCE 3. DRAIN RDS(ON) , low gate charge and operation with gate voltage as low as 2.5V. This device is suitable for use as a load switch or in PWM application. FEATURES z Lead free product is acquired z Surface mount package APPLICATION z Load Switch and in PWM applications Equivalent Circuit MARKING: R2 Maximum ratings (Ta=25℃ unless otherwise noted) Parameter Symbol Value Unit Drain-Source Voltage VDS 30 V Gate-Source Voltage VGS ±12 V Continuous Drain Current ID 4 A Pulsed Drain Current (note 1) IDM 15 A Power Dissipation PD 0.35 W RθJA 357 ℃/W Junction Temperature TJ 150 ℃ Storage Temperature TSTG -55~+150 ℃ Thermal Resistance from Junction to Ambient (note 2) www.cj-elec.com 1 E,Mar,2016 MOSFET ELECTRICAL CHARACTERISTICS Ta =25 ℃ unless otherwise specified Parameter Symbol Test Condition Min Typ Max Unit STATIC CHARACTERISTICS Drain-source breakdown voltage V (BR)DSS VGS = 0V, ID =250µA Zero gate voltage drain current IDSS VDS =24V,VGS = 0V Gate-body leakage current IGSS VGS =±12V, VDS = 0V VGS(th) VDS =VGS, ID =250µA Gate threshold voltage (note 3) Drain-source on-resistance (note 3) RDS(on) 30 V 1 µA 100 nA 0.85 1.4 V VGS =10V, ID =4A 33 55 mΩ VGS =4.5V, ID =3A 39 70 mΩ VGS =2.5V, ID =2A 48 110 mΩ 8 Forward transconductance (note 3) gFS VDS =15V, ID =4A Diode forward voltage (note 3) VSD IS=1A, VGS = 0V 0.6 S 1 V DYNAMIC CHARACTERISTICS (note 4) Input capacitance Ciss Output capacitance Coss Reverse transfer capacitance Crss Gate resistance Rg VDS =15V,VGS =0V,f =1MHz VDS =0V,VGS =0V,f =1MHz 390 pF 54.5 pF 41 pF 3 Ω 3.3 ns SWITCHING CHARACTERISTICS (note 4) Turn-on delay time Turn-on rise time Turn-off delay time td(on) tr VGS=10V,VDS=15V, 1 ns td(off) RL=3.75Ω,RGEN=6Ω 21.7 ns Turn-off fall time tf 2.1 ns Total gate charge Qg 4.34 nC Gate-source Charge Qgs 0.6 nC Gate-drain Charge Qgd 1.38 nC 1.2 ns 6.3 nC Body diode reverse recovery time Body diode reverse recovery charge t. Qrr VDS =15V,VGS =4.5V,ID =4A IF=4A,dI/dt=100A/µs Notes : 1. Repetitive rating : Pulse width limited by junction temperature. 2. Surface mounted on FR4 board , t≤10s. 3. Pulse Test : Pulse Width≤80µs, Duty Cycle≤0.5%. 4. Guaranteed by design, not subject to producting. www.cj-elec.com 2 E,Mar,2016 Typical Characteristics Output Characteristics Transfer Characteristics 16 14 VGS=3V,4V,5V,10V VDS=3V 14 12 12 DRAIN CURRENT DRAIN CURRENT ID 10 8 6 VGS=1.5V 4 8 6 Ta=100℃ 4 Ta=25℃ 2 2 0 0.0 10 ID (A) (A) VGS=2V 0.5 1.0 1.5 2.0 2.5 3.0 3.5 DRAIN TO SOURCE VOLTAGE VDS 4.0 4.5 0 0.0 5.0 0.5 (V) 1.0 1.5 2.0 GATE TO SOURCE VOLTAGE 2.5 VGS 3.0 (V) RDS(ON) —— VGS RDS(ON) —— ID 200 55 Ta=25℃ 180 Pulsed VGS=2.5V 50 (m) RDS(ON) 45 VGS=4.5V 40 ON-RESISTANCE ON-RESISTANCE RDS(ON) (m) 160 35 VGS=10V ID=4A 140 120 100 80 Ta=100℃ 60 40 30 Ta=25℃ 20 25 0.5 0 1.0 1.5 2.0 2.5 3.0 DRAIN CURRENT 3.5 ID 4.0 4.5 5.0 0 (A) 1 2 3 4 5 6 GATE TO SOURCE VOLTAGE 7 VGS 8 9 10 (V) Threshold Voltage IS —— VSD 5 1.0 THRESHOLD VOLTAGE VTH IS (A) (V) 1.2 SOURCE CURRENT 1 Ta=100℃ 0.1 0.2 0.4 0.6 T=25℃ 0.8 1.0 SOURCE TO DRAIN VOLTAGE www.cj-elec.com 1.2 0.8 0.6 0.4 0.2 25 1.4 VSD (V) ID=250uA 50 75 JUNCTION TEMPERATURE 3 100 Tj 125 (℃ ) E,Mar,2016 SOT-23 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° SOT-23 Suggested Pad Layout www.cj-elec.com 4 E,Mar,2016 SOT-23 Tape and Reel SOT-23 Tape and reel SOT-23 Embossed Carrier Tape P0 d P1 Packaging Description: SOT-23 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). B W A F E C A A P A-A Dimensions are in millimeter Pkg type A B C d E F P0 P P1 W SOT-23 3.15 2.77 1.22 Ø1.50 1.75 3.50 4.00 4.00 2.00 8.00 SOT-23 Tape Leader and Trailer Trailer Tape Leader Tape 100±2 Empty Pockets Components 50±2 Empty Pockets SOT-23 Reel D I G W2 3000 H 2500 2000 1500 1000 D2 D1 500 W1 Dimensions are in millimeter Reel Option D D1 D2 G H I W1 W2 7''Dia Ø178.00 54.40 13.00 R78.00 R25.60 R6.50 9.50 12.30 G.W.(kg) REEL Reel Size Box Box Size(mm) Carton Carton Size(mm) 3000 pcs 7 inch 30,000 pcs 203×203×195 120,000 pcs 438×438×220 www.cj-elec.com 5 E,Mar,2016
