JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD
SOT-23 Plastic-Encapsulate MOSFETs
CJ3406
N-Channel Enhancement Mode Field Effect Transistor
V(BR)DSS
ID
RDS(on)MAX
SOT-23
65 mΩ@10V
30V
3.6A
105 mΩ@4.5V
1. GATE
2. SOURCE
3. DRAIN
DESCRIPTION
The CJ3406 use advanced trench technology to provide excellent
RDS(ON) and low gate charge. This device is suitable for use as a
load switch or in PWM applications.
Equivalent Circuit

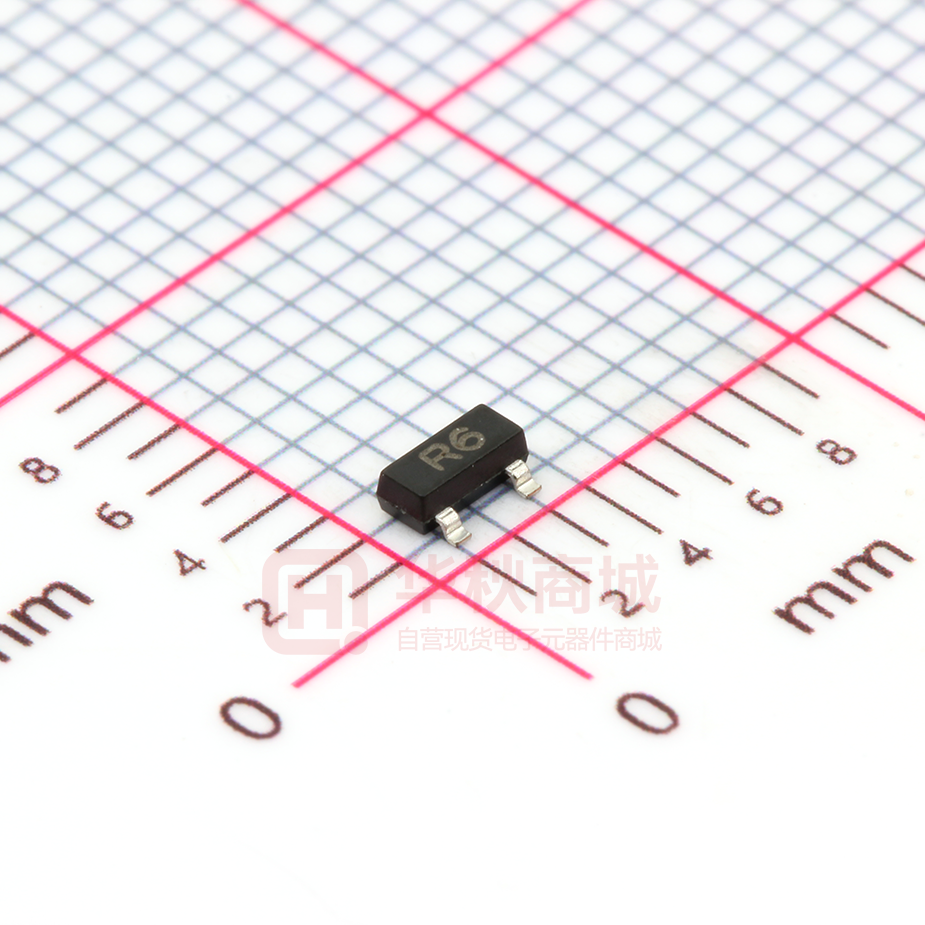

MARKING
R6
Maximum ratings ( Ta=25℃ unless otherwise noted)
Parameter
Symbol
Value
Unit
Drain-Source Voltage
VDS
30
V
Gate-Source Voltage
VGS
±20
V
Continuous Drain Current
ID
3.6
A
Drain Current-Pulsed (note 1)
IDM
15
A
Power Dissipation
PD
0.35
W
RθJA
357
℃/W
Junction Temperature
TJ
150
℃
Storage Temperature
TSTG
-55~ +150
℃
Thermal Resistance from Junction to Ambient
www.cj-elec.com
1
B,Mar,2015
MOSFET ELECTRICAL CHARACTERISTICS
Ta =25 ℃ unless otherwise specified
Parameter
Test Condition
Symbol
Min
Typ
Max
Units
STATIC PARAMETERS
Drain-source breakdown voltage
V (BR) DSS
VGS = 0V, ID =250µA
Zero gate voltage drain current
IDSS
VDS =24V,VGS = 0V
Gate-body leakage current
IGSS
VGS =±20V, VDS = 0V
Gate threshold voltage
VGS(th)
VDS =VGS, ID =250µA
Drain-source on-resistance (note 2)
RDS(on)
30
V
1
µA
±100
nA
3
V
VGS =10V, ID =3.6A
65
mΩ
VGS =4.5V, ID =2.8A
105
mΩ
Forward tranconductance (note 2)
gFS
VDS =5V, ID =3.6A
Diode forward voltage
VSD
IS=1A
1
3
S
1
V
375
pF
DYNAMIC PARAMETERS (note 3)
Input capacitance
Ciss
Output capacitance
Coss
Reverse transfer capacitance
Crss
Gate resistance
Rg
VDS =15V,VGS =0V,f =1MHz
57
pF
39
pF
VDS =0V,VGS =0V,f =1MHz
6
Ω
SWITCHING PARAMETERS (note 3)
Turn-on delay time
td(on)
Turn-on rise time
Turn-off delay time
4.6
ns
tr
VGS=10V,VDS=15V,
1.9
ns
td(off)
RL=2.2Ω,RGEN=3Ω
20.1
ns
2.6
ns
Turn-off fall time
tf
Notes :
1.
Repetitive Rating : Pulse width limited by maximum junction temperature.
2.
Pulse Test : Pulse width ≤300µs, duty cycle≤ 0.5%.
3.
These parameters have no way to verify.
www.cj-elec.com
2
B,Mar,2015
Typical Characteristics
Output Characteristics
Transfer Characteristics
12
15
VGS=10V
VDS=3V
VGS=6V
10
VGS=4.5V
ID
9
DRAIN CURRENT
DRAIN CURRENT
ID
(A)
(A)
12
VGS=4V
6
Ta=25℃
8
Ta=100℃
6
4
VGS=3.5V
3
2
VGS=3V
0
0
1
2
3
DRAIN TO SOURCE VOLTAGE
4
VDS
0
5
0
(V)
1
2
3
4
GATE TO SOURCE VOLTAGE
VGS
5
6
(V)
RDS(ON) —— VGS
RDS(ON) —— ID
90
200
Ta=25℃
Pulsed
RDS(ON)
70
VGS=4.5V
60
ON-RESISTANCE
RDS(ON)
ON-RESISTANCE
(mΩ)
160
(mΩ)
80
50
VGS=10V
40
30
1.0
1.5
2.0
2.5
3.0
DRAIN CURRENT
3.5
ID
4.0
4.5
ID=3.6A
120
40
0
5.0
Ta=100℃
80
Ta=25℃
0
(A)
2
4
6
GATE TO SOURCE VOLTAGE
8
VGS
10
(V)
Threshold Voltage
IS —— VSD
5
2.0
THRESHOLD VOLTAGE
VTH
IS (A)
(V)
1.8
SOURCE CURRENT
1
Ta=100℃
T=25℃
1.6
ID=250uA
1.4
1.2
1.0
0.8
0.1
0.4
0.6
0.8
1.0
SOURCE TO DRAIN VOLTAGE
www.cj-elec.com
1.2
0.6
25
1.4
VSD (V)
50
75
JUNCTION TEMPERATURE
3
100
Tj
125
(℃ )
B,Mar,2015
SOT-23 Package Outline Dimensions
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
Dimensions In Millimeters
Min
Max
0.900
1.150
0.000
0.100
0.900
1.050
0.300
0.500
0.080
0.150
2.800
3.000
1.200
1.400
2.250
2.550
0.950 TYP
1.800
2.000
0.550 REF
0.300
0.500
0°
8°
Dimensions In Inches
Min
Max
0.035
0.045
0.000
0.004
0.035
0.041
0.012
0.020
0.003
0.006
0.110
0.118
0.047
0.055
0.089
0.100
0.037 TYP
0.071
0.079
0.022 REF
0.012
0.020
0°
8°
SOT-23 Suggested Pad Layout
www.cj-elec.com
4
B,Mar,2015
SOT-23 Tape and Reel
SOT-23 Tape and reel
SOT-23 Embossed Carrier Tape
P0
d
P1
Packaging Description:
SOT-23 parts are shipped in tape. The carrier
tape is made from a dissipative (carbon filled)
polycarbonate resin. The cover tape is a multilayer
film (Heat Activated Adhesive in nature) primarily
composed of polyester film, adhesive layer, sealant,
and anti-static sprayed agent. These reeled parts in
standard option are shipped with 3,000 units per 7"
or 17.8cm diameter reel. The reels are clear in color
and is made of polystyrene plastic (anti-static
coated).
B
W
A
F
E
C
A
A
P
A-A
Dimensions are in millimeter
Pkg type
A
B
C
d
E
F
P0
P
P1
W
SOT-23
3.15
2.77
1.22
Ø1.50
1.75
3.50
4.00
4.00
2.00
8.00
SOT-23 Tape Leader and Trailer
Trailer Tape
Leader Tape
100±2 Empty Pockets
Components
50±2 Empty Pockets
SOT-23 Reel
D
I
G
W2
3000
H
2500
2000
1500
1000
D2
D1
500
W1
Dimensions are in millimeter
Reel Option
D
D1
D2
G
H
I
W1
W2
7''Dia
Ø178.00
54.40
13.00
R78.00
R25.60
R6.50
9.50
12.30
G.W.(kg)
REEL
Reel Size
Box
Box Size(mm)
Carton
Carton Size(mm)
3000 pcs
7 inch
30,000 pcs
203×203×195
120,000 pcs
438×438×220
www.cj-elec.com
5
B,Mar,2015
