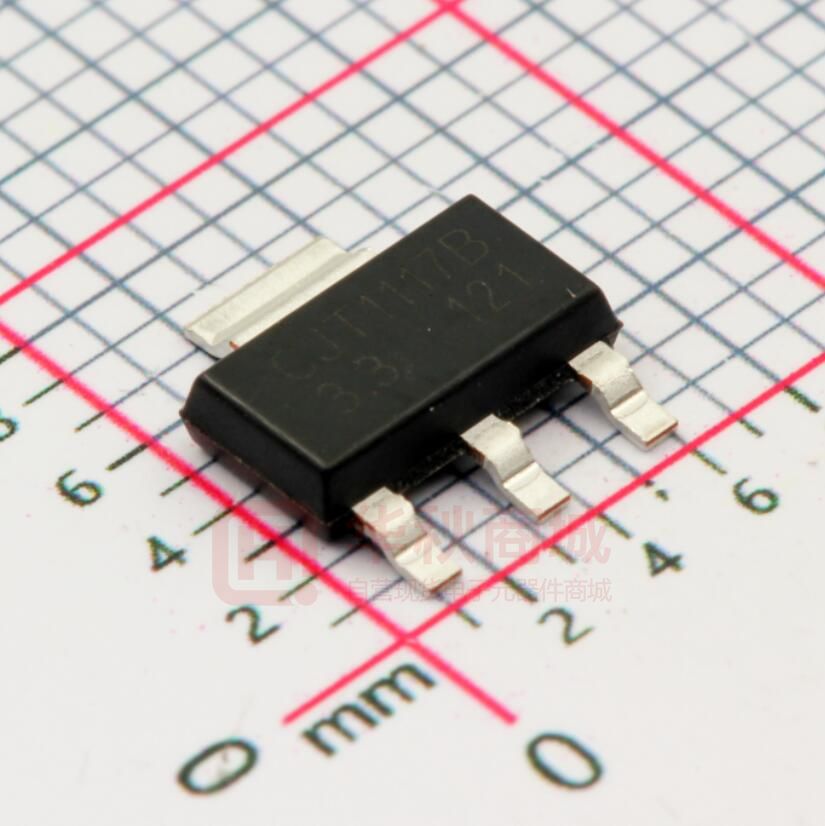

CJT1117B-3.3

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD 1A LOW DROPOUT LINEAR REGULATOR CJT1117B-XXX SOT –223 FEATURES z Low Dropout Voltage: 1.15V(typ.) at 1A Output Current 1. ADJ/GND z Trimmed Current Limit 2. OUTPUT z On-Chip Thermal Shutdown 3.IN z Three-Terminal Adjustable or Fixed 1.25V,1.8V, 2.5V, 3.3V, 5V z Operation Junction Temperature: -25℃ to125℃ GENERAL DESCRIPTION The CJT1117B-XXX is a series of low dropout three-terminal regulators with a dropout of 1.15V(typ.) at 1A output current. The CJT1117B-XXX series provides current limiting and thermal shutdown. Its circuit includes a trimmed bandgap. reference to assure output voltage accuracy to be within 1.5%. Current limit is trimmed to ensure specified. output current and controlled short-circuit current. On-chip thermal shutdown provides protection against any combination of overload and ambient temperature that would create excessive junction temperature. The CJT1117B-XXX has an adjustable version, that can provide the output voltage from 1.25V to 5V with only 2 external resistors. APPLICATIONS z PC Motherboard z LCD Monitor z Graphic Card z DVD-Video Player z NIC/Switch z Telecom Modem z ADSL Modem z Printer and Other Peripheral Equipment MARKING www.cj-elec.com 1 D,Mar,2016 MAXIMUM RATINGS ORDERING INFORMATION Package Operating Junction Temperature Range Part NO. CJT1117B-ADJ CJT1117B-1.8 -25 to 125℃ SOT-223 CJT1117B-2.5 CJT1117B-3.3 CJT1117B-5.0 ABOSLUTE MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Parameter Symbol Value Unit Vi 20 V RθJA 100 ℃/W Junction Temperature Tj 150 ℃ Storage Temperature Tstg -55~+150 ℃ Lead Temperature (Soldering, 10s) TL 260 ℃ VESD 400 V Input Voltage Thermal Resistance from Junction to Ambient ESD Voltage (Machine Model) Note: Stresses greater than those listed under ”Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional of the device at these or any other conditions beyond those indicated under “Recommended Operating Conditions” is not implied. Exposure to “Absolute Maximum Ratings” for extended periods may affect device reliability. RECOMMENDED OPERATING CONDITIONS Parameter Symbol Value Unit Input Voltage Vi 15 V Operating Junction Temperature Tj -25~+125 ℃ www.cj-elec.com 2 D,Mar,2016 ELECTRICAL CHARACTERISTICS V IN≤10V, TJ=25℃ unless otherwise specified. Parameter Reference Voltage Symbol VIROC Part NO. CJT1117B-ADJ CJT1117B-1.8 CJT1117B-2.5 Output Voltage VO CJT1117B-3.3 CJT1117B-5.0 Line Regulation Load Regulation Dropout Voltage LNR LDR VD Test conditions Min Typ Max IOUT=10mA, VIN =3.23V 1.231 1.250 1.269 10mA≤IOUT≤1A, 2.75V≤VIN -VOUT ≤13.25V 1.225 1.250 1.275 IOUT=10mA, VIN=3.8V 1.773 1.8 1.827 10mA≤IOUT≤1A, 3.3V≤VIN ≤12V 1.764 1.8 1.836 IOUT=10mA, VIN=4.5V 2.463 2.5 2.538 10mA≤IOUT≤1A, 4V≤VIN ≤12V 2.450 2.5 2.550 IOUT=10mA, VIN=5.3V 3.251 3.3 3.350 10mA≤IOUT≤1A, 4.8V≤VIN ≤12V 3.234 3.3 3.366 IOUT=10mA, VIN=7.0V 4.925 5.0 5.075 4.9 5.0 5.1 10mA≤IOUT≤1A, 6.5V≤VIN ≤12V CJT1117B-ADJ IOUT=10mA, 1.5V≤VIN -VOUT ≤12V CJT1117B-1.8 IOUT=10mA, 1.5V≤VIN -VOUT ≤10.2V 7 CJT1117B-2.5 IOUT=10mA, 1.5V≤VIN -VOUT ≤9.5V 7 CJT1117B-3.3 IOUT=10mA, 1.5V≤VIN -VOUT ≤8.7V 7 CJT1117B-5.0 IOUT=10mA, 1.5V≤VIN -VOUT ≤7V 10 0.2 CJT1117B-ADJ 0.4 CJT1117B-1.8 7.2 CJT1117B-2.5 VIN-VOUT=1.5V, 10mA≤IOUT ≤1A 10 CJT1117B-3.3 13.2 CJT1117B-5.0 20 ΔVREF=1%, IOUT=1.0A Adjust Pin Current Minimum Load Current Quiescent Current Ripple Rejection IL 1.5V≤VIN -VOUT ≤12V (ADJ only) Iq VIN= VOUT+1.25V (ADJ except) RR f=120Hz,COUT=22μFTantalum, VIN-VOUT=3V, IOUT=1A Temperature Stability Long-Term Stability RMS Output Noise (% of VOUT) TA=125℃, 1000hrs TA=25℃, 10Hz≤f ≤10kHz Thermal Shutdown Hysteresis www.cj-elec.com 3 60 Unit V V % mV % mV 1.3 V 60 120 μA 1.7 5 μA 10 mA 75 dB 0.5 % 0.3 % 0.003 % 25 ℃ D,Mar,2016 FUNCTIONAL BLOCK DIAGRAM TYPICAL APPLICATION CIRCUIT www.cj-elec.com 4 D,Mar,2016 SOT-223 Package Outline Dimensions Symbol A A1 A2 b b1 c D E E1 e L θ Dimensions In Millimeters Max. Min. —— 1.800 0.020 0.100 1.500 1.700 0.660 0.840 2.900 3.100 0.230 0.350 6.300 6.700 6.700 7.300 3.300 3.700 2.300(BSC) 0.750 —— 0° 10° Dimensions In Inches Min. Max. —— 0.071 0.001 0.004 0.059 0.067 0.026 0.033 0.114 0.122 0.009 0.014 0.248 0.264 0.264 0.287 0.130 0.146 0.091(BSC) 0.030 —— 0° 10° SOT-223 Suggested Pad Layout www.cj-elec.com 5 D,Mar,2016 SOT-223 Tape and Reel www.cj-elec.com 6 C,May,2015
