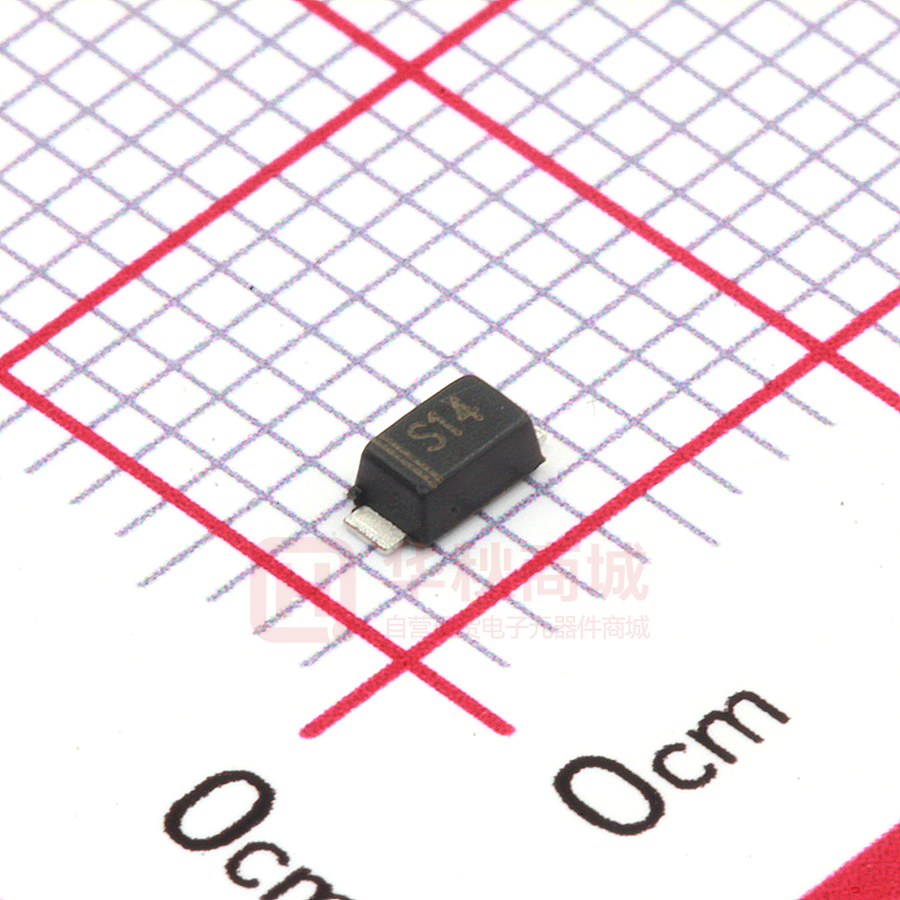

DSS14

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-1 23FL Plastic-Encapsulate Diodes DSS22 THRU DSS110 DSS12 DSS210 Schottky Rectifier Diodes Features ● IF(AV) 1A ● VRRM 20V-100V SOD-1 23FL ● High surge current capability ● Polarity: Color band denotes cathode Applications ● Rectifier Marking ● S1X X : From 2 To 10 Limiting Values(Absolute Maximum Rating) DSS1 Item Symbol Unit Test Conditions 2 3 4 5 6 8 9 10 Repetitive Peak Reverse Voltage VRRM V 20 30 40 50 60 80 90 100 Maximum RMS Voltage V RMS V 14 21 28 35 42 56 63 70 Average Forward Current IF(AV) A 60Hz Half-sine wave， Resistance load，FIG.1 1.0 Surge(Non-repetitive)Forward Current IFSM A 60Hz Half-sine wave， 1 cycle，Ta=25℃ 30 TJ ℃ TSTG ℃ Junction Temperature Storage Temperature -55~+125 -55~+150 -55 ~ +150 Electrical Characteristics (T=25℃ Unless otherwise specified） Item Peak Forward Voltage Peak Reverse Current Thermal Resistance(Typical) Symbol Unit VF V IRRM1 IRRM2 RθJ-A RθJ-L mA Test Condition IF =1.0A 2 3 0.55 Ta =25℃ VRM=VRRM 4 Ta =100℃ DSS1 5 6 0.70 9 10 0.85 0.5 0.1 10 5.0 Between junction and ambient 88 Between junction and terminal 28 ℃/ W 8 Notes: Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas www.jscj-elec.com 1 Rev. - 1.0 Typical Characteristics FIG.1: FORWARD CURRENT DERATING CURVE IF S M (A ) FIG.2: MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT DSS12-DSS14 DSS15-DSS110 50 40 30 20 10 Resistive or Inductive Load P.C.B. Mounted on 0.2"×0.2" (5mm×5mm)Copper Pad Areas 0 TL(℃) 1 2 5 10 20 50 100 Number of Cycles FIG.3: TYPICAL FORWARD CHARACTERISTICS FIG.4：TYPICAL REVERSE CHARACTERISTICS DSS12-DSS16 DSS18-DSS110 DSS12-DSS14 DSS15-DSS16 DSS18-DSS110 VF(V) www.jscj-elec.com Voltage(%) 2 Rev. - 1.0 SOD-1 23FL 1.8± 0.1 １．０ ±0.15 Cathode Band Top View 1.3± 0.1 0.12-0.20 2.8 ±0.15 0.8±0.1 3.7 ±0.15 Dimensions in millimeters SOD-1 23FL 1.4 2.85 1.2 NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein.JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 1.0 Reel Taping Specifications For Surface Mount Devices-SOD-123FL FIG:CONFIGURATION OF SURFACE MOUNTED DEVICES TAPING SOD-123FL 54 1.0 2.13 0.039 www.jscj-elec.com 4 Rev. - 1.0
