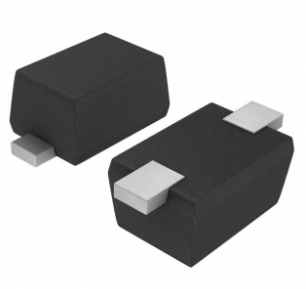

DSS210

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-123FL Plastic-Encapsulate Diodes DSS22 THRU DSS210 Schottky Rectifier Diodes Features ●IF(AV) 2A ● VRRM 20V-100V SOD-1 23FL ●High surge current capability ● Polarity: Color band denotes cathode Applications ● Rectifier Marking ● DSS22-DSS210 : S22-S210 Item Symbol Unit Test Conditions DSS 22 23 24 25 26 28 210 Repetitive Peak Reverse Voltage VRRM V 20 30 40 50 60 80 100 Maximum RMS Voltage V RMS V 14 21 28 35 42 56 70 Maximum DC Blocking Voltage V DC V 20 30 40 50 60 80 100 Average Forward Current IF(AV) A 60Hz Half-sine wave， Resistance load，TL=(Fig.1） 2.0 Surge(Non-repetitive)Forward Current IFSM A 60Hz Half-sine wave， 1 cycle，Ta=25℃ ℃ 40 Junction Temperature TJ -55 ~ +150 TSTG Storage Temperature Electrical Characteristics (T=25 Item Peak Forward Voltage Peak Reverse Current Thermal Resistance(Typical) Symbol VFM IRRM1 IRRM2 R J-A R J-L -55~+150 -55~+125 Unless otherwise specified Unit V mA /W Test Condition IFM =2.0A VRM=VRRM DSS 22 23 24 25 26 0.70 0.55 28 210 0.85 Ta =25 0.5 0.1 Ta =100 10 5.0 Between junction and ambient 75 Between junction and terminal 17 Notes: Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper ) pad areas www.jscj-elec.com 1 Rev. - 1.1 ÿ ÿ FIG.1: FORWARD CURRENT DERATING CURVE 2.5 ÿ DSS22-DSS24 DSS25-DSS210 2.0 FIG.2: MAXIMUM NON-REPETITIVE FORWARD URGE CURRENT ¸·ßùÈÀÉ ¸½ÈÀÉ ÿ 1.5 1.0 Resistive or Inductive Load P.C.B. Mounted on 0.2"×0.2" (5.0mm×5.0mm)Copper Pad Areas 75 50 25 100 125 150 L ÅòõüäðÿïêÿÂýóãäè FIG.4 TYPICAL REVERSE CHARACTERISTICS FIG.3: TYPICAL FORWARD CHARACTERISTICS "#‡ˆ‰ ÿ 0 100 ÿ IR(mA) 0 TJ=25℃ Pulse width=300us 1% Duty Cycle 100 DSS22 -DSS26 DSS28 -DSS210 10 10 ÿÿ ÿÿ Tj=125℃ 1.0 1.0 Tj=75℃ 0.1 ÿÿ DSS22-DSS24 DSS25-DSS26 DSS28-DSS210 0.1 ÿ 0.01 Tj=25℃ 0.01 0 0.2 www.jscj-elec.com 0.4 0.6 0.8 1.0 1.2 0.001 1.4 #‡‰ 2 0 ÿ 20 40 60 80 100 qtuvwxyz{| Rev. - 1.1 SOD-123FL 1.8± 0.1 １．０ ±0.15 Cathode Band Top View 1.3± 0.1 0.12-0.20 2.8 ±0.15 0.8±0.1 3.7 ±0.15 Dimensions in millimeters SOD-1 23FL 1.4 2.85 1.2 NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein.JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 1.1 Reel Taping Specifications For Surface Mount Devices-SOD-123FL FIG:CONFIGURATION OF SURFACE MOUNTED DEVICES TAPING SOD-123FL 54 1.0 2.13 0.039 www.jscj-elec.com 4 Rev. - 1.1
