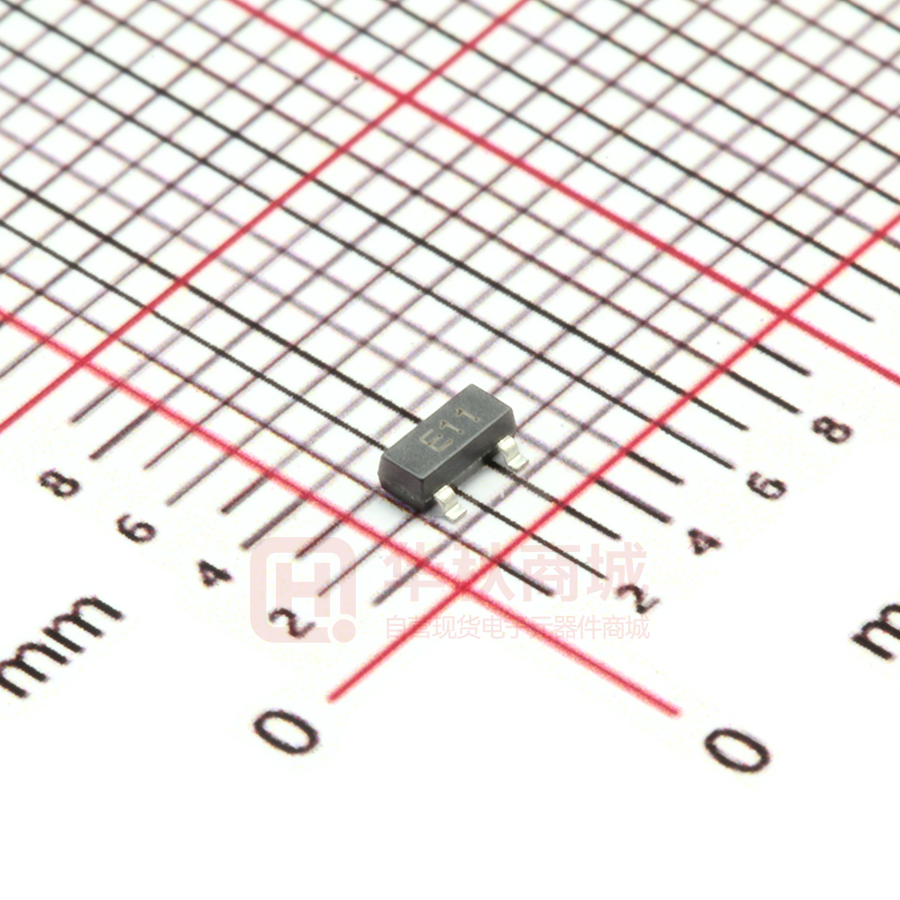

DTA113ZCA

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD Digital Transistors (Built-in Resistors) DTA113ZM/DTA113ZE/DTA113ZUA DTA113ZKA /DTA113ZCA/DTA113ZSA ·Equivalent Circuit DIGITAL TRANSISTOR (PNP) FEATURES  Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)  The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input.They also have the advantage of almost completely eliminating parasitic effects  Only the on/off conditions need to be set for operation, making device design easy PIN CONNENCTIONS and MARKING DTA113ZM SOT-723 DTA113ZE SOT-523 3 3 1. IN 1. IN 2. GND 1 2. GND 1 3. OUT 2 DTA113ZUA 3 3. OUT 2 DTA113ZKA SOT-323 SOT-23-3L 3 1. IN 1. IN 2. GND 2. GND 3. OUT 1 2 2 DTA113ZCA 3 1 www.jscj-elec.com 3. OUT 1 SOT-23 DTA113ZSA TO-92S 1. IN 1. GND 2. GND 2. OUT 3. OUT 3. IN 2 1 2 3 1 Rev. - 2.1 ORDERING INFORMATION Part Number MARKING (1) Package Packing Method Pack Quantity DTA113ZM E11 SOT-723 Reel 8000pcs/Reel DTA113ZE E11 SOT-523 Reel 3000pcs/Reel DTA113ZUA E11 SOT-323 Reel 3000pcs/Reel DTA113ZKA E11 SOT-23-3L Reel 3000pcs/Reel DTA113ZCA E11 SOT-23 Reel 3000pcs/Reel DTA113ZSA A113 Z XXX (2) TO-92S Bulk 1000pcs/Bag DTA113ZSA-TA A113 Z XXX (2) TO-92S Tape 3000pcs/Box z z z z (1). Solid dot = Green molding compound device, if none, the normal device. Notes: (2). ;;; &RGH  MAXIMUM RATINGS(Ta=25℃ unless otherwise noted) Symbol Limits(DTA113Z) Parameter M VCC Supply Voltage VIN Input Voltage IO Output Current PD Power Dissipation TJ,Tstg 100 E 150 UA KA SA -50 V -10～+5 V -100 mA 200 Operation Junction and Storage Temperature Range Unit CA 200 200 300 mW ℃ -55～+150 ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Input voltage Output voltage Input current Symbol Test Conditions Min Typ Max -0.3 V VI(off) VCC=-5V,IO=-100µA VI(on) VO=-0.3V,IO=-20mA -3 V VO(on) IO/II=-10mA/-0.5mA -0.3 V VI=-5V -7.2 mA VCC=-50V,VI=0 -0.5 μA kΩ II Output current IO(off) DC current gain GI Input resistance R1 0.7 1 1.3 Resistance ratio R2/R1 8 10 12 Transition frequency www.jscj-elec.com Unit fT VO=-5V,IO=-5mA VO=-10V,IO=-5mA,f=100MHz 2 33 250 MHz Rev. - 2.1 Typical Characteristics OFF Characteristics ON Characteristics -100 -5000 VCC=-5V VO=-0.3V Ta=100℃ 25℃ (mA) (mV) -10 100℃ INPUT VOLTAGE OUTPUT CURRENT IO VI(ON) Ta=25℃ -1000 -1 -0.1 -0.01 -100 -0.1 -1 -10 OUTPUT CURRENT VO(ON) IO —— -0 -100 -500 -1000 INPUT VOLTAGE (mA) IO -1000 GI 1000 VI(OFF) —— -1500 (mV) IO IO/II=-20 VO=-5V (mV) Ta=100℃ 25℃ 25℃ DC CURRENT GAIN VO(ON) OUTPUT VOLTAGE GI Ta=100℃ -100 -10 -10 -5 CO 10 —— IO 10 1 -0.1 -100 OUTPUT CURRENT 100 VR -10 PD 400 f=1MHz Ta=25℃ —— IO -100 (mA) Ta 350 (mW) 250 POWER DISSIPATION 6 300 PD CO (pF) 8 OUTPUT CAPACITANCE -1 OUTPUT CURRENT (mA) 4 2 DTA113ZSA DTA113ZUA/KA/CA 200 DTA113ZE 150 DTA113ZM 100 50 0 0 -0 -4 -8 -12 REVERSE BIAS VOLTAGE www.jscj-elec.com -16 VR -20 0 (V) 25 50 75 AMBIENT TEMPERATURE 3 100 Ta 125 150 (℃ ) Rev. - 2.1 SOT-723 Package Outline Dimensions Dimensions In Millimeters Min. Max. 0.430 0.500 0.000 0.050 0.170 0.270 0.270 0.370 0.080 0.150 1.150 1.250 1.150 1.250 0.750 0.850 0.800TYP. 7° REF. Symbol A A1 b b1 c D E E1 e θ Dimensions In Inches Min. Max. 0.017 0.020 0.000 0.002 0.007 0.011 0.011 0.015 0.003 0.006 0.045 0.049 0.045 0.049 0.030 0.033 0.031TYP. 7° REF. SOT-723 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 4 Rev. - 2.1 SOT-723 Tape and Reel www.jscj-elec.com 5 Rev. - 2.1 SOT-523 Package Outline Dimensions Symbol A A1 A2 b1 b2 c D E E1 e e1 L L1 θ Dimensions In Millimeters Min. Max. 0.700 0.900 0.000 0.100 0.700 0.800 0.150 0.250 0.250 0.350 0.100 0.200 1.500 1.700 0.700 0.900 1.450 1.750 0.500 TYP. 0.900 1.100 0.400 REF. 0.260 0.460 0° 8° Dimensions In Inches Min. Max. 0.028 0.035 0.000 0.004 0.028 0.031 0.006 0.010 0.010 0.014 0.004 0.008 0.059 0.067 0.028 0.035 0.057 0.069 0.020 TYP. 0.035 0.043 0.016 REF. 0.010 0.018 0° 8° SOT-523 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 6 Rev. - 2.1 SOT-523 Tape and Reel www.jscj-elec.com 7 Rev. - 2.1 SOT-323 Package Outline Dimensions Dimensions In Millimeters Min Max 0.900 1.100 0.000 0.100 0.900 1.000 0.200 0.400 0.080 0.150 2.000 2.200 1.150 1.350 2.150 2.450 0.650 TYP 1.200 1.400 0.525 REF 0.260 0.460 0° 8° Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Inches Min Max 0.035 0.043 0.000 0.004 0.035 0.039 0.008 0.016 0.003 0.006 0.079 0.087 0.045 0.053 0.085 0.096 0.026 TYP 0.047 0.055 0.021 REF 0.010 0.018 0° 8° SOT-323 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 8 Rev. - 2.1 SOT-323 Tape and Reel www.jscj-elec.com 9 Rev. - 2.1 -3L   Symbol A A1 A2 b c D E1 E e e1 L  Dimensions In Millimeters Min. Max. 1.050 1.250 0.000 0.100 1.050 1.150 0.300 0.500 0.100 0.200 2.820 3.020 1.500 1.700 2.650 2.950 0.950(BSC) 1.800 2.000 0.300 0.600 0° 8° Dimensions In Inches Max. Min. 0.041 0.049 0.000 0.004 0.041 0.045 0.012 0.020 0.004 0.008 0.111 0.119 0.059 0.067 0.104 0.116 0.037(BSC) 0.071 0.079 0.012 0.024 0° 8° -3L    NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 10 Rev. - 2.1 SOT-23-3L Tape and Reel www.jscj-elec.com 11 Rev. - 2.1 SOT-23 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° SOT-23 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 12 Rev. - 2.1 SOT-23 Tape and Reel www.jscj-elec.com 13 Rev. - 2.1 Dimensions In Millimeters Min. Max. 1.420 1.620 0.660 0.860 0.330 0.480 0.400 0.510 0.330 0.510 3.900 4.100 2.280 2.680 3.050 3.250 1.270 TYP. 2.440 2.640 15.100 15.500 45° TYP. Symbol A A1 b b1 c D D1 E e e1 L θ Dimensions In Inches Min. Max. 0.056 0.064 0.026 0.034 0.013 0.019 0.016 0.020 0.013 0.020 0.154 0.161 0.090 0.106 0.120 0.128 0.050 TYP. 0.096 0.104 0.594 0.610 45° TYP. NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 14 Rev. - 2.1 www.jscj-elec.com 15 Rev. - 2.1
