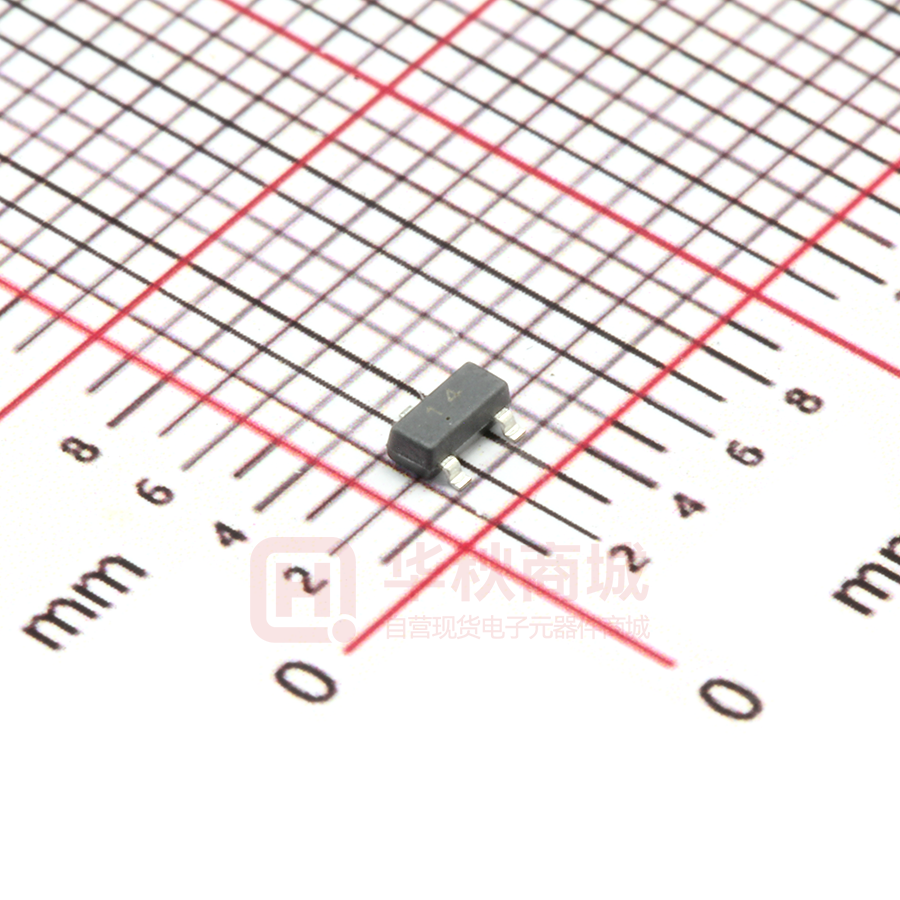

DTA114ECA

www.jscj-elec.com AD-DTA114E series JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD. AD-DTA114E Series Digital Transistor (Built-In Resistors) AD-DTA114EM/DTA114EE/DTA114EUA/DTA114EKA /DTA114ECA/DTA114ESA Digital transistor (PNP) FEATURES ⚫ Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit) ⚫ The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. ⚫ Only the on/off conditions need to be set for operation, making device design easier ⚫ AEC-Q101 qualified PIN CONNECTIONS AND MARKING AD-DTA114EM AD-DTA114EE AD-DTA114EUA AD-DTA114EKA AD-DTA114ECA Version 1.0 AD-DTA114ESA 1 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series EQUIVALENT CIRCUIT ORDERING INFORMATION Part number Marking Package Packing method Pack quantity AD-DTA114EM 14 SOT-723 Reel 8000pcs/reel AD-DTA114EE 14 SOT-523 Reel 3000pcs/reel AD-DTA114EUA 14 SOT-323 Reel 3000pcs/reel AD-DTA114EKA 14 SOT-23-3L Reel 3000pcs/reel AD-DTA114ECA 14 SOT-23 Reel 3000pcs/reel AD-DTA114ESA A114 1) E XXX TO-92S Bulk 1000pcs/bag AD-DTA114ESA-TA A114 1) E XXX TO-92S Tape 3000pcs/box 1）XXX = Date code Version 1.0 2 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series MAXIMUM RATINGS (Tj = 25°C unless otherwise specified) Parameter Symbol Value M E UA CA Unit KA SA Supply voltage Vcc -50 V Input voltage VIN -40 ~ 10 V Output current IO -50 mA Peak collector current ICM 1) -100 mA Maximum power dissipation PD 1) Operating junction and storage temperature range 1) 100 150 Tj, Tstg 200 200 200 300 mW -55 ~ 150 °C ELECTRICAL CHARACTERISTICS (Tj = 25°C unless otherwise specified) Parameter Symbol Test condition Min Typ Max Unit VI(off) VCC = -5V, IO = -100µA -0.5 - - VI(on) VO = -0.3V, IO = -10mA - - -3 VO(on) IO/II = -10mA/-0.5mA - - -0.3 V VI = -5V - - -0.88 mA IO(off) VCC = -50V, VI = 0V - - -0.5 µA DC current gain GI VO = -5V, IO = -5mA 30 - - - Input resistance R1 7 10 13 kΩ Resistance ratio R2 /R1 0.8 1 1.2 - 250 - Input voltage Output voltage Input current Output current Transition frequency II fT VO = -10V, IO = -5mA, f = 100MHz V MHz 1) Maximum allowed temperature Tj = 25°C. Version 1.0 3 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series TYPICAL CHARACTERISTICS Version 1.0 4 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series SOT-723 PACKAGE OUTLINE DIMENSIONS SOT-723 SUGGESTED PAD LAYOUT Note: 1. Controlling dimension in millimeters. 2. General tolerance: ±0.05mm. 3. The pad layout is for reference purpose only. Version 1.0 5 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series SOT-723 TAPE AND REEL Version 1.0 6 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series SOT-523 PACKAGE OUTLINE DIMENSIONS SOT-523 SUGGESTED PAD LAYOUT Note: 1. Controlling dimension in millimeters. 2. General tolerance: ±0.05mm. 3. The pad layout is for reference purpose only. Version 1.0 7 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series SOT-523 TAPE AND REEL Version 1.0 8 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series SOT-323 PACKAGE OUTLINE DIMENSIONS SOT-323 SUGGESTED PAD LAYOUT Note: 1. Controlling dimension in millimeters. 2. General tolerance: ±0.05mm. 3. The pad layout is for reference purpose only. Version 1.0 9 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series SOT-323 TAPE AND REEL Version 1.0 10 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series SOT-23-3L PACKAGE OUTLINE DIMENSIONS SOT-23-3L SUGGESTED PAD LAYOUT Note: 1. Controlling dimension in millimeters. 2. General tolerance: ±0.05mm. 3. The pad layout is for reference purpose only. Version 1.0 11 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series SOT-23-3L TAPE AND REEL Version 1.0 12 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series SOT-23 PACKAGE OUTLINE DIMENSIONS SOT-23 SUGGESTED PAD LAYOUT Note: 1. Controlling dimension in millimeters. 2. General tolerance: ±0.05mm. 3. The pad layout is for reference purpose only. Version 1.0 13 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series SOT-23 TAPE AND REEL Version 1.0 14 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series TO-92S PACKAGE OUTLINE DIMENSIONS TO-92S SUGGESTED PAD LAYOUT Note: 1. Controlling dimension in millimeters. 2. General tolerance: ±0.05mm. 3. The pad layout is for reference purpose only. Version 1.0 15 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series TO-92S PACKAGE TAPING DIMENSION Version 1.0 16 / 17 2021-07-01 www.jscj-elec.com AD-DTA114E series PUBLISHED BY JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD. 13th Floor, C Block, Tengfei Building, Yan Chuang Yuan, Nanjing Jiangbei New Area, China LEGAL DISCLAIMER The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics. With respect to any examples, hints or typical values stated herein and/or any information regarding the application of the device, JSCJ hereby disclaims any and all warranties and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual property rights of any third party. In addition, any information given in this document is subject to customer’s compliance with its obligations stated in this document and any applicable legal requirements, norms and standards concerning customer’s products and any use of the product of JSCJ in customer’s applications. The data contained in this document is exclusively intended for technically trained staff. It is the responsibility of customer’s technical departments to evaluate the suitability of the product for the intended application and the completeness of the product information given in this document with respect to such application. INFORMATION For further information on technology, delivery terms and conditions as well as prices, please contact your nearest JSCJ office (www.jscj-elec.com). WARNINGS Due to technical requirements, products may contain dangerous substances. For information on the types in question, please contact your nearest JSCJ office. Except as otherwise explicitly approved by JSCJ in a written document signed by authorized representatives of JSCJ, JSCJ’s products may not be used in any applications where a failure of the product or any consequences of the use thereof can reasonably be expected to result in personal injury. Version 1.0 17 / 17 2021-07-01
