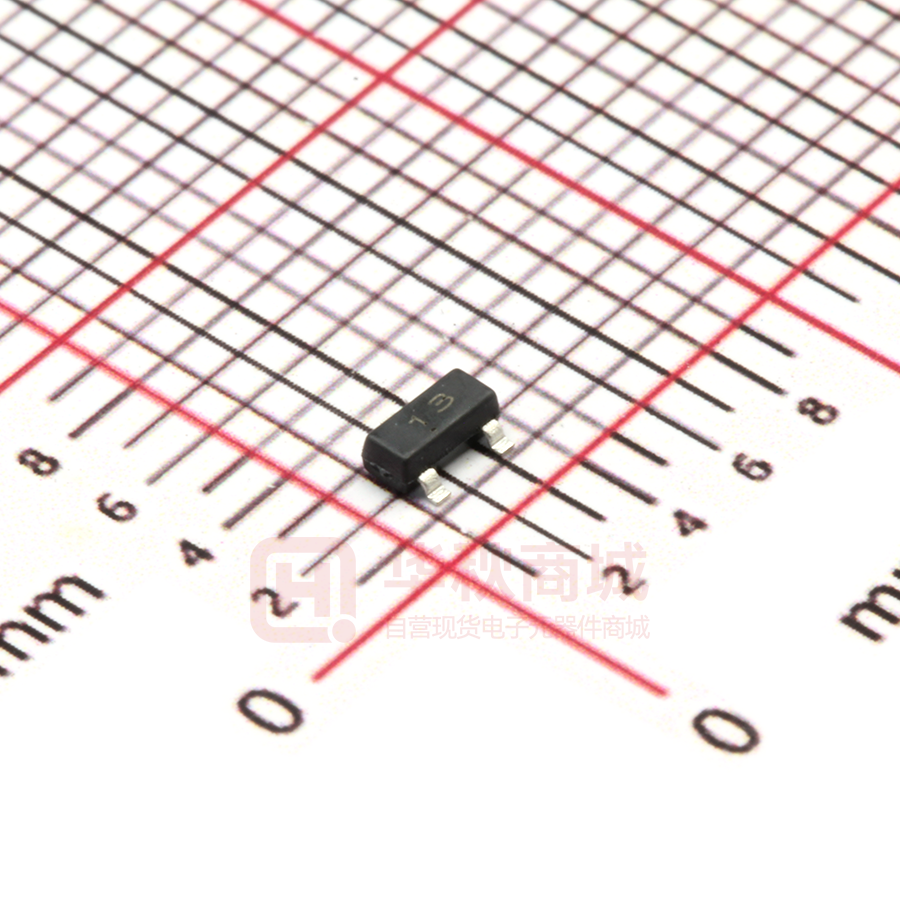

DTA143ECA

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD Digital Transistors (Built-in Resistors) JC(T DTA143EM/DTA143EE/DTA143EUA DTA143EKA /DTA143ECA/DTA143ESA ·Equivalent Circuit DIGITAL TRANSISTOR (PNP) FEATURES  Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)  The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input.They also have the advantage of almost completely eliminating parasitic effects  Only the on/off conditions need to be set for operation, making device design easy PIN CONNENCTIONS and MARKING DTA143EM DTA143EE SOT-723 3 SOT-523 3 1. IN 1. IN 2. GND 1 2. GND 3. OUT 2 3. OUT 1 2 MARKING:13 MARKING:13 DTA143EUA 3 DTA143EKA SOT-323 SOT-23-3L 3 1. IN 1. IN 2. GND 3. OUT 1 MARKING:13 3 1 www.cj-elec.com 3. OUT 2 MARKING:13 2 DTA143ECA MARKING:13 2. GND 1 DTA143ESA SOT-23 TO-92S 1. IN 1. GND 2. GND 2. OUT 3. OUT 3. IN 2 1 2 3 1 G,Mar,2016 C,Mar,2012 MAXIMUM RATINGS(Ta=25℃ unless otherwise noted) Symbol Limits(DTA143E□) Parameter M E UA KA Unit CA SA VCC Supply Voltage VIN Input Voltage IO Output Current PD Power Dissipation Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55～+150 ℃ 100 150 -50 V -30～+10 V -100 mA 200 200 200 300 mW ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Input voltage Output voltage Input current Symbol Conditions Min Typ Max VI(off) VCC=-5V,IO=-100µA VI(on) VO=-0.3V,IO=-20 mA -3 V VO(on) IO/II=-10mA/-0.5mA -0.3 V VI=-5V -1.8 mA VCC=-50V,VI=0 -0.5 μA kΩ II -0.5 V Output current IO(off) DC current gain GI Input resistance R1 3.29 4.7 6.11 Resistance ratio R2/R1 0.8 1 1.2 Transition frequency www.cj-elec.com Unit fT VO=-5V,IO=-10mA VO=-10V,IO=-5mA,f=100MHz 2 30 250 MHz G,Mar,2016 C,Mar,2012 Typical Characteristics ON Characteristics OFF Characteristics -100 -10 VO=-0.3V -3 (mA) (V) -30 -10 -1 -3 OUTPUT CURRENT INPUT VOLTAGE I0 VI(ON) VCC=-5V Ta=25℃ Ta=100℃ -1 Ta=100℃ -0.3 Ta=25℃ -0.1 -0.03 -0.3 -0.1 -0.1 -1 -0.3 -10 -3 OUTPUT CURRENT GI 1000 —— IO -0.01 -0.0 -100 -30 -0.4 -0.8 (mA) -1.2 INPUT VOLTAGE IO VO(ON) —— -1000 -1.6 VI(OFF) -2.0 (V) IO IO/II=20 VO=-5V -300 VO(ON) 100 Ta=100℃ OUTPUT VOLTAGE DC CURRENT GAIN GI (mV) 300 30 Ta=25℃ 10 Ta=100℃ -100 Ta=25℃ -30 3 1 -0.1 -1 -0.3 -3 OUTPUT CURRENT CO 12 —— -10 IO (mA) -100 -30 -10 -200 -1 -10 -3 OUTPUT CURRENT VR PD 400 f=1MHz Ta=25℃ —— -100 -30 IO (mA) Ta 350 PD 8 POWER DISSIPATION OUTPUT CAPACITANCE CO (pF) (mW) 10 6 4 DTA143ESA 300 250 200 150 DTA143EUA/CA/KA DTA143EE DTA143EM 100 2 50 0 -0 -4 -8 REVERSE VOLTAGE www.cj-elec.com -12 VR -16 0 -20 0 25 50 75 AMBIENT TEMPERATURE (V) 3 100 Ta 125 150 (℃ ) G,Mar,2016 B,ul,2011 C,Mar,2012 SOT-723 Package Outline Dimensions Symbol A A1 b b1 c D E E1 e θ Dimensions In Millimeters Min. Max. 0.430 0.500 0.000 0.050 0.170 0.270 0.270 0.370 0.080 0.150 1.150 1.250 1.150 1.250 0.750 0.850 0.800TYP. 7° REF. Dimensions In Inches Min. Max. 0.017 0.020 0.000 0.002 0.007 0.011 0.011 0.015 0.003 0.006 0.045 0.049 0.045 0.049 0.030 0.033 0.031TYP. 7° REF. SOT-723 Suggested Pad Layout www.cj-elec.com 4 A,Jun,2014 G,Mar,2016 SOT-723 Tape and Reel www.cj-elec.com 5 A,Jun,2014 G,Mar,2016 SOT-523 Package Outline Dimensions Symbol A A1 A2 b1 b2 c D E E1 e e1 L L1 θ Dimensions In Millimeters Max. Min. 0.700 0.900 0.000 0.100 0.700 0.800 0.150 0.250 0.250 0.350 0.100 0.200 1.500 1.700 0.700 0.900 1.450 1.750 0.500 TYP. 0.900 1.100 0.400 REF. 0.260 0.460 0° 8° Dimensions In Inches Min. Max. 0.028 0.035 0.000 0.004 0.028 0.031 0.006 0.010 0.010 0.014 0.004 0.008 0.059 0.067 0.028 0.035 0.057 0.069 0.020 TYP. 0.035 0.043 0.016 REF. 0.010 0.018 0° 8° SOT-523 Suggested Pad Layout www.cj-elec.com 6 A,Jun,2014 G,Mar,2016 SOT-523 Tape and Reel www.cj-elec.com 7 A,Jun,2014 G,Mar,2016 SOT-323 Package Outline Dimensions Dimensions In Millimeters Min Max 0.900 1.100 0.000 0.100 0.900 1.000 0.200 0.400 0.080 0.150 2.000 2.200 1.150 1.350 2.150 2.450 0.650 TYP 1.200 1.400 0.525 REF 0.260 0.460 0° 8° Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Inches Min Max 0.035 0.043 0.000 0.004 0.035 0.039 0.008 0.016 0.003 0.006 0.079 0.087 0.045 0.053 0.085 0.096 0.026 TYP 0.047 0.055 0.021 REF 0.010 0.018 0° 8° SOT-323 Suggested Pad Layout www.cj-elec.com 8 A,Jun,2014 G,Mar,2016 SOT-323 Tape and Reel www.cj-elec.com 9 A,Jun,2014 G,Mar,2016 -3L   Symbol A A1 A2 b c D E1 E e e1 L  Dimensions In Millimeters Max. Min. 1.050 1.250 0.000 0.100 1.050 1.150 0.300 0.500 0.100 0.200 2.820 3.020 1.500 1.700 2.650 2.950 0.950(BSC) 1.800 2.000 0.300 0.600 0° 8° Dimensions In Inches Min. Max. 0.041 0.049 0.000 0.004 0.041 0.045 0.012 0.020 0.004 0.008 0.111 0.119 0.059 0.067 0.104 0.116 0.037(BSC) 0.071 0.079 0.012 0.024 0° 8° -3L    www.cj-elec.com 10 A,Jun,2014 G,Mar,2016 SOT-23-3L Tape and Reel www.cj-elec.com 11 A,Jun,2014 G,Mar,2016 SOT-23 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° SOT-23 Suggested Pad Layout www.cj-elec.com 12 A,Jun,2014 G,Mar,2016 SOT-23 Tape and Reel www.cj-elec.com 13 A,Jun,2014 G,Mar,2016 Dimensions In Millimeters Min. Max. 1.420 1.620 0.660 0.860 0.330 0.480 0.400 0.510 0.330 0.510 3.900 4.100 2.280 2.680 3.050 3.250 1.270 TYP. 2.440 2.640 15.100 15.500 45° TYP. Symbol A A1 b b1 c D D1 E e e1 L θ www.cj-elec.com 14 Dimensions In Inches Min. Max. 0.056 0.064 0.026 0.034 0.013 0.019 0.016 0.020 0.013 0.020 0.154 0.161 0.090 0.106 0.120 0.128 0.050 TYP. 0.096 0.104 0.594 0.610 45° TYP. A,Jun,2014 G,Mar,2016 www.cj-elec.com 15 A,Jun,2014 G,Mar,2016
