Digital Transistors (Built-in Resistors)
DTC123JM/DTC123JE/DTC123JUA
DTC123JKA /DTC123JCA/DTC123JSA
·Equivalent Circuit
DIGITAL TRANSISTOR (NPN)
FEATURES
Built-in bias resistors enable the configuration of an inverter circuit
without connecting external input resistors(see equivalent circuit)
The bias resistors consist of thin-film resistors with complete isolation
to allow negative biasing of the input.They also have the advantage of
almost completely eliminating parasitic effects
Only the on/off conditions need to be set for operation, making device design easy
PIN CONNENCTIONS and MARKING
DTC123JM
SOT-723
3
DTC123JE
SOT-523
3
1. IN
1. IN
2. GND
1
2. GND
1
3. OUT
2
DTC123JUA
3
SOT-23-3L
DTC123JKA
SOT-323
3
1. IN
1. IN
2. GND
2. GND
1
3. OUT
1
3
1
www.jscj-elec.com
3. OUT
2
2
DTC123JCA
3. OUT
2
SOT-23
DTC123JSA
TO-92S
1. IN
1. GND
2. GND
2. OUT
3. OUT
3. IN
2
1 2 3
1
Rev. - 2.1
ORDERING INFORMATION
Part Number
MARKING
(1)
Package
Packing Method
Pack Quantity
DTC123JM
E42
SOT-723
Reel
8000pcs/Reel
DTC123JE
E42
SOT-523
Reel
3000pcs/Reel
DTC123JUA
E42
SOT-323
Reel
3000pcs/Reel
DTC123JKA
E42
SOT-23-3L
Reel
3000pcs/Reel

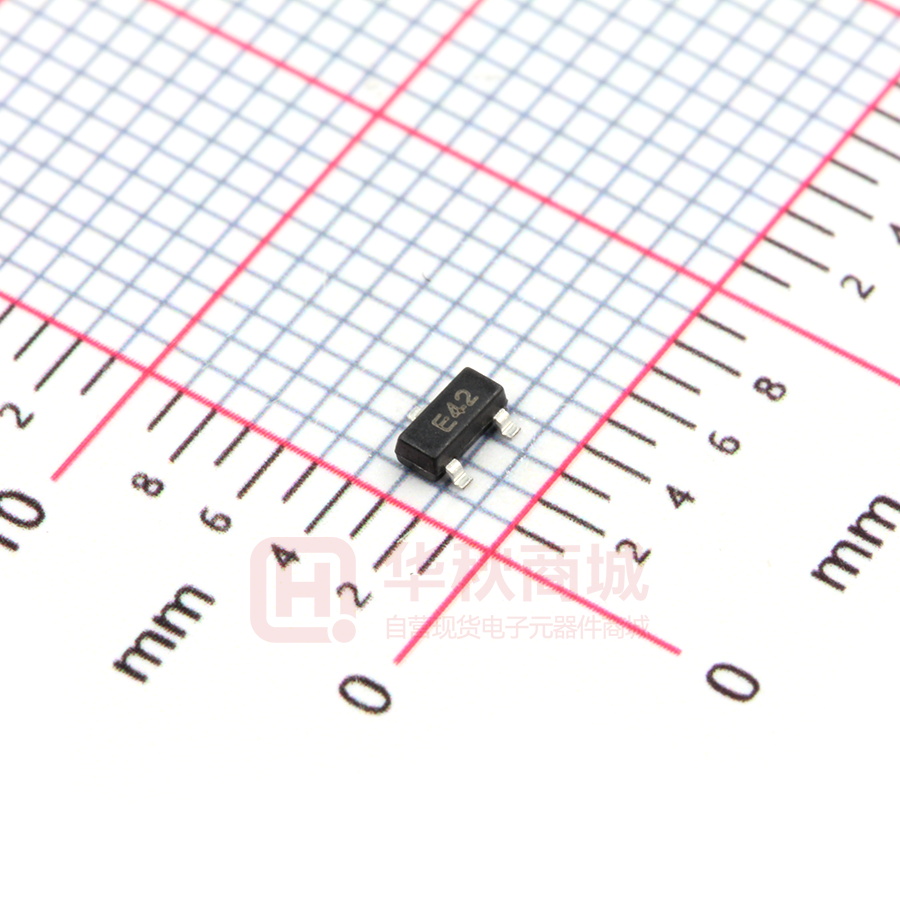

DTC123JCA
E42
SOT-23
Reel
3000pcs/Reel
z
z
DTC123JSA
C123 (2)
J XXX
TO-92S
Bulk
1000pcs/Bag
DTC123JSA-TA
C123
J XXX
TO-92S
Tape
3000pcs/Box
z
(2)
z
(1). Solid dot = Green molding compound device, if none, the normal device.
Notes:
(2). ;;; &RGH
MAXIMUM RATINGS(Ta=25℃ unless otherwise noted)
Symbol
Limits(DTC123J□)
Parameter
M
VCC
Supply Voltage
VIN
Input Voltage
IO
Output Current
PD
Power Dissipation
TJ,Tstg
100
E
150
UA
KA
SA
50
V
-5~+12
V
100
mA
200
Operation Junction and
Storage Temperature Range
Unit
CA
200
200
300
mW
℃
-55~+150
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Parameter
Input voltage
Output voltage
Input current
Symbol
Conditions
VI(off)
VCC=5V,IO=100µA
VI(on)
VO=0.3V,IO=5mA
VO(on)
IO/II=5mA/0.25mA
II
Min
Typ
Max
0.5
V
1.1
V
0.3
V
VI=5V
3.6
mA
VCC=50V,VI=0
0.5
μA
kΩ
0.1
Output current
IO(off)
DC current gain
GI
Input resistance
R1
1.54
2.2
2.86
Resistance ratio
R2/R1
17
21
26
Transition frequency
www.jscj-elec.com
fT
Unit
VO=5V,IO=10mA
VO=10V,IO=5mA,f=100MHz
2
80
250
MHz
Rev. - 2.1
Typical Characteristics
ON Characteristics
OFF Characteristics
100
10
VO=0.3V
VCC=5V
3
(mA)
(V)
30
1
OUTPUT CURRENT
INPUT VOLTAGE
I0
VI(ON)
10
3
Ta=25℃
1
Ta=100℃
Ta=100℃
0.3
Ta=25℃
0.1
0.03
0.3
0.1
0.1
0.3
1
10
3
OUTPUT CURRENT
IO
VO(ON) ——
30
0.01
0.2
100
0.4
(mA)
0.6
VI(OFF)
GI
IO
IO
1000
0.8
INPUT VOLTAGE
——
1.0
(V)
1000
IO/II=20
VO=5V
GI
Ta=100℃
100
DC CURRENT GAIN
OUTPUT VOLTAGE
VO(ON)
(mV)
300
300
Ta=100℃
Ta=25℃
100
Ta=25℃
30
10
30
3
10
1
10
3
OUTPUT CURRENT
CO
——
IO
10
3
OUTPUT CURRENT
PD
VR
——
IO
30
100
125
150
(mA)
Ta
400
f=1MHz
Ta=25℃
350
(mW)
8
PD
CO
6
POWER DISSIPATION
OUTPUT CAPACITANCE
1
0.3
(mA)
10
(pF)
1
0.1
100
30
4
2
300
DTC123JSA
250
200
150
DTC123JUA/CA/KA
DTC123JE
DTC123JM
100
50
0
0
4
8
12
REVERSE BIAS VOLTAGE
www.jscj-elec.com
16
VR
0
20
(V)
0
25
50
75
AMBIENT TEMPERATURE
3
100
Ta
(℃ )
Rev. - 2.1
SOT-723 Package Outline Dimensions
Dimensions In Millimeters
Min.
Max.
0.430
0.500
0.000
0.050
0.170
0.270
0.270
0.370
0.080
0.150
1.150
1.250
1.150
1.250
0.750
0.850
0.800TYP.
7° REF.
Symbol
A
A1
b
b1
c
D
E
E1
e
θ
Dimensions In Inches
Min.
Max.
0.017
0.020
0.000
0.002
0.007
0.011
0.011
0.015
0.003
0.006
0.045
0.049
0.045
0.049
0.030
0.033
0.031TYP.
7° REF.
SOT-723 Suggested Pad Layout
NOTICE
JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other
changes without further notice to any product herein. JSCJ does not assume any liability arising
out of the application or use of any product described herein.
www.jscj-elec.com
4
Rev. - 2.1
SOT-723 Tape and Reel
www.jscj-elec.com
5
Rev. - 2.1
SOT-523 Package Outline Dimensions
Symbol
A
A1
A2
b1
b2
c
D
E
E1
e
e1
L
L1
θ
Dimensions In Millimeters
Min.
Max.
0.700
0.900
0.000
0.100
0.700
0.800
0.150
0.250
0.250
0.350
0.100
0.200
1.500
1.700
0.700
0.900
1.450
1.750
0.500 TYP.
0.900
1.100
0.400 REF.
0.260
0.460
0°
8°
Dimensions In Inches
Max.
Min.
0.028
0.035
0.000
0.004
0.028
0.031
0.006
0.010
0.010
0.014
0.004
0.008
0.059
0.067
0.028
0.035
0.057
0.069
0.020 TYP.
0.035
0.043
0.016 REF.
0.010
0.018
0°
8°
SOT-523 Suggested Pad Layout
NOTICE
JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other
changes without further notice to any product herein. JSCJ does not assume any liability arising
out of the application or use of any product described herein.
www.jscj-elec.com
6
Rev. - 2.1
SOT-523 Tape and Reel
www.jscj-elec.com
7
Rev. - 2.1
SOT-323 Package Outline Dimensions
Dimensions In Millimeters
Min
Max
0.900
1.100
0.000
0.100
0.900
1.000
0.200
0.400
0.080
0.150
2.000
2.200
1.150
1.350
2.150
2.450
0.650 TYP
1.200
1.400
0.525 REF
0.260
0.460
0°
8°
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
Dimensions In Inches
Min
Max
0.035
0.043
0.000
0.004
0.035
0.039
0.008
0.016
0.003
0.006
0.079
0.087
0.045
0.053
0.085
0.096
0.026 TYP
0.047
0.055
0.021 REF
0.010
0.018
0°
8°
SOT-323 Suggested Pad Layout
NOTICE
JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other
changes without further notice to any product herein. JSCJ does not assume any liability arising
out of the application or use of any product described herein.
www.jscj-elec.com
8
Rev. - 2.1
SOT-323 Tape and Reel
www.jscj-elec.com
9
Rev. - 2.1
-3L
Symbol
A
A1
A2
b
c
D
E1
E
e
e1
L
Dimensions In Millimeters
Min.
Max.
1.050
1.250
0.000
0.100
1.050
1.150
0.300
0.500
0.100
0.200
2.820
3.020
1.500
1.700
2.650
2.950
0.950(BSC)
1.800
2.000
0.300
0.600
0°
8°
Dimensions In Inches
Min.
Max.
0.041
0.049
0.000
0.004
0.041
0.045
0.012
0.020
0.004
0.008
0.111
0.119
0.059
0.067
0.104
0.116
0.037(BSC)
0.071
0.079
0.012
0.024
0°
8°
-3L
NOTICE
JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other
changes without further notice to any product herein. JSCJ does not assume any liability arising
out of the application or use of any product described herein.
www.jscj-elec.com
10
Rev. - 2.1
SOT-23-3L Tape and Reel
www.jscj-elec.com
11
Rev. - 2.1
SOT-23 Package Outline Dimensions
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
Dimensions In Millimeters
Min
Max
0.900
1.150
0.000
0.100
0.900
1.050
0.300
0.500
0.080
0.150
2.800
3.000
1.200
1.400
2.250
2.550
0.950 TYP
1.800
2.000
0.550 REF
0.300
0.500
0°
8°
Dimensions In Inches
Min
Max
0.035
0.045
0.000
0.004
0.035
0.041
0.012
0.020
0.003
0.006
0.110
0.118
0.047
0.055
0.089
0.100
0.037 TYP
0.071
0.079
0.022 REF
0.012
0.020
0°
8°
SOT-23 Suggested Pad Layout
NOTICE
JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other
changes without further notice to any product herein. JSCJ does not assume any liability arising
out of the application or use of any product described herein.
www.jscj-elec.com
12
Rev. - 2.1
SOT-23 Tape and Reel
www.jscj-elec.com
13
Rev. - 2.1
Dimensions In Millimeters
Min.
Max.
1.420
1.620
0.660
0.860
0.330
0.480
0.400
0.510
0.330
0.510
3.900
4.100
2.280
2.680
3.050
3.250
1.270 TYP.
2.440
2.640
15.100
15.500
45° TYP.
Symbol
A
A1
b
b1
c
D
D1
E
e
e1
L
θ
Dimensions In Inches
Min.
Max.
0.056
0.064
0.026
0.034
0.013
0.019
0.016
0.020
0.013
0.020
0.154
0.161
0.090
0.106
0.120
0.128
0.050 TYP.
0.096
0.104
0.594
0.610
45° TYP.
NOTICE
JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other
changes without further notice to any product herein. JSCJ does not assume any liability arising
out of the application or use of any product described herein.
www.jscj-elec.com
14
Rev. - 2.1
www.jscj-elec.com
15
Rev. - 2.1
