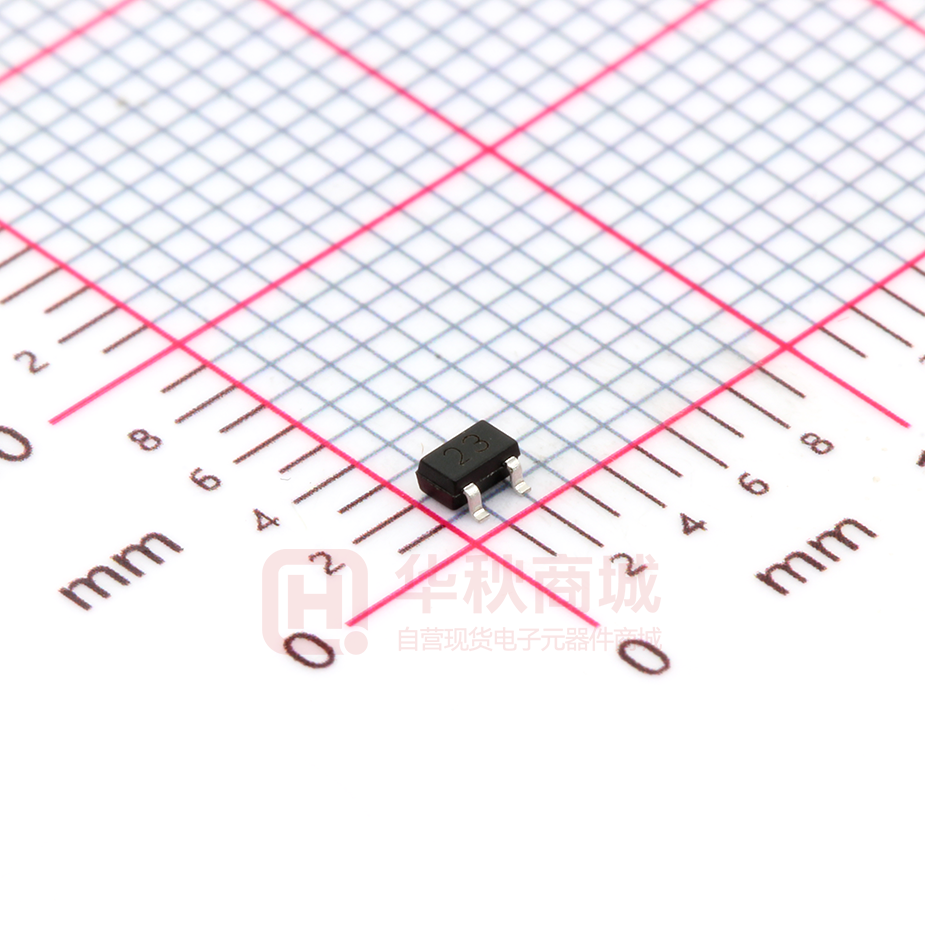

DTC143EUA

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD JC(T Digital Transistors (Built-in Resistors) DTC143EM/DTC143EE/DTC143EUA DTC143EKA /DTC143ECA/DTC143ESA ·Equivalent Circuit DIGITAL TRANSISTOR (NPN) FEATURES  Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)  The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input.They also have the advantage of almost completely eliminating parasitic effects  Only the on/off conditions need to be set for operation, making device design easy PIN CONNENCTIONS and MARKING DTC143EM DTC143EE SOT-723 1. IN 1. IN 2. GND 2. GND 3. OUT 3. OUT MARKING:23 DTC143EUA MARKING: 23 DTC143EKA SOT-323 SOT-23-3L 1. IN 1. IN 2. GND 2. GND 3. OUT 3. OUT MARKING: 23 DTC143ECA SOT-523 MARKING: 23 SOT-23 DTC143ESA TO-92S 1. IN 1. GND 2. GND 2. OUT 3. OUT 3. IN MARKING: 23 www.cj-elec.com 2 F,Oct,2014 C,Mar,2012 MAXIMUM RATINGS(Ta=25℃ unless otherwise noted) Symbol Limits(DTC143E□) Parameter M E UA KA Unit CA SA VCC Supply Voltage VIN Input Voltage IO Output Current PD Power Dissipation Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55～+150 ℃ 100 150 50 V -10～+30 V 100 mA 200 200 200 300 mW ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Input voltage Output voltage Input current Symbol Conditions Min Typ Max VI(off) VCC=5V,IO=100µA VI(on) VO=0.3V,IO=20mA 3 V VO(on) IO/II=10mA/0.5mA 0.3 V VI=5V 1.8 mA VCC=50V,VI=0 0.5 μA kΩ II 0.5 V Output current IO(off) DC current gain GI Input resistance R1 3.29 4.7 6.11 Resistance ratio R2/R1 0.8 1 1.2 Transition frequency www.cj-elec.com Unit fT VO=5V,IO=10mA VO=10V,IO=5mA,f=100MHz 2 20 250 MHz F,Oct,2014 C,Mar,2012 Typical Characteristics ON Characteristics OFF Characteristics 100 10 VO=0.3V 3 (mA) (V) 30 Ta=100℃ 1 OUTPUT CURRENT INPUT VOLTAGE IO VI(ON) 10 3 Ta=25℃ Ta=100℃ 1 Ta=25℃ 0.3 0.1 0.03 0.3 0.1 0.1 0.3 1 10 3 OUTPUT CURRENT VO(ON) —— 1000 IO VCC=5V 0.01 0.6 100 30 0.8 (mA) 1.0 1.2 INPUT VOLTAGE VI(OFF) IO GI 1000 IO/II=20 —— 1.4 1.6 (V) IO VO=5V GI DC CURRENT GAIN OUTPUT VOLTAGE VO(ON) (mV) 300 300 Ta=100℃ 100 Ta=25℃ 100 Ta=100℃ 30 Ta=25℃ 10 30 3 10 1 10 3 OUTPUT CURRENT CO 10 —— 1 0.1 100 30 IO VR PD 400 10 3 OUTPUT CURRENT f=1MHz Ta=25℃ —— IO 30 100 125 150 (mA) Ta 350 CO PD (pF) (mW) 8 6 POWER DISSIPATION OUTPUT CAPACITANCE 1 0.3 (mA) 4 2 300 DTC143ESA 250 200 150 DTC143EUA/CA/KA DTC143EE DTC143EM 100 50 0 0 4 8 12 REVERSE BIAS VOLTAGE www.cj-elec.com 16 VR 0 20 (V) 0 25 50 75 AMBIENT TEMPERATURE 3 100 Ta (℃ ) F,Oct,2014 B,ul,2011 C,Mar,2012 Symbol A A1 b b1 c D E E1 e θ www.cj-elec.com 4 Dimensions In Millimeters Max. Min. 0.500 0.000 0.050 0.170 0.270 0.270 0.370 0.150 1.150 1.250 1.150 1.250 0.750 0.850 0.800TYP. 7° REF. Dimensions In Inches Min. Max. 0.020 0.000 0.002 0.007 0.011 0.011 0.015 0.006 0.045 0.049 0.045 0.049 0.030 0.033 0.031TYP. 7° REF. A,Jun,2014 F,Oct,2014 www.cj-elec.com 5 A,Jun,2014 F,Oct,2014 Symbol A A1 A2 b1 b2 c D E E1 e e1 L L1 θ www.cj-elec.com 6 Dimensions In Millimeters Min. Max. 0.700 0.900 0.000 0.100 0.700 0.800 0.150 0.250 0.250 0.350 0.100 0.200 1.500 1.700 0.700 0.900 1.450 1.750 0.500 TYP. 0.900 1.100 0.400 REF. 0.260 0.460 0° 8° Dimensions In Inches Min. Max. 0.028 0.035 0.000 0.004 0.028 0.031 0.006 0.010 0.010 0.014 0.004 0.008 0.059 0.067 0.028 0.035 0.057 0.069 0.020 TYP. 0.035 0.043 0.016 REF. 0.010 0.018 0° 8° A,Jun,2014 F,Oct,2014 www.cj-elec.com 7 A,Jun,2014 F,Oct,2014 Dimensions In Millimeters Min Max 0.900 1.100 0.000 0.100 0.900 1.000 0.200 0.400 0.080 0.150 2.000 2.200 1.150 1.350 2.150 2.450 0.650 TYP 1.200 1.400 0.525 REF 0.260 0.460 0° 8° Symbol A A1 A2 b c D E E1 e e1 L L1 θ www.cj-elec.com 8 Dimensions In Inches Min Max 0.035 0.043 0.000 0.004 0.035 0.039 0.008 0.016 0.003 0.006 0.079 0.087 0.045 0.053 0.085 0.096 0.026 TYP 0.047 0.055 0.021 REF 0.010 0.018 0° 8° A,Jun,2014 F,Oct,2014 www.cj-elec.com 9 A,Jun,2014 F,Oct,2014 Symbol A A1 A2 b c D E1 E e e1 L θ www.cj-elec.com 10 Dimensions In Millimeters Min Max 1.050 1.250 0.000 0.100 1.050 1.150 0.300 0.500 0.100 0.200 2.820 3.020 1.500 1.700 2.650 2.950 0.950(BSC) 1.800 2.000 0.300 0.600 0° 8° Dimensions In Inches Min Max 0.041 0.049 0.000 0.004 0.041 0.045 0.012 0.020 0.004 0.008 0.111 0.119 0.059 0.067 0.104 0.116 0.037(BSC) 0.071 0.079 0.012 0.024 0° 8° A,Jun,2014 F,Oct,2014 www.cj-elec.com 11 A,Jun,2014 F,Oct,2014 Symbol A A1 A2 b c D E E1 e e1 L L1 θ www.cj-elec.com 12 Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 6° A,Jun,2014 F,Oct,2014 www.cj-elec.com 13 A,Jun,2014 F,Oct,2014 Dimensions In Millimeters Min. Max. 1.420 1.620 0.660 0.860 0.330 0.480 0.400 0.510 0.330 0.510 3.900 4.100 2.280 2.680 3.050 3.250 1.270 TYP. 2.440 2.640 15.100 15.500 45° TYP. Symbol A A1 b b1 c D D1 E e e1 L θ www.cj-elec.com 14 Dimensions In Inches Min. Max. 0.056 0.064 0.026 0.034 0.013 0.019 0.016 0.020 0.013 0.020 0.154 0.161 0.090 0.106 0.120 0.128 0.050 TYP. 0.096 0.104 0.594 0.610 45° TYP. A,Jun,2014 F,Oct,2014 www.cj-elec.com 15 A,Jun,2014 F,Oct,2014
