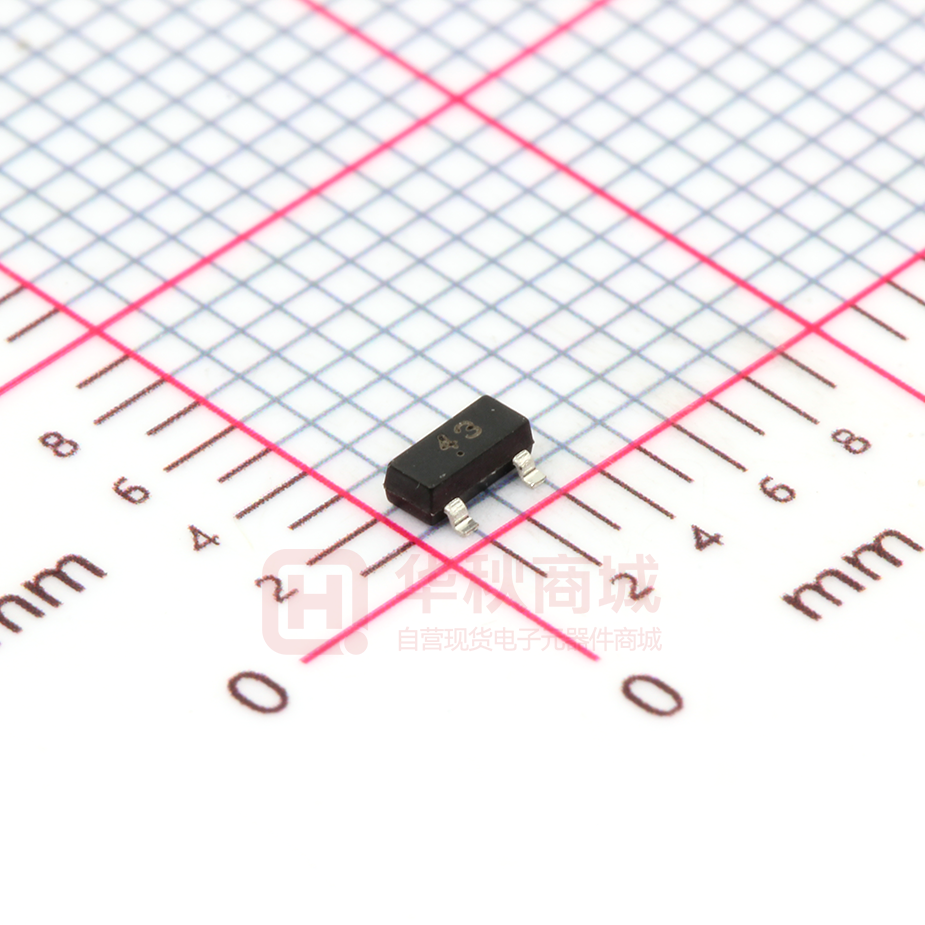

DTC143XCA

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD Digital Transistors (Built-in Resistors) JC(T DTC143XM/DTC143XE/DTC143XUA DTC143XKA /DTC143XCA/DTC143XSA ·Equivalent Circuit DIGITAL TRANSISTOR (NPN) FEATURES  Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)  The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input.They also have the advantage of almost completely eliminating parasitic effects  Only the on/off conditions need to be set for operation, making device design easy PIN CONNENCTIONS and MARKING DTC143XM SOT-723 3 DTC143XE SOT-523 3 1. IN 1. IN 2. GND 1 2. GND 3. OUT 2 DTC143XUA 3 2 SOT-323 SOT-23-3L DTC143XKA 3 1. IN 1. IN 2. GND 2. GND 3. OUT 1 2 3 1 www.cj-elec.com 3. OUT 1 2 DTC143XCA 3. OUT 1 SOT-23 TO-92S DTC143XSA 1. IN 1. GND 2. GND 2. OUT 3. OUT 3. IN 2 1 2 3 1 A,Jun,2014 H,Aug,2017   ORDERING INFORMATION Part Number     MARKING (1) Package Packing Method Pack Quantity DTC143XM 43 SOT-723 Reel 8000pcs/Reel DTC143XE 43 SOT-523 Reel 3000pcs/Reel DTC143XUA 43 SOT-323 Reel 3000pcs/Reel DTC143XKA 43 SOT-23-3L Reel 3000pcs/Reel DTC143XCA 43 SOT-23 Reel 3000pcs/Reel TO-92S Bulk 1000pcs/Bag TO-92S Tape 3000pcs/Box z z z z z DTC143XSA C143 (2) X XXX DTC143XSA-TA C143 X XXX z (2) z (1). Solid dot = Green molding compound device, if none, the normal device. Notes: (2). ;;; &RGH  MAXIMUM RATINGS(Ta=25℃ unless otherwise noted) Symbol Limits(DTC143X□) Parameter E M UA CA Unit KA SA VCC Supply Voltage VIN Input Voltage IO Output Current PD Power Dissipation Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55～+150 ℃ 100 150 50 V -7～+20 V 100 mA 200 200 200 300 mW ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Input voltage Output voltage Input current Symbol Conditions VI(off) VCC=5V,IO=100µA VI(on) VO=0.3V,IO=20mA VO(on) IO/II=10mA/0.5mA II Min Typ Max 0.3 V 2.5 V 0.3 V VI=5V 1.8 mA VCC=50V,VI=0 0.5 μA kΩ 0.1 Output current IO(off) DC current gain GI Input resistance R1 3.29 4.7 6.11 Resistance ratio R2/R1 1.7 2.1 2.6 Transition frequency www.cj-elec.com fT Unit VO=5V,IO=10mA VO=10V,IO=5mA,f=100MHz 2 30 250 MHz H,Aug,2017 Typical Characteristics OFF Characteristics ON Characteristics 100 10 VCC=5V (mA) 1 I0 10 OUTPUT CURRENT INPUT VOLTAGE VI(ON) (V) VO=0.3V Ta=25 ℃ 1 Ta=100 ℃ o Ta=25 C 0.1 Ta=100 ℃ 0.1 0.1 1 10 OUTPUT CURRENT 0.01 0.0 100 0.4 (mA) IO 0.8 INPUT VOLTAGE GI IO VO(ON) —— 1.2 1000 1.6 (V) VI(OFF) IO —— 1000 VO=5V OUTPUT VOLTAGE DC CURRENT GAIN GI 300 VO(ON) (mV) IO/II=20 Ta=100 ℃ 100 Ta=25 ℃ 100 Ta=100 ℃ Ta=25 ℃ 10 30 10 2 10 OUTPUT CURRENT CO 1 0.1 100 —— IO 1 (mA) 10 OUTPUT CURRENT VR PD 6 —— IO 100 (mA) Ta 400 f=1MHz Ta=25 ℃ (mW) DTC143XSA 300 PD 4 POWER DISSIPATION OUTPUT CAPACITANCE CO (pF) 5 3 2 DTC143XUA/CA/KA 200 DTC143XE DTC143XM 100 1 0 0 0 6 12 18 REVERSE VOLTAGE www.cj-elec.com 24 VR 30 0 25 50 75 AMBIENT TEMPERATURE (V) 3 100 Ta 125 150 (℃ ) H,Aug,2017 SOT-723 Package Outline Dimensions Symbol A A1 b b1 c D E E1 e θ Dimensions In Millimeters Min. Max. 0.430 0.500 0.000 0.050 0.170 0.270 0.270 0.370 0.080 0.150 1.150 1.250 1.150 1.250 0.750 0.850 0.800TYP. 7° REF. Dimensions In Inches Min. Max. 0.017 0.020 0.000 0.002 0.007 0.011 0.011 0.015 0.003 0.006 0.045 0.049 0.045 0.049 0.030 0.033 0.031TYP. 7° REF. SOT-723 Suggested Pad Layout www.cj-elec.com 4 H,Aug,2017 SOT-723 Tape and Reel www.cj-elec.com 5 H,Aug,2017 SOT-523 Package Outline Dimensions Symbol A A1 A2 b1 b2 c D E E1 e e1 L L1 θ Dimensions In Millimeters Min. Max. 0.700 0.900 0.000 0.100 0.700 0.800 0.150 0.250 0.250 0.350 0.100 0.200 1.500 1.700 0.700 0.900 1.450 1.750 0.500 TYP. 0.900 1.100 0.400 REF. 0.260 0.460 0° 8° Dimensions In Inches Min. Max. 0.028 0.035 0.000 0.004 0.028 0.031 0.006 0.010 0.010 0.014 0.004 0.008 0.059 0.067 0.028 0.035 0.057 0.069 0.020 TYP. 0.035 0.043 0.016 REF. 0.010 0.018 0° 8° SOT-523 Suggested Pad Layout www.cj-elec.com 6 H,Aug,2017 SOT-523 Tape and Reel www.cj-elec.com 7 H,Aug,2017 SOT-323 Package Outline Dimensions Dimensions In Millimeters Min Max 0.900 1.100 0.000 0.100 0.900 1.000 0.200 0.400 0.080 0.150 2.000 2.200 1.150 1.350 2.150 2.450 0.650 TYP 1.200 1.400 0.525 REF 0.260 0.460 0° 8° Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Inches Min Max 0.035 0.043 0.000 0.004 0.035 0.039 0.008 0.016 0.003 0.006 0.079 0.087 0.045 0.053 0.085 0.096 0.026 TYP 0.047 0.055 0.021 REF 0.010 0.018 0° 8° SOT-323 Suggested Pad Layout www.cj-elec.com 8 H,Aug,2017 SOT-323 Tape and Reel www.cj-elec.com 9 H,Aug,2017 -3L   Symbol A A1 A2 b c D E1 E e e1 L  Dimensions In Millimeters Max. Min. 1.050 1.250 0.000 0.100 1.050 1.150 0.300 0.500 0.100 0.200 2.820 3.020 1.500 1.700 2.650 2.950 0.950(BSC) 1.800 2.000 0.300 0.600 0° 8° Dimensions In Inches Min. Max. 0.041 0.049 0.000 0.004 0.041 0.045 0.012 0.020 0.004 0.008 0.111 0.119 0.059 0.067 0.104 0.116 0.037(BSC) 0.071 0.079 0.012 0.024 0° 8° -3L    www.cj-elec.com 10 H,Aug,2017 SOT-23-3L Tape and Reel www.cj-elec.com 11 H,Aug,2017 SOT-23 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° SOT-23 Suggested Pad Layout www.cj-elec.com 12 H,Aug,2017 SOT-23 Tape and Reel www.cj-elec.com 13 H,Aug,2017 Dimensions In Millimeters Min. Max. 1.420 1.620 0.660 0.860 0.330 0.480 0.400 0.510 0.330 0.510 3.900 4.100 2.280 2.680 3.050 3.250 1.270 TYP. 2.440 2.640 15.100 15.500 45° TYP. Symbol A A1 b b1 c D D1 E e e1 L θ www.cj-elec.com 14 Dimensions In Inches Min. Max. 0.056 0.064 0.026 0.034 0.013 0.019 0.016 0.020 0.013 0.020 0.154 0.161 0.090 0.106 0.120 0.128 0.050 TYP. 0.096 0.104 0.594 0.610 45° TYP. H,Aug,2017 www.cj-elec.com 15 H,Aug,2017
