JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD
Digital Transistors (Built-in Resistors)
DTC143ZM/DTC143ZE/DTC143ZUA
DTC143ZKA /DTC143ZCA/DTC143ZSA
·Equivalent Circuit
DIGITAL TRANSISTOR (NPN)
FEATURES
Built-in bias resistors enable the configuration of an inverter circuit
without connecting external input resistors(see equivalent circuit)
The bias resistors consist of thin-film resistors with complete isolation
to allow negative biasing of the input.They also have the advantage of
almost completely eliminating parasitic effects
Only the on/off conditions need to be set for operation, making device design easy
PIN CONNENCTIONS and MARKING
DTC143ZM
SOT-723
1. IN
2. GND
2. GND
3. OUT
3. OUT
MARKING: E23
SOT-323
DTC143ZKA
SOT-23-3L
1. IN
1. IN
2. GND
2. GND
3. OUT
3. OUT
MARKING: E23

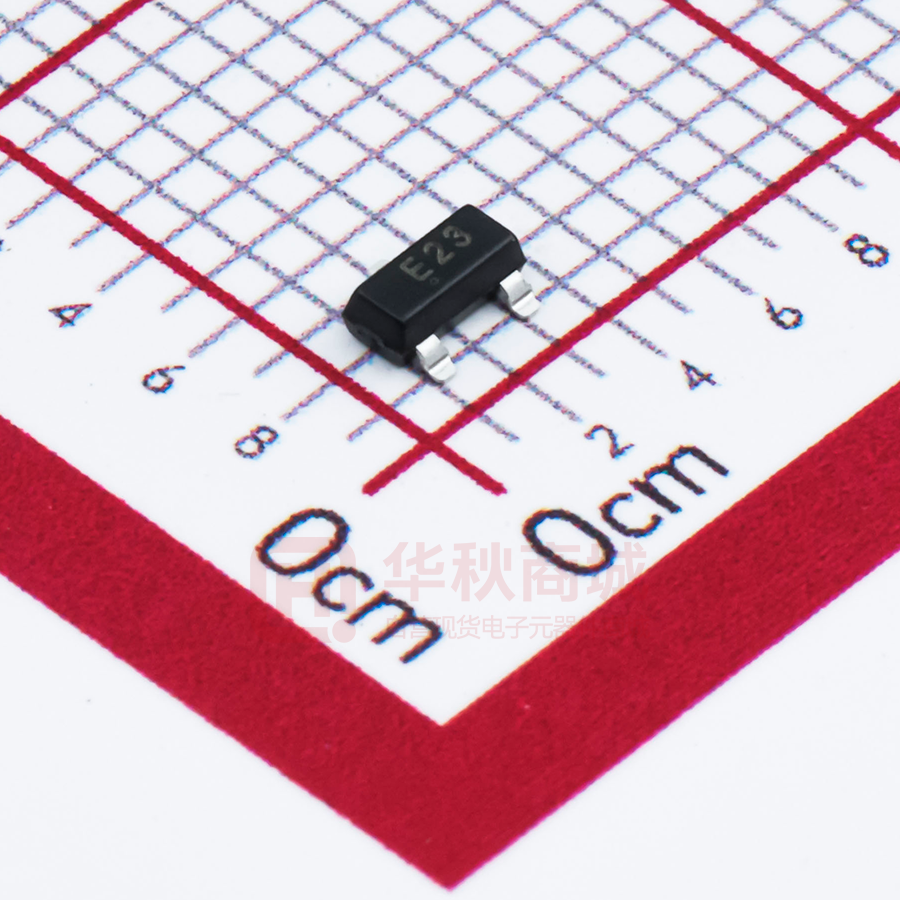

DTC143ZCA
SOT-523
1. IN
MARKING:E23
DTC143ZUA
DTC143ZE
MARKING: E23
SOT-23
DTC143ZSA
TO-92S
1. IN
1. GND
2. GND
2. OUT
3. OUT
3. IN
MARKING: E23
C,Mar,2012
D,Jun,2013
MAXIMUM RATINGS(Ta=25℃ unless otherwise noted)
Symbol
Limits(DTC143Z□)
Parameter
M
E
UA
Unit
CA
KA
SA
VCC
Supply Voltage
VIN
Input Voltage
IO
Output Current
PD
Power Dissipation
Tj
Junction Temperature
150
℃
Tstg
Storage Temperature
-55~+150
℃
100
150
50
V
-5~+30
V
100
mA
200
200
200
300
mW
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Parameter
Input voltage
Output voltage
Input current
Symbol
Conditions
VI(off)
VCC=5V,IO=100µA
VI(on)
VO=0.3V ,IO=5mA
VO(on)
IO/II=5mA/0.25mA
II
Min
Typ
Max
0.5
V
1.3
V
0.3
V
VI=5V
1.8
mA
VCC=50V,VI=0
0.5
μA
kΩ
0.1
Output current
IO(off)
DC current gain
GI
Input resistance
R1
3.29
4.7
6.11
Resistance ratio
R2/R1
8
10
12
Transition frequency
fT
Unit
VO=5V,IO=10mA
VO=10V ,IO=5mA,f=100MHz
80
250
MHz
C,Mar,2012
D,Jun,2013
Typical Characteristics
DTC143ZXX
ON Characteristics
OFF Characteristics
100
10
VO=0.3
VCC=5V
3
(V)
30
(mA)
1
OUTPUT CURRENT
INPUT VOLTAGE
IO
VI(ON)
10
3
Ta=25℃
1
Ta=100℃
0.3
Ta=100℃
Ta=25℃
0.1
0.03
0.01
0.3
3E-3
0.1
0.1
0.3
3
1
10
OUTPUT CURRENT
GI
——
IO
1E-3
0.2
100
30
0.4
0.6
INPUT VOLTAGE
(mA)
0.8
VI(OFF)
VO(ON) ——
IO
1.0
(V)
IO
1000
1000
IO/II=20
VO=5V
(mV)
300
300
VO(ON)
Ta=25℃
OUTPUT VOLTAGE
DC CURRENT GAIN
GI
Ta=100℃
100
30
10
100
Ta=100℃
Ta=25℃
30
3
1
0.1
1
0.3
OUTPUT CURRENT
CO
10
10
3
IO
10
0.1
100
30
PD
—— VR
10
3
OUTPUT CURRENT
——
IO
30
100
125
150
(mA)
Ta
400
f=1MHz
Ta=25℃
350
(mW)
250
POWER DISSIPATION
6
300
PD
CO
(pF)
8
OUTPUT CAPACITANCE
1
0.3
(mA)
4
2
DTC143ZSA
DTC143ZUA/CA/KA
200
150
DTC143ZE
DTC143ZM
100
50
0
0
0
4
8
12
REVERSE BIAS VOLTAGE
16
VR
(V)
20
0
25
50
75
AMBIENT TEMPERATURE
100
Ta
(℃ )
D,Jun,2013
