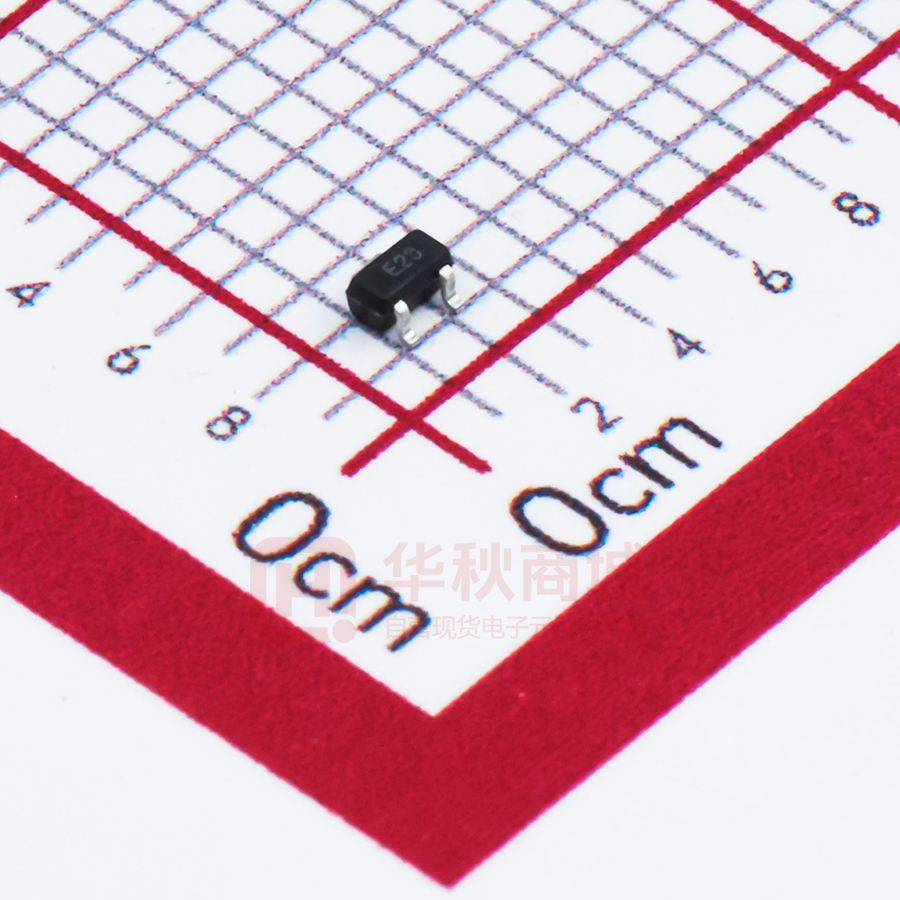

DTC143ZE

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD Digital Transistors (Built-in Resistors) JC(T DTC143ZM/DTC143ZE/DTC143ZUA DTC143ZKA /DTC143ZCA/DTC143ZSA ·Equivalent Circuit DIGITAL TRANSISTOR (NPN) FEATURES  Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)  The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input.They also have the advantage of almost completely eliminating parasitic effects  Only the on/off conditions need to be set for operation, making device design easy PIN CONNENCTIONS and MARKING DTC143ZM DTC143ZE SOT-723 3 SOT-523 3 1. IN 1. IN 2. GND 1 2. GND 3. OUT 2 2 MARKING:E23 MARKING: E23 DTC143ZUA 3 DTC143ZKA SOT-323 3 1. IN MARKING: E23 MARKING: E23 3 1 3. OUT 1 2 DTC143ZCA www.cj-elec.com 2. GND 3. OUT 1 SOT-23-3L 1. IN 2. GND MARKING: E23 3. OUT 1 SOT-23 DTC143ZSA 2 TO-92S 1. IN 1. GND 2. GND 2. OUT 3. OUT 3. IN 2 1 2 3 1 A,Jun,2014 F,Mar,2016 MAXIMUM RATINGS(Ta=25℃ unless otherwise noted) Symbol Limits(DTC143Z□) Parameter M E UA Unit CA KA SA VCC Supply Voltage VIN Input Voltage IO Output Current PD Power Dissipation Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55～+150 ℃ 100 150 50 V -5～+30 V 100 mA 200 200 200 300 mW ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Input voltage Output voltage Input current Symbol Conditions VI(off) VCC=5V,IO=100µA VI(on) VO=0.3V ,IO=5mA VO(on) IO/II=5mA/0.25mA II Min Typ Max 0.5 V 1.3 V 0.3 V VI=5V 1.8 mA VCC=50V,VI=0 0.5 μA kΩ 0.1 Output current IO(off) DC current gain GI Input resistance R1 3.29 4.7 6.11 Resistance ratio R2/R1 8 10 12 Transition frequency www.cj-elec.com fT Unit VO=5V,IO=10mA VO=10V ,IO=5mA,f=100MHz 2 80 250 MHz A,Jun,2014 F,Mar,2016 Typical Characteristics ON Characteristics OFF Characteristics 10 100 VO=0.3 VCC=5V 3 (V) 30 (mA) 1 OUTPUT CURRENT INPUT VOLTAGE IO VI(ON) 10 3 Ta=25℃ 1 Ta=100℃ 0.3 Ta=100℃ Ta=25℃ 0.1 0.03 0.01 0.3 3E-3 0.1 0.1 0.3 3 1 10 OUTPUT CURRENT GI —— IO 1E-3 0.2 100 30 0.4 0.6 INPUT VOLTAGE (mA) 0.8 VI(OFF) VO(ON) —— IO 1.0 (V) IO 1000 1000 IO/II=20 VO=5V (mV) 300 300 VO(ON) Ta=25℃ OUTPUT VOLTAGE DC CURRENT GAIN GI Ta=100℃ 100 30 10 100 Ta=100℃ Ta=25℃ 30 3 1 0.1 1 0.3 OUTPUT CURRENT CO 10 10 3 IO 10 0.1 100 30 PD —— VR 10 3 OUTPUT CURRENT —— IO 30 100 125 150 (mA) Ta 400 f=1MHz Ta=25℃ 350 (mW) 250 POWER DISSIPATION 6 300 PD CO (pF) 8 OUTPUT CAPACITANCE 1 0.3 (mA) 4 2 DTC143ZSA DTC143ZUA/CA/KA 200 150 DTC143ZE DTC143ZM 100 50 0 0 0 4 8 12 REVERSE BIAS VOLTAGE www.cj-elec.com 16 VR 20 0 (V) 25 50 75 AMBIENT TEMPERATURE 3 100 Ta (℃ ) A,Jun,2014 F,Mar,2016 SOT-723 Package Outline Dimensions Symbol A A1 b b1 c D E E1 e θ Dimensions In Millimeters Min. Max. 0.430 0.500 0.000 0.050 0.170 0.270 0.270 0.370 0.080 0.150 1.150 1.250 1.150 1.250 0.750 0.850 0.800TYP. 7° REF. Dimensions In Inches Min. Max. 0.017 0.020 0.000 0.002 0.007 0.011 0.011 0.015 0.003 0.006 0.045 0.049 0.045 0.049 0.030 0.033 0.031TYP. 7° REF. SOT-723 Suggested Pad Layout www.cj-elec.com 4 A,Jun,2014 F,Mar,2016 SOT-723 Tape and Reel www.cj-elec.com 5 A,Jun,2014 F,Mar,2016 SOT-523 Package Outline Dimensions Symbol A A1 A2 b1 b2 c D E E1 e e1 L L1 θ Dimensions In Millimeters Max. Min. 0.700 0.900 0.000 0.100 0.700 0.800 0.150 0.250 0.250 0.350 0.100 0.200 1.500 1.700 0.700 0.900 1.450 1.750 0.500 TYP. 0.900 1.100 0.400 REF. 0.260 0.460 0° 8° Dimensions In Inches Min. Max. 0.028 0.035 0.000 0.004 0.028 0.031 0.006 0.010 0.010 0.014 0.004 0.008 0.059 0.067 0.028 0.035 0.057 0.069 0.020 TYP. 0.035 0.043 0.016 REF. 0.010 0.018 0° 8° SOT-523 Suggested Pad Layout www.cj-elec.com 6 A,Jun,2014 F,Mar,2016 SOT-523 Tape and Reel www.cj-elec.com 7 A,Jun,2014 F,Mar,2016 SOT-323 Package Outline Dimensions Dimensions In Millimeters Min Max 0.900 1.100 0.000 0.100 0.900 1.000 0.200 0.400 0.080 0.150 2.000 2.200 1.150 1.350 2.150 2.450 0.650 TYP 1.200 1.400 0.525 REF 0.260 0.460 0° 8° Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Inches Min Max 0.035 0.043 0.000 0.004 0.035 0.039 0.008 0.016 0.003 0.006 0.079 0.087 0.045 0.053 0.085 0.096 0.026 TYP 0.047 0.055 0.021 REF 0.010 0.018 0° 8° SOT-323 Suggested Pad Layout www.cj-elec.com 8 A,Jun,2014 F,Mar,2016 SOT-323 Tape and Reel www.cj-elec.com 9 A,Jun,2014 F,Mar,2016 -3L   Symbol A A1 A2 b c D E1 E e e1 L  Dimensions In Millimeters Max. Min. 1.050 1.250 0.000 0.100 1.050 1.150 0.300 0.500 0.100 0.200 2.820 3.020 1.500 1.700 2.650 2.950 0.950(BSC) 1.800 2.000 0.300 0.600 0° 8° Dimensions In Inches Min. Max. 0.041 0.049 0.000 0.004 0.041 0.045 0.012 0.020 0.004 0.008 0.111 0.119 0.059 0.067 0.104 0.116 0.037(BSC) 0.071 0.079 0.012 0.024 0° 8° -3L    www.cj-elec.com 10 A,Jun,2014 F,Mar,2016 SOT-23-3L Tape and Reel www.cj-elec.com 11 A,Jun,2014 F,Mar,2016 SOT-23 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° SOT-23 Suggested Pad Layout www.cj-elec.com 12 A,Jun,2014 F,Mar,2016 SOT-23 Tape and Reel www.cj-elec.com 13 A,Jun,2014 F,Mar,2016 Dimensions In Millimeters Min. Max. 1.420 1.620 0.660 0.860 0.330 0.480 0.400 0.510 0.330 0.510 3.900 4.100 2.280 2.680 3.050 3.250 1.270 TYP. 2.440 2.640 15.100 15.500 45° TYP. Symbol A A1 b b1 c D D1 E e e1 L θ www.cj-elec.com 14 Dimensions In Inches Min. Max. 0.056 0.064 0.026 0.034 0.013 0.019 0.016 0.020 0.013 0.020 0.154 0.161 0.090 0.106 0.120 0.128 0.050 TYP. 0.096 0.104 0.594 0.610 45° TYP. A,Jun,2014 F,Mar,2016 www.cj-elec.com 15 A,Jun,2014 F,Mar,2016
