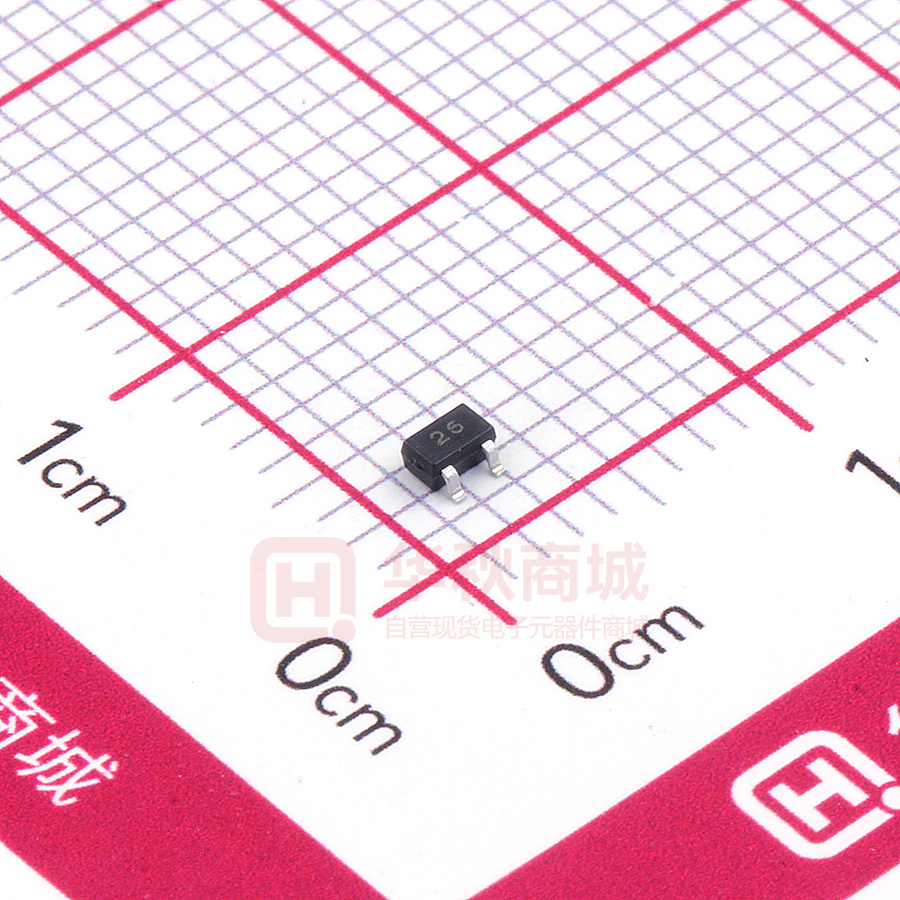

DTC144EUA

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD Digital Transistors (Built-in Resistors) JCET DTC144EM/DTC144EE/DTC144EUA DTC144EKA /DTC144ECA/DTC144ESA ·Equivalent Circuit DIGITAL TRANSISTOR (NPN) FEATURES  Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)  The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input.They also have the advantage of almost completely eliminating parasitic effects  Only the on/off conditions need to be set for operation, making device design easy PIN CONNENCTIONS and MARKING DTC144EM SOT-723 3 DTC144EE SOT-523 3 1. IN 1. IN 2. GND 1 2. GND 3. OUT 2 DTC144EUA 3 2 SOT-323 SOT-23-3L DTC144EKA 3 1. IN 1. IN 2. GND 2. GND 3. OUT 1 2 3 1 www.cj-elec.com 3. OUT 1 2 DTC144ECA 3. OUT 1 SOT-23 TO-92S DTC144ESA 1. IN 1. GND 2. GND 2. OUT 3. OUT 3. IN 2 1 2 3 1 H,Sep,2017   ORDERING INFORMATION Part Number     MARKING (1) Package Packing Method Pack Quantity DTC144EM 26 SOT-723 Reel 8000pcs/Reel DTC144EE 26 SOT-523 Reel 3000pcs/Reel DTC144EUA 26 SOT-323 Reel 3000pcs/Reel DTC144EKA 26 SOT-23-3L Reel 3000pcs/Reel DTC144ECA 26 SOT-23 Reel 3000pcs/Reel TO-92S Bulk 1000pcs/Bag TO-92S Tape 3000pcs/Box z z z z z DTC144ESA C144 (2) E XXX DTC144ESA-TA C144 E XXX z (2) z (1). Solid dot = Green molding compound device, if none, the normal device. Notes: (2). ;;; &RGH  MAXIMUM RATINGS(Ta=25℃ unless otherwise noted) Symbol Limits(DTC144E□) Parameter E M UA CA Unit KA SA VCC Supply Voltage VIN Input Voltage IO Output Current 30 mA ICM Peak Collector Current 100 mA PD Power Dissipation Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55～+150 ℃ 50 V V -10～+40 100 150 200 200 200 300 mW ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Input voltage Output voltage Input current Symbol Conditions Min Typ Max VI(off) VCC=5V,IO=100µA VI(on) VO=0.3V,IO=2mA 3 V VO(on) IO/II=10mA/0.5mA 0.3 V VI=5V 0.18 mA 0.5 μA kΩ II 0.5 V Output current IO(off) VCC=50V,VI=0 DC current gain GI VO=5V,IO=5mA Input resistance R1 32.9 47 61.1 Resistance ratio R2/R1 0.8 1 1.2 Transition frequency www.cj-elec.com Unit fT VO=10V,IO=5mA,f=100MHz 2 68 250 MHz H,Sep,2017 Typical Characteristics OFF Characteristics ON Characteristics 1 100 VCC=5V VO=0.3V 30 (mA) (V) 0.3 0.1 OUTPUT CURRENT INPUT VOLTAGE IO VI(ON) 10 3 Ta=25℃ Ta=100℃ 1 0.3 Ta=100℃ 0.03 Ta=25℃ 0.01 3E-3 0.1 0.1 0.3 1 3 OUTPUT CURRENT IO VO(ON) —— 1E-3 0.0 30 10 0.4 (mA) 0.8 1.2 INPUT VOLTAGE VI(OFF) GI IO 1000 1.6 IO —— 1000 IO/II=20 VO=5V Ta=100℃ GI 300 DC CURRENT GAIN VO(ON) (mV) 300 OUTPUT VOLTAGE 2.0 (V) 100 Ta=100℃ Ta=25℃ 30 Ta=25℃ 100 30 10 3 10 0.5 1 OUTPUT CURRENT CO 30 10 3 —— IO 1 0.1 50 1 PD VR 10 3 OUTPUT CURRENT IO 30 100 125 150 (mA) —— Ta 400 8 f=1MHz Ta=25℃ (mW) 350 CO POWER DISSIPATION PD (pF) 6 CAPACITANCE 0.3 (mA) 4 2 DTC144ESA 300 250 DTC144EUA/CA/KA 200 DTC144EE 150 DTC144EM 100 50 0 0 0 5 10 REVERSE BIAS VOLTAGE www.cj-elec.com 15 VR 20 0 (V) 25 50 75 AMBIENT TEMPERATURE 3 100 Ta (℃ ) H,Sep,2017 SOT-723 Package Outline Dimensions Symbol A A1 b b1 c D E E1 e θ Dimensions In Millimeters Min. Max. 0.430 0.500 0.000 0.050 0.170 0.270 0.270 0.370 0.080 0.150 1.150 1.250 1.150 1.250 0.750 0.850 0.800TYP. 7° REF. Dimensions In Inches Min. Max. 0.017 0.020 0.000 0.002 0.007 0.011 0.011 0.015 0.003 0.006 0.045 0.049 0.045 0.049 0.030 0.033 0.031TYP. 7° REF. SOT-723 Suggested Pad Layout www.cj-elec.com 4 H,Sep,2017 SOT-723 Tape and Reel www.cj-elec.com 5 H,Sep,2017 SOT-523 Package Outline Dimensions Symbol A A1 A2 b1 b2 c D E E1 e e1 L L1 θ Dimensions In Millimeters Max. Min. 0.700 0.900 0.000 0.100 0.700 0.800 0.150 0.250 0.250 0.350 0.100 0.200 1.500 1.700 0.700 0.900 1.450 1.750 0.500 TYP. 0.900 1.100 0.400 REF. 0.260 0.460 0° 8° Dimensions In Inches Min. Max. 0.028 0.035 0.000 0.004 0.028 0.031 0.006 0.010 0.010 0.014 0.004 0.008 0.059 0.067 0.028 0.035 0.057 0.069 0.020 TYP. 0.035 0.043 0.016 REF. 0.010 0.018 0° 8° SOT-523 Suggested Pad Layout www.cj-elec.com 6 H,Sep,2017 SOT-523 Tape and Reel www.cj-elec.com 7 H,Sep,2017 SOT-323 Package Outline Dimensions Dimensions In Millimeters Min Max 0.900 1.100 0.000 0.100 0.900 1.000 0.200 0.400 0.080 0.150 2.000 2.200 1.150 1.350 2.150 2.450 0.650 TYP 1.200 1.400 0.525 REF 0.260 0.460 0° 8° Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Inches Min Max 0.035 0.043 0.000 0.004 0.035 0.039 0.008 0.016 0.003 0.006 0.079 0.087 0.045 0.053 0.085 0.096 0.026 TYP 0.047 0.055 0.021 REF 0.010 0.018 0° 8° SOT-323 Suggested Pad Layout www.cj-elec.com 8 H,Sep,2017 SOT-323 Tape and Reel www.cj-elec.com 9 H,Sep,2017 -3L   Symbol A A1 A2 b c D E1 E e e1 L  Dimensions In Millimeters Max. Min. 1.050 1.250 0.000 0.100 1.050 1.150 0.300 0.500 0.100 0.200 2.820 3.020 1.500 1.700 2.650 2.950 0.950(BSC) 1.800 2.000 0.300 0.600 0° 8° Dimensions In Inches Min. Max. 0.041 0.049 0.000 0.004 0.041 0.045 0.012 0.020 0.004 0.008 0.111 0.119 0.059 0.067 0.104 0.116 0.037(BSC) 0.071 0.079 0.012 0.024 0° 8° -3L    www.cj-elec.com 10 H,Sep,2017 SOT-23-3L Tape and Reel www.cj-elec.com 11 H,Sep,2017 SOT-23 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° SOT-23 Suggested Pad Layout www.cj-elec.com 12 H,Sep,2017 SOT-23 Tape and Reel www.cj-elec.com 13 H,Sep,2017 Dimensions In Millimeters Min. Max. 1.420 1.620 0.660 0.860 0.330 0.480 0.400 0.510 0.330 0.510 3.900 4.100 2.280 2.680 3.050 3.250 1.270 TYP. 2.440 2.640 15.100 15.500 45° TYP. Symbol A A1 b b1 c D D1 E e e1 L θ www.cj-elec.com 14 Dimensions In Inches Min. Max. 0.056 0.064 0.026 0.034 0.013 0.019 0.016 0.020 0.013 0.020 0.154 0.161 0.090 0.106 0.120 0.128 0.050 TYP. 0.096 0.104 0.594 0.610 45° TYP. H,Sep,2017 www.cj-elec.com 15 H,Sep,2017
