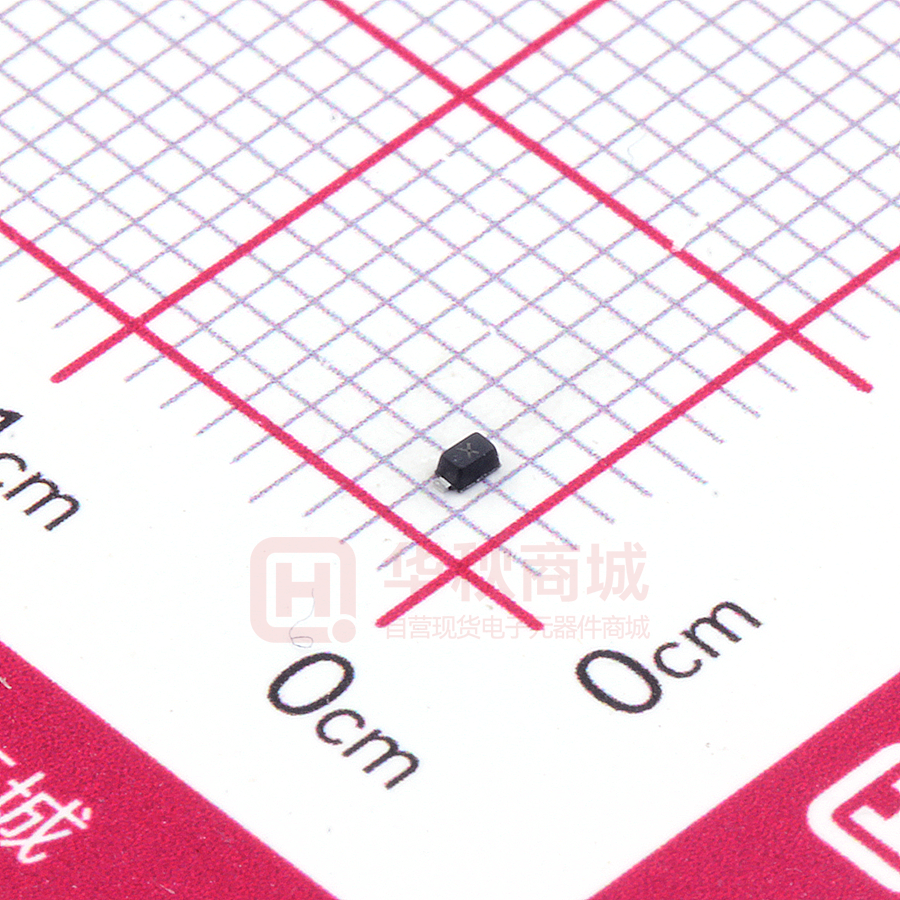

ESDBL3V3D5

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-523 Plastic-Encapsulate Diodes ESDBL3 V3 D5 Bi-direction ESD Protection Diode DESCRIPTION SOD-523 Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, low capacitance, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, low capacitance, and high level of ESD protection makes them a flexible solution for applications such as HDMI, Display Port TM, and MDDI interfaces. It is designed to replace multiplayer varistors (MLV) in consumer equipments applications such as mobile phone, notebook, PAD, STB, LCD TV etc. FEATURES z Bi-directional ESD protection of one line z Excellent package:1.20mm×0.80mm×0.60mm z Low capacitance: 15pF(TYP.) z Fast response time z Reverse stand−off voltage: 3.3V z JESD22-A114-B ESD Rating of class 3B per human z Low reverse clamping voltage z Low leakage current body model z IEC 61000-4-2 Level 4 ESD protection APPLICATIONS  Computers and peripherals  Portable electronics  High speed data lines  FireWire  Audio and video equipment  Other electronics equipments communi-  Cellular handsets and accessories  Subscriber identity module(SIM) card protection cation systems MARKING X X = Device code Front side www.jscj-elec.com 1 Rev. - 2.0 ESDBL3V3D5 ESDLJ12VY1 CHANGJING ELEC.TECH. MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Parameter Symbol Air Model IEC 61000-4-2 ESD Voltage Contact Model JESD22-A114-B ESD Voltage Per Human Body Model Peak Pulse Power VESD(1) Operation Junction and Storage Temperature Range kV ±0.4 (2) 70 W (2) 7 A TL 260 ℃ TJ,Tstg -55 ~ +150 ℃ IPP Lead Solder Temperature − Maximum (10 Second Duration) ±25 ±16 PPP Peak Pulse Current Unit ±25 Machine Model ESD Voltage Limit (1).Device stressed with ten non-repetitive ESD pulses. (2).Non-repetitive current pulse 8/20µs exponential decay waveform according to IEC61000-4-5. ESD standards compliance IEC61000-4-2 Standard JESD22-A114-B Standard Contact Discharge Air Discharge ESD Class Human Body Discharge V Level Test Voltage kV Level Test Voltage kV 0 0～249 1 2 1 2 2 4 2 4 1A 1B 1C 250～499 500～999 1000～1999 3 6 3 8 4 8 4 15 2 3A 3B 2000～3999 4000～7999 8000～15999 ESD pulse waveform according to IEC61000-4-2 www.jscj-elec.com 8/20μs pulse waveform according to IEC 61000-4-5 2 Rev. - 2.0 ESDBL3V3D5 CHANGJING ELEC.TECH. ELECTRICAL PARAMETER Symbol Parameter VC Clamping Voltage @ IPP IPP Peak Pulse Current VBR Breakdown Voltage @ IT IT Test Current IR Reverse Leakage Current @ VRWM VRWM Reverse Standoff Voltage V-I characteristics for a Bi-directional TVS ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified) Parameter Reverse stand off voltage Reverse leakage current Breakdown voltage Clamping voltage Junction capacitance Test conditions Symbol Min Typ （1 ） VRWM IR V(BR) （2） VC CJ VRWM=3.3V IT=1mA 4 IPP=7A VR=0V,f=1MHz 15 Max Unit 3.3 V 0.4 μA 6 V 10 V 20 pF (1).Other voltages available upon request. (2).Non-repetitive current pulse 8/20μs exponential decay waveform according to IEC61000-4-5 www.jscj-elec.com 3 Rev. - 2.0 ESDBL3V3D5 CHANGJING ELEC.TECH. TYPICAL CHARACTERISTICS Reverse Capacitance Characteristics Characteristics 100 25 Pulsed Ta=25℃ 80 f=1MHz 20 40 JUNCTION CAPACITANCE CJ (pF) REVERSE CURRENT IR (mA) 60 Ta=25℃ 20 0 Ta=100℃ -20 -40 -60 15 10 5 -80 -100 -6 -5 -4 -3 -2 -1 0 REVERSE VOLTAGE VC —— 1 2 VR 3 4 5 0 0.0 6 (V) 0.5 1.0 1.5 REVERSE VOLTAGE 2.0 VR 2.5 3.0 3.3 (V) IPP 16 Ta=25℃ CLAMPING VOLTAGE VC(V) tp=8/20us 12 8 4 0 0 2 4 6 8 10 REVERSE PEAK PULSE CURRENT IPP(A) www.jscj-elec.com 4 Rev. - 2.0 ESDBL3V3D5 CHANGJING ELEC.TECH. PACKAGE OUTLINE AND PAD LAYOUT INFORMATION 62'3DFNDJH2XWOLQH'LPHQVLRQV 6\PERO A A1 b c D E E1 E2 L  'LPHQVLRQV,Q0LOOLPHWHUV 0LQ 0D[ 0.510 0.770 0.500 0.700 0.250 0.350 0.080 0.150 0.750 0.850 1.100 1.300 1.500 1.700 0.200 REF 0.010 0.070 7° REF 'LPHQVLRQV,Q,QFKHV 0LQ 0D[ 0.020 0.031 0.020 0.028 0.010 0.014 0.003 0.006 0.030 0.033 0.043 0.051 0.059 0.067 0.008 REF 0.001 0.003 7° REF 62'6XJJHVWHG3DG/D\RXW NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 5 Rev. - 2.0 ESDBL3V3D5 CHANGJING ELEC.TECH. TAPE AND REEL INFORMATION www.jscj-elec.com 6 Rev. - 2.0
