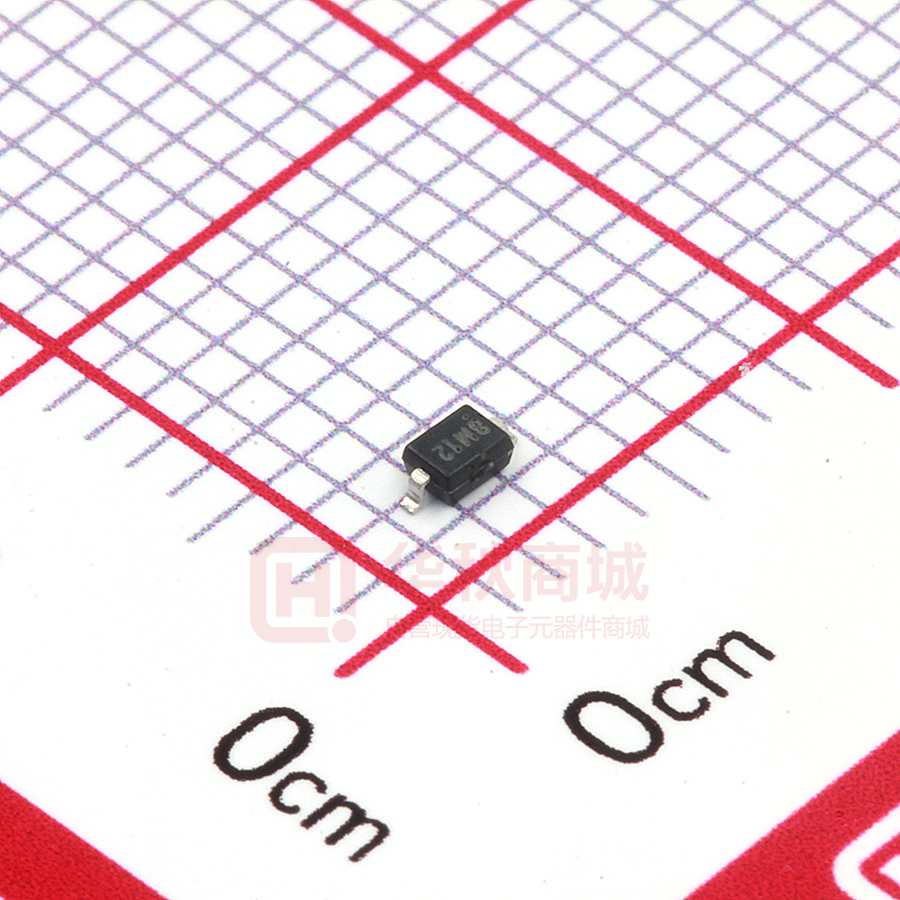

ESDBM12VD3

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-323 Plastic-Encapsulate Diodes ESDBM12VD3 Bi-direction ESD Protection Diode DESCRIPTION Designed to protect voltage sensitive electronic components from ESD and other SOD-323 transients. Excellent clamping capability, low leakage, low capacitance, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, low capacitance, and high level of ESD protection makes them a flexible solution for applications such as HDMI, Display Port TM, and MDDI interfaces. It is designed to replace multiplayer varistors (MLV) in consumer equipments applications such as mobile phone, notebook, PAD, STB, LCD TV etc. FEATURES z Bi-directional ESD protection of one line z Fast response time z Reverse stand−off voltage: 12 V z JESD22-A114-B ESD Rating of class 3B per human z Low reverse clamping voltage z Low leakage current z Excellent package:1.7mm×1.3mm×1.0mm body model z IEC 61000-4-2 Level 4 ESD protection APPLICATIONS z Computers and peripherals z Portable electronics z Digital cameras z Tablets z Audio and video equipment z Other electronics equipments communi- z Cellular handsets and accessories cation systems MARKING BM12 BM12=Device code Solid dot = Green molding compound device,if none, the normal device BM12 Front side www.jscj-elec.com 1 Rev. - 2.1 CHANGJING ELEC.TECH. ESDBM12VD3 MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Parameter Symbol IEC 61000-4-2 ESD Voltage Air Model Contact Model JESD22-A114-B ESD Voltage Per Human Body Model ESD Voltage (1) VESD Operation Junction and Storage Temperature Range kV ±16 (2) 224 W 8 A TL 260 ℃ TJ,Tstg -55 ~ +150 ℃ IPP Lead Solder Temperature − Maximum (10 Second Duration) ±25 ±0.4 PPP Peak Pulse Current Unit ±25 Machine Model Peak Pulse Power Limit (2) (1).Device stressed with ten non-repetitive ESD pulses. (2).Non-repetitive current pulse 8/20µs exponential decay waveform according to IEC61000-4-5. ESD standards compliance IEC61000-4-2 Standard JESD22-A114-B Standard Contact Discharge Air Discharge ESD Class Human Body Discharge V Level Test Voltage kV Level Test Voltage kV 0 0～249 1 2 1 2 2 4 2 4 1A 1B 1C 250～499 500～999 1000～1999 3 6 3 8 4 8 4 15 2 3A 3B 2000～3999 4000～7999 8000～15999 ESD pulse waveform according to IEC61000-4-2 www.jscj-elec.com 8/20μs pulse waveform according to IEC 61000-4-5 2 Rev. - 2.1 CHANGJING ELEC.TECH. ESDBM12VD3 ELECTRICAL PARAMETER Symbol Parameter VC Clamping Voltage @ IPP IPP Peak Pulse Current VBR Breakdown Voltage @ IT IT Test Current IR Reverse Leakage Current @ VRWM VRWM Reverse Standoff Voltage V-I characteristics for a Bi-directional TVS ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified) Parameter Symbol Reverse stand off voltage Reverse leakage current Test conditions Typ Max Unit 12 V 0.1 μA 16 V 26 28 V 18 30 pF VRWM IR VRWM=12V Breakdown voltage V(BR) = IT 1mA Clamping voltage VC Junction capacitance Min （1） （2） 13.3 IPP=8A = = CJ VR 0V,f 1MHz (1).Other voltages available upon request. (2).Non-repetitive current pulse 8/20μs exponential decay waveform according to IEC61000-4-5 www.jscj-elec.com 3 Rev. - 2.1 CHANGJING ELEC.TECH. ESDBM12VD3 TYPICAL CHARACTERISTICS Reverse Capacitance Characteristics Characteristics 25 100 80 20 40 JUNCTION CAPACITANCE CJ (pF) REVERSE CURRENT IR (mA) 60 20 0 -20 -40 -60 15 10 5 -80 -100 -20 -16 -12 -8 -4 0 4 REVERSE VOLTAGE VR 8 12 16 0 20 (V) 0 2 4 6 REVERSE VOLTAGE 8 VR 10 12 (V) 30 CLAMPING VOLTAGE VC(V) 27 24 21 18 15 0 2 4 6 8 10 REVERSE PEAK PULSE CURRENT IPP (A) www.jscj-elec.com 4 Rev. - 2.1 CHANGJING ELEC.TECH. PACKAGE OUTLINE AND PAD LAYOUT INFORMATION Dime imen nsio ion ns In M Miilli llim meters Min Mi n Maxx Ma 1.100 0. 0.000 000 0.100 1.000 0. 0.800 800 0. 0.250 250 0.350 0. 0.080 080 0.150 1. 1.200 200 1.400 1. 1.600 600 1.800 2.7 .7550 2. 2.500 500 0. 0.475 475 REF 0. 0.250 250 0.400 0° 8° Symbol A A1 A2 b c D E E1 L L1 θ Dim imeensions In In Incches Min Mi n Maxx Ma 0.0 .0443 0.00 0000 0.00 0044 0.03 .039 0.03 0311 0.01 0100 0.01 0144 0.00 0033 0.00 0066 0.04 0477 0.05 0555 0.06 0633 0.07 0711 0.09 0988 0.1 .1008 0. 0.019 019 REF 0.01 0100 0.01 0166 0° 8° NOTICE JSCJ reserve reservess the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 5 Rev. - 2.1 CHANGJING ELEC.TECH. ESDBM12VD3 TAPE AND REEL INFORMATION www.jscj-elec.com 6 Rev. - 2.1
