MA729

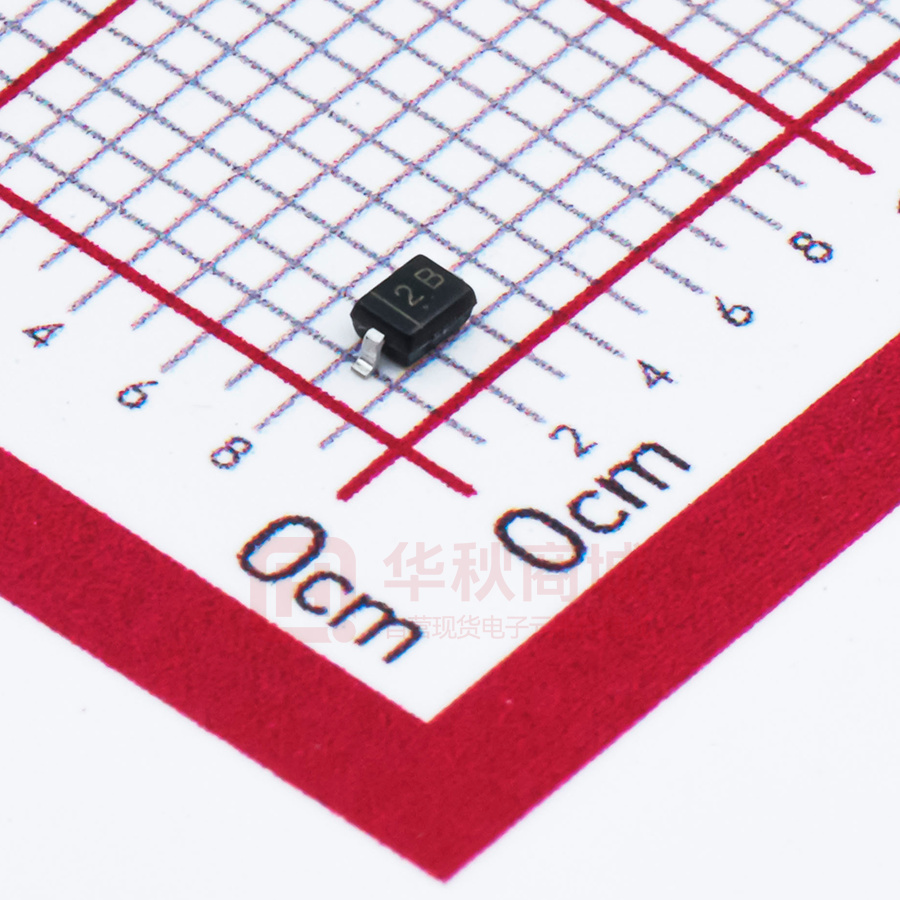

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOD-323 Plastic-Encapsulate Diodes MA729 SOD-323 SWITCHING DIODE FEATURES    For Small Current Rectification For Super High Speed Switching High-density Mounting is Possible MARKING: 2B MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Symbol VR VRRM IF Parameter Value Unit 30 V DC Blocking Voltage Repetitive Peak Reverse Voltage 30 V Forward Current 200 mA 1 A IFSM Non-repetitive Peak Forward Surge Current @ 10ms half sine wave PD Power Dissipation 200 mW Thermal Resistance from Junction to Ambient 500 ℃/W Tj Junction Temperature 125 ℃ Tstg Storage Temperature -55~+150 ℃ RθJA ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified) Parameter Reverse voltage Symbol V(BR) Reverse current IR VR=30V Forward voltage VF IF=200mA Total capacitance Ctot VR=0V,f=1MHz 30 pF IF= IR=100mA, Irr=0.1×IR, RL=100Ω 3 ns Reverse recovery time trr Test conditions IR=100μA Min 30 Typ Max Unit V 50 μA 0.55 V B,Jul,2012
