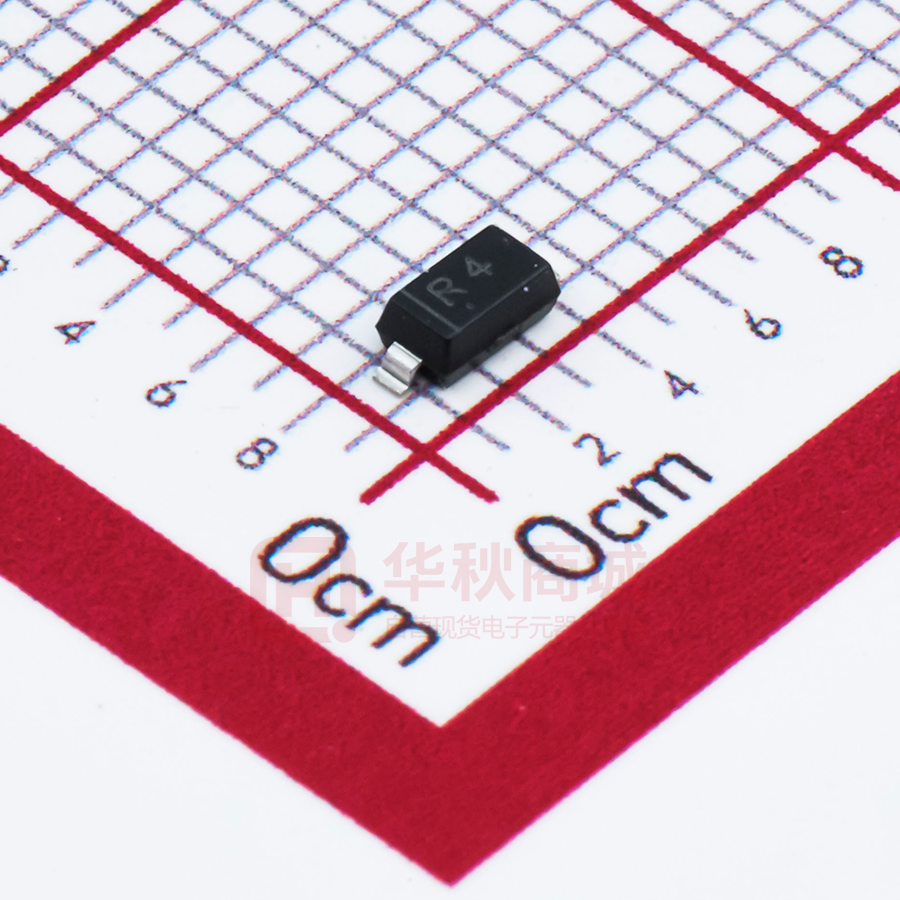

MBR0540

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-123 Plastic-Encapsulate Diodes MBR0520-MBR0580 SOD-123 Schottky Barrier Diode FEATURES z Lead Free Finish/RoHS Compliant z Extremely Low Thermal Resistance z For Surface Mount Application and High Current Capability MARKING: MBR0520:R2 MBR0530:R3 MBR0540:R4 MBR0560:R6 MBR0580:R8 The marking bar indicates the cathode Solid dot = Green molding compound device,if none, the normal device. Maximum Ratings @Ta=25℃ Parameter Symbol MBR MBR MBR MBR MBR 0520 0530 0540 0560 0580 20 14 0 30 21 3 40 28 4 0.5 60 42 80 56 Unit Maximum recurrent peak reverse voltage Maximum RMS voltage VRRM VRMS Mean rectifying current Non-repetitive Peak forward surge current @t= 8.3ms IO IFSM 5.5 A Power Dissipation Pd 410 mW Thermal Resistance Junction to Ambient RθJA 244 ℃/W Operating Junction Temperature Range Tj -40 ~ +125 -55 ~ +150 ℃ Tstg Storage Temperature Range www.jscj-elec.com 1 V A ℃ Rev. - 2.0 ELECTRICAL CHARACTERISTICS Ta =25 ℃ unless otherwise specified Parameter Forward voltage MBR0520 MBR0530 MBR0540 MBR0560 MBR0580 Symbol Typ. IR Capacitance between terminals CT Max. 0.45 0.55 0.55 0.70 0.80 VF Reverse current MBR0520 MBR0530 MBR0540 MBR0560 MBR0580 www.cj-elec.com Min. 80 30 2 Unit Conditions V IF=500mA μA pF VR=20V VR=30V VR=40V VR=60V VR=80V VR=4V, f=1MHZ Rev. - 2.0 Typical Characteristics Forward MBR0520 Characteristics Reverse 10000 100 1000 REVERSE CURRENT IR a 25 ℃ =1 00 ℃ 10 a T= T FORWARD CURRENT IF (uA) (mA) 500 1 Characteristics Ta=100℃ 100 10 Ta=25℃ 1 0.1 0 100 200 FORWARD VOLTAGE 300 VF 400 0.1 0.1 500 4 8 12 REVERSE VOLTAGE (mV) 16 VR 20 (V) Power Derating Curve 450 410 POWER DISSIPATION PD (mW) 360 270 180 90 0 0 25 50 75 AMBIENT TEMPERATURE www.jscj-elec.com 100 Ta 125 (℃ ) 3 Rev. - 2.0 SOD-123 Package Outline Dimensions Dimensions In Millimeters Min Max 1.250 1.050 0.000 0.100 1.050 1.150 0.450 0.650 0.080 0.150 1.500 1.700 2.600 2.800 3.550 3.850 0.500 REF 0.250 0.450 0° 8° Symbol A A1 A2 b c D E E1 L L1 θ Dimensions In Inches Min Max 0.041 0.049 0.000 0.004 0.041 0.045 0.018 0.026 0.003 0.006 0.059 0.067 0.102 0.110 0.140 0.152 0.020 REF 0.010 0.018 0° 8° SOD-123 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 4 Rev. - 2.0 SOD-123 Tape and Reel www.jscj-elec.com 5 Rev. - 2.0
