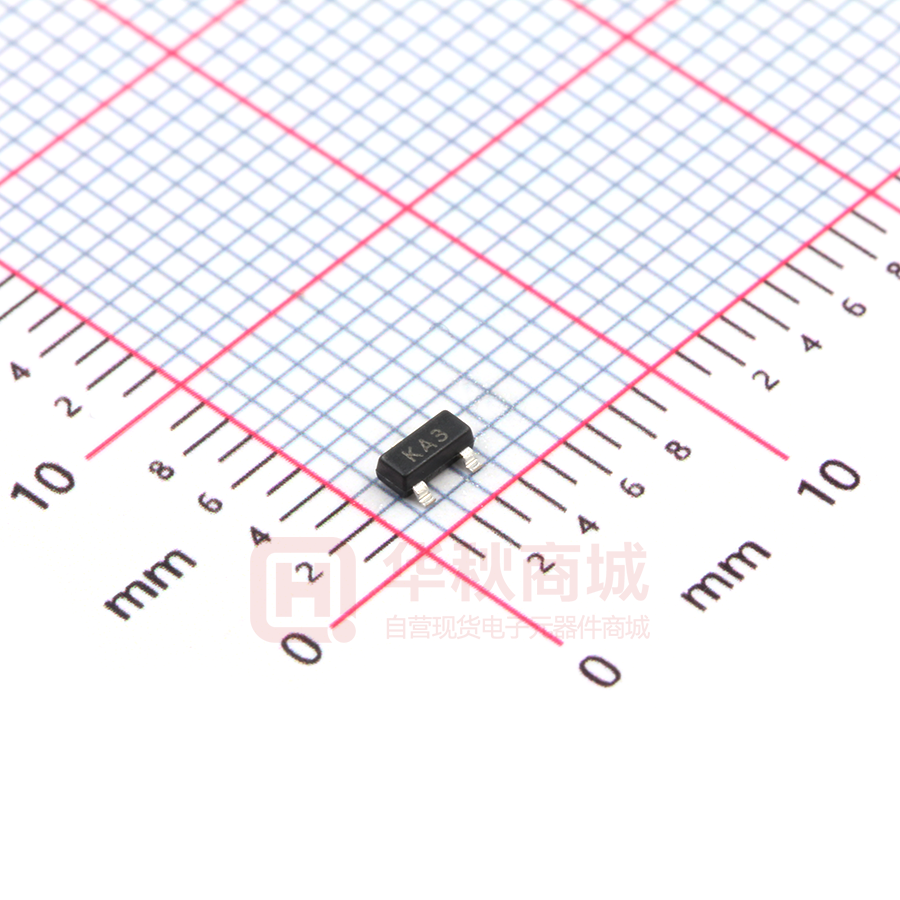

MMBD4448

MMBD4448

  • 厂商:

    JIANGSU(长晶)

  • 封装:

    SOT-23

  • 描述:

    SOT-23塑料封装二极管

  • 数据手册
  • 价格&库存
MMBD4448 数据手册
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-23 Plastic-Encapsulate Diodes MMBD4448 SWITCHING DIODE SOT-23 FEATURES z z z z Fast switching speed Surface mount package ideally suited for automatic insertion For general purpose switching applications High conductance 1. ANODE 1 2 3. CATHODE KA3 KA3 3 2. N, C MARKING: KA3 Solid dot = Green molding compound device, if none, the normal device Maximum Ratings and Electrical Characteristics, Single Diode @Ta=25 ℃ Parameter Symbol Limit Unit VRM 100 V 75 V Non-Repetitive Peak Reverse Voltage Peak Repetitive Peak Reverse Voltage VRRM Working Peak Reverse Voltage VRWM DC Blocking Voltage VR RMS Reverse Voltage VR(RMS) 53 V Forward Continuous Current IFM 500 mA Average Rectified Output Current IO 250 mA Non-Repetitive Peak Forward Surge Current @t=8.3ms IFSM 2.0 A Power Dissipation Pd 350 mW Thermal Resistance from Junction to Ambient RθJA 357 ℃K/W Storage Temperature TSTG -55 ~+150 ℃ Electrical Ratings @Ta=25℃ Parameter Symbol VF1 Min. Typ. Max. Unit Conditions 0.72 V IF=5mA VF2 0.855 V IF=10mA VF3 1.0 V IF=100mA VF4 1.25 V IF=150mA IR1 2.5 µA VR=75V IR2 25 nA VR=20V Capacitance between terminals CT 4 pF VR=0V,f=1MHz Reverse recovery time trr 4 ns Forward voltage Reverse current www.cj-elec.com 0.62 1 IF=IR=10mA Irr=0.1XIR,RL=100Ω B,Nov,2014 Typical Characteristics Forward Characteristics Reverse Characteristics 1000 300 100 (nA) 30 REVERSE CURRENT IR 10 T= a 2 5℃ T= a 1 00 ℃ FORWARD CURRENT Ta=100℃ 100 IF (mA) 300 3 1 30 10 Ta=25℃ 3 0.3 0.1 0.0 1 0.4 0.8 FORWARD VOLTAGE 1.2 VF 1.6 20 0 (V) 40 REVERSE VOLTAGE 60 80 (V) VR Power Derating Curve Capacitance Characteristics 400 1.4 Ta=25℃ (mW) 300 PD 1.3 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) f=1MHz 1.2 1.1 200 100 0 1.0 0 5 10 REVERSE VOLTAGE www.cj-elec.com 15 VR 0 20 25 50 75 AMBIENT TEMPERATURE (V) 2 125 100 Ta 150 (℃ ) B,Nov,2014   Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° SOT-23 Suggested Pad Layout  3 B,Nov,2014     4 B,Nov,2014
