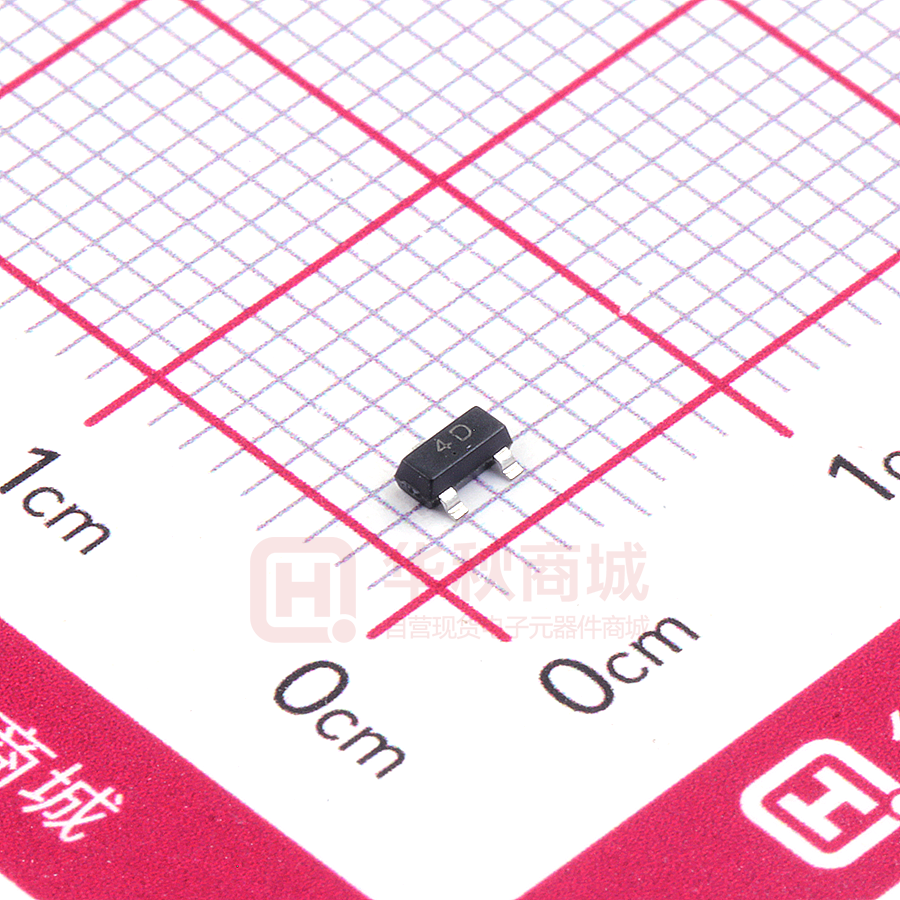

MMBTA94

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-23 Plastic-Encapsulate Transistors JC(T MMBTA94 TRANSISTOR (PNP) SOT–23 FEATURES  High Breakdown Voltage MARKING:4D MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter 1. BASE Value Unit VCBO Collector-Base Voltage -400 V VCEO Collector-Emitter Voltage -400 V VEBO Emitter-Base Voltage -5 V IC Collector Current -Continuous -200 mA ICM Collector Current -Pulsed -300 mA PC Collector Power Dissipation 350 mW Thermal Resistance From Junction To Ambient 357 ℃/W Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55～+150 ℃ RΘJA 2. EMITTER 3. COLLECTOR ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Symbol Test conditions Min Typ Max Unit Collector-base breakdown voltage V(BR)CBO IC=-100µA, IE=0 -400 V Collector-emitter breakdown voltage V(BR)CEO IC=-1mA, IB=0 -400 V Emitter-base breakdown voltage V(BR)EBO IE=-100µA, IC=0 -5 V Collector cut-off current ICBO VCB=-400V, IE=0 -0.1 µA Collector cut-off current ICEO VCE=-400V, IB=0 -5 µA Emitter cut-off current IEBO VEB=-4V, IC=0 -0.1 µA hFE(1) VCE=-10V, IC=-10mA 80 hFE(2) VCE=-10V, IC=-1mA 70 hFE(3) VCE=-10V, IC=-100mA 40 hFE(4) VCE=-10V, IC=-50mA 40 VCE(sat)1 IC=-10mA, IB=-1mA -0.2 V VCE(sat)2 IC=-50mA, IB=-5mA -0.3 V VBE(sat) IC=-10mA, IB=-1mA -0.75 V DC current gain Collector-emitter saturation voltage Base-emitter saturation voltage Transition frequency www.cj-elec.com fT VCE=-20V,IC=-10mA, f=30MHz 1 50 300 MHz D,Oct,2014 A,Jun,2014 Typical Characteristics Static Characteristic -20 IC -80uA COLLECTOR CURRENT o Ta=100 C hFE -90uA DC CURRENT GAIN (mA) VCE= -10V COMMON EMITTER Ta=25℃ -100uA -15 hFE —— IC -1000 -70uA -10 -60uA -50uA -40uA -100 o Ta=25 C -5 -30uA -20uA IB=-10uA -0 -0 -2 -4 -6 -8 -10 -12 -14 COLLECTOR-EMITTER VOLTAGE -16 VCE -10 -18 -20 -1 VBEsat —— IC -1000 VCEsat —— -10 COLLECTOR-EMITTER SATURATION VOLTAGE VCEsat (V) β=10 BASE-EMITTER SATURATION VOLTAGE VBEsat (mV) -10 COLLECTOR CURRENT (V) -800 Ta=25℃ -600 -400 Ta=100℃ IC (mA) -100 -200 -100 -200 IC β=10 -1 Ta=100℃ -0.1 Ta=25℃ -0.01 -200 -0 -0.1 -1E-3 -1 -10 -100 COLLECTOR CURRENT fT 60 —— IC -1 -200 (mA) -10 COLLECTOR CURRENT IC 1000 Cob / Cib —— IC (mA) VCB / VEB f=1MHz IE=0 / IC=0 o o C CAPACITANCE TRANSITION FREQUENCY 45 40 35 100 Cib 10 Cob 30 25 20 -0 -10 -20 -30 -40 COLLECTOR CURRENT Pc 400 COLLECTOR POWER DISSIPATION Pc (mW) Ta=25 C (pF) 50 fT (MHz) VCE=-20V Ta=25 C 55 —— IC -50 1 -0.1 -60 -1 REVERSE VOLTAGE (mA) -10 V -20 (V) Ta 350 300 250 200 150 100 50 0 0 25 50 75 AMBIENT TEMPERATURE www.cj-elec.com 100 Ta 125 150 (℃ ) 2 D,Oct,2014 A,Jun,2014 SOT-23 Package Outline Dimensions Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 6° SOT-23 Suggested Pad Layout www.cj-elec.com 3 D,Oct,2014 A,Jun,2014 SOT-23 Tape and Reel www.cj-elec.com 4 D,Oct,2014 A,Jun,2014
