MMSD914

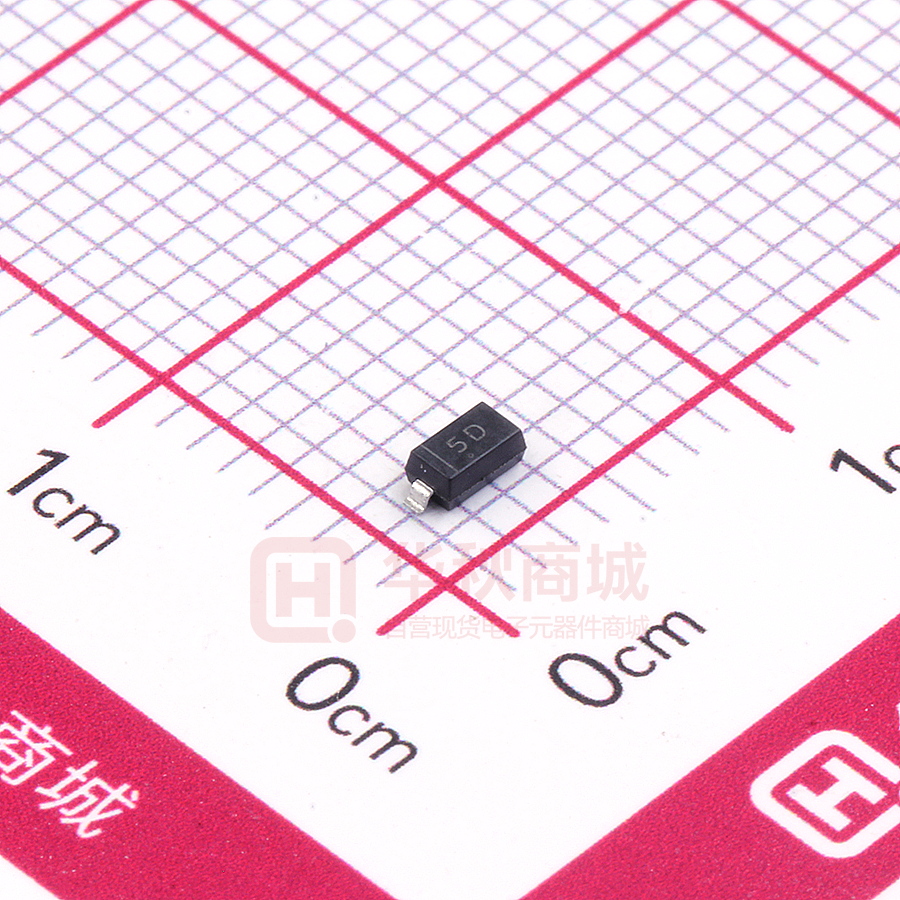

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-123 Plastic-Encapsulate Diodes MMSD914 SMALL SIGNAL DIODE SOD-123 FEATURES  High Voltage MARKING: 5D 5D 5D The marking bar indicates the cathode Solid dot = Green molding compound device, if none,the normal device. MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Symbol Parameter Value Unit 100 0.2 V VRRM IO Maximum Repetitive Reverse Voltage Forward Current IFSM Non-repetitive Peak Forward Surge Current @t= 8.3 ms PD Power Dissipation 400 mW Thermal Resistance from Junction to Ambient 312 ℃/W -55~+150 ℃ RθJA Tj ,Tstg Operation Junction and Storage Temperature Range A 2 ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified) Parameter Reverse voltage Symbol V(BR) Reverse current IR Forward voltage VF Total capacitance Ctot Reverse recovery time www.jscj-elec.com trr Test conditions Max Unit V VR=20V 25 nA VR=75V 5 μA IF=10mA 1 V VR=0V,f=1MHz 4 pF IF= IR=10mA, Irr=0.1×IR, RL=100Ω 4 ns IR=100μA 1 Min 100 Typ Rev. - 2.0 Typical Characteristics Forward 300 Characteristics (nA) REVERSE CURRENT IR 10 Ta =2 5℃ Ta =1 00 ℃ (mA) 30 IF FORWARD CURRENT Characteristics 3000 100 3 1 0.3 0.1 0.0 0.4 0.8 VF 300 100 Ta=25℃ 30 10 3 0 20 (V) 40 60 REVERSE VOLTAGE Capacitance Characteristics 1.6 Ta=100℃ 1000 1 1.6 1.2 FORWARD VOLTAGE (mW) Ta=25℃ f=1MHz VR 100 (V) 400 PD 1.4 80 Power Derating Curve 500 1.2 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) Reverse 10000 1.0 0.8 0.6 0 4 8 12 REVERSE VOLTAGE www.jscj-elec.com 16 VR 300 200 100 0 20 (V) 0 25 50 75 100 AMBIENT TEMPERATURE 2 125 Ta 150 (℃) Rev. - 2.0 SOD-123 Package Outline Dimensions Dimensions In Millimeters Min Max 1.050 1.250 0.000 0.100 1.050 1.150 0.450 0.650 0.080 0.150 1.500 1.700 2.600 2.800 3.550 3.850 0.500 REF 0.250 0.450 0° 8° Symbol A A1 A2 b c D E E1 L L1 θ Dimensions In Inches Min Max 0.049 0.041 0.000 0.004 0.041 0.045 0.018 0.026 0.003 0.006 0.059 0.067 0.102 0.110 0.140 0.152 0.020 REF 0.010 0.018 0° 8° SOD-123 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 2.0 SOD-123 Tape and Reel www.jscj-elec.com 4 Rev. - 2.0
