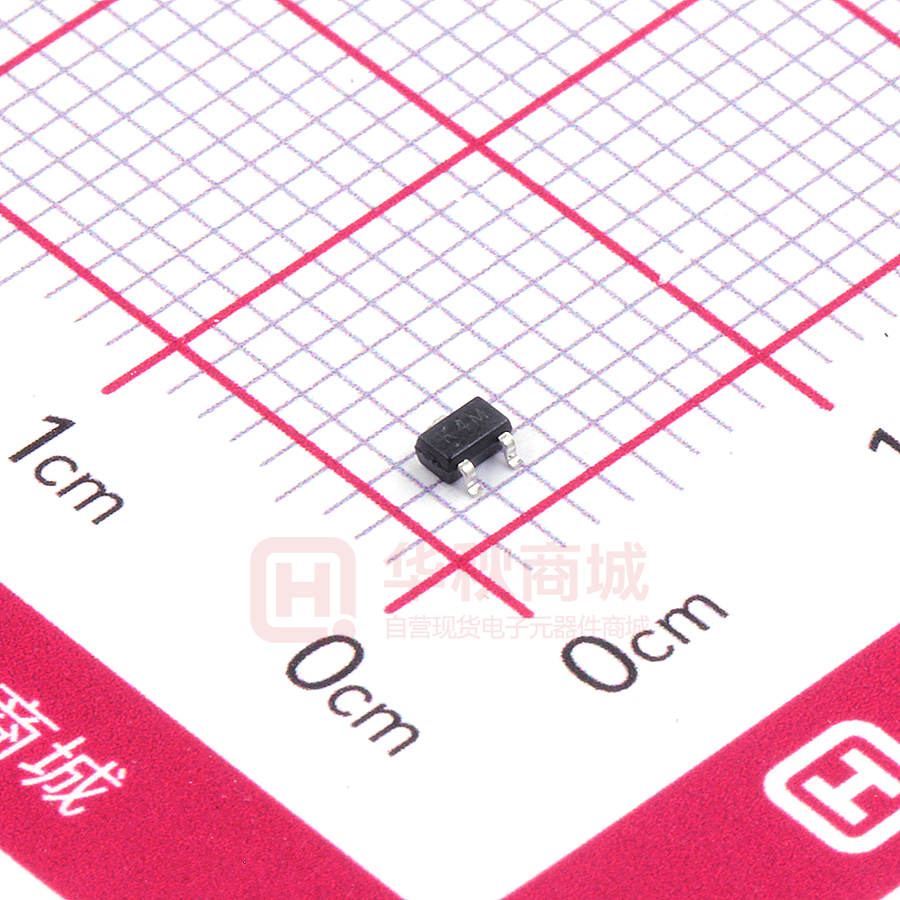

MMST5401

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-323 Plastic-Encapsulate Transistors JC(T MMST5401 TRANSISTOR (PNP) SOT–323 FEATURES  Complementary to MMST5551  Small Surface Mount Package  Ideal for Medium Power Amplificationand Switching MARKING:K4M 1. BASE 2. EMITTER MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter Value Unit VCBO Collector-Base Voltage -160 V VCEO Collector-Emitter Voltage -150 V VEBO Emitter-Base Voltage -5 V IC Collector Current -600 mA PC Collector Power Dissipation 200 mW Thermal Resistance From Junction To Ambient 625 ℃/W Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55～+150 ℃ RΘJA 3. COLLECTOR ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Symbol Test conditions Min Typ Max Unit Collector-base breakdown voltage V(BR)CBO IC=-100µA, IE=0 -160 V Collector-emitter breakdown voltage V(BR)CEO IC=-1mA, IB=0 -150 V Emitter-base breakdown voltage V(BR)EBO IE=-10µA, IC=0 -5 V Collector cut-off current ICBO VCB=-120V, IE=0 -50 nA Emitter cut-off current IEBO VEB=-3V, IC=0 -50 nA DC current gain hFE Collector-emitter saturation voltage VCE(sat) Base-emitter saturation voltage VBE(sat) Transition frequency Collector output capacitance www.cj-elec.com fT Cob VCE=-5V, IC=-1mA 50 VCE=-5V, IC=-10mA 60 VCE=-5V, IC=-50mA 50 300 IC=-50mA, IB=-5mA -0.5 V IC=-10mA, IB=-1mA -0.2 V IC=-50mA, IB=-5mA -1 V IC=-10mA, IB=-1mA -1 V VCE=-10V,IC=-10mA , f=100MHz VCB=-10V, IE=0, f=1MHz 1 100 MHz 6 pF C,Oct,2015 A,Jun,2014 Typical Characteristics hFE Static Characteristic COMMON EMITTER Ta=25℃ (mA) -16 IC -14 -0.08mA -12 -0.07mA -10 -0.06mA -8 -0.05mA DC CURRENT GAIN hFE -0.09mA -0.04mA -6 -4 300 250 Ta=100℃ 200 150 Ta=25℃ 100 -0.03mA -0.02mA -2 50 IB=-0.01mA -0 0 -0 -1 -2 -3 -4 -5 COLLECTOR-EMITTER VOLTAGE VBEsat -1000 —— -6 -7 VCE -8 -1 COLLECTOR CURRENT VCEsat IC COLLECTOR-EMITTER SATURATION VOLTAGE VCEsat (V) BASE-EMITTER SATURATION VOLTAGE VBEsat (mV) Ta=25℃ Ta=100℃ -400 -200 -1 -10 -100 COLLECTOR CURRENT IC -200 IC (mA) IC (mA) -100 -200 -100 -200 IC —— IC Ta=100℃ -0.1 Ta=25℃ -0.01 -200 -1 COLLECTOR CURRENT VBE fT 1000 TRANSITION FREQUENCY Ta=25℃ -1 -400 -600 -800 -1000 Ta=25℃ 100 10 1 -1 -1200 —— COLLECTOR CURRENT VCB/ VEB PC 250 100 COLLECTOR POWER DISSIPATION PC (mW) f=1MHz IE=0/IC=0 Ta=25℃ C (pF) Cib 10 Cob -1 REVERSE VOLTAGE -10 V -70 -10 BASE-EMMITER VOLTAGE VBE (mV) Cob/ Cib IC —— COMMON EMITTER VCE= -10V (MHz) fT (mA) IC Ta=100℃ -10 (mA) -10 www.cj-elec.com (mA) -1 COMMON EMITTER VCE=-5V 1 -0.1 IC β=10 -600 -0.1 -200 —— -10 -800 -100 -10 (V) β=10 COLLECTOR CURRENT IC COMMON EMITTER VCE=-5V 350 -0.1mA COLLECTOR CURRENT -18 CAPACITANCE —— 400 -20 —— Ta 200 150 100 50 0 -35 0 (V) 25 50 75 AMBIENT TEMPERATURE 2 100 Ta 125 150 ( ℃) C,Oct,2015 A,Jun,2014 SOT-323 Package Outline Dimensions Dimensions In Millimeters Min Max 0.900 1.100 0.000 0.100 0.900 1.000 0.200 0.400 0.080 0.150 2.000 2.200 1.150 1.350 2.150 2.450 0.650 TYP 1.200 1.400 0.525 REF 0.260 0.460 0° 8° Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Inches Min Max 0.035 0.043 0.000 0.004 0.035 0.039 0.008 0.016 0.003 0.006 0.079 0.087 0.045 0.053 0.085 0.096 0.026 TYP 0.047 0.055 0.021 REF 0.010 0.018 0° 8° SOT-323 Suggested Pad Layout www.cj-elec.com 3 C,Oct,2015 A,Jun,2014 SOT-323 Tape and Reel www.cj-elec.com 4 C,Oct,2015 A,Jun,2014
